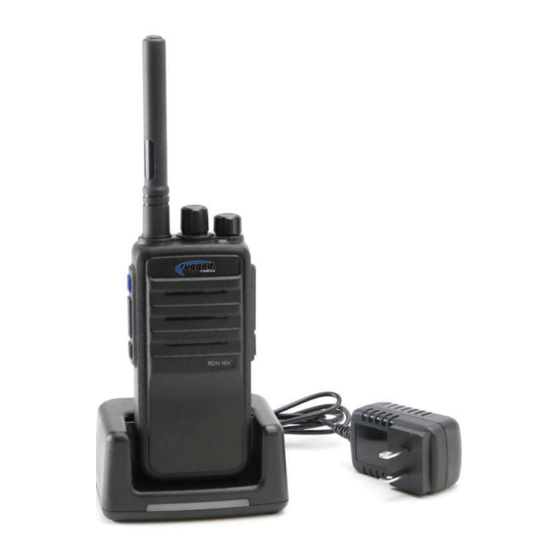

RDH-16 Digital Radio
U SER GUIDE
P.N. RDH-16V or RDH-16U
**NOTE: Your radio was pre-programmed and fully optimized before
shipping to you. You're not required to use the guide. Go out & play!
To power on the radio, twist the power knob clockwise. A short tone
followed by your current channel will confirm radio power is on.
Changing Channels:
Twist the channel knob clockwise to change channel up.
Twist the channel knob counterclockwise to change channel down.
Transmitting (TX):
Press and hold the [PTT] button on the left side of your device.
Release [PTT] button when finished transmitting.
Monitor a Channel (Analog Only)
Press the [M] button located on the left side of your
radio to temporarily disable/enable the preset squelch
function of the device and monitor for weak signals on
the selected channel.
Battery Indicator
Press and hold the blue Battery Indicator button.
3 Beeps indicates a Full Battery
2 Beeps indicates a Half Charged Battery
1 Beep indicates a Low Battery
Rugged Radios
|
www.ruggedradios.com
Antenna
Battery
Indicator
Push-to-Talk
(PTT)
Monitor
(M)
Channel Knob
Power/Volume Knob
LED Indicator Light
The indicator light
turns red during
transmit & turns
green when
receiving.
RDH-16V
|
888-541-7223
