Rugged Radios RRP6100 User Manual

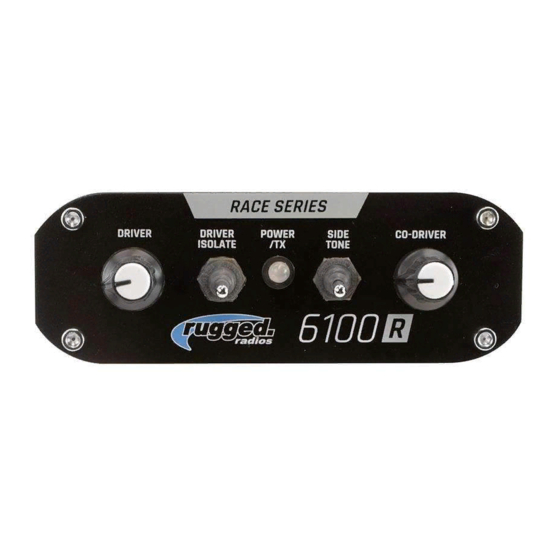

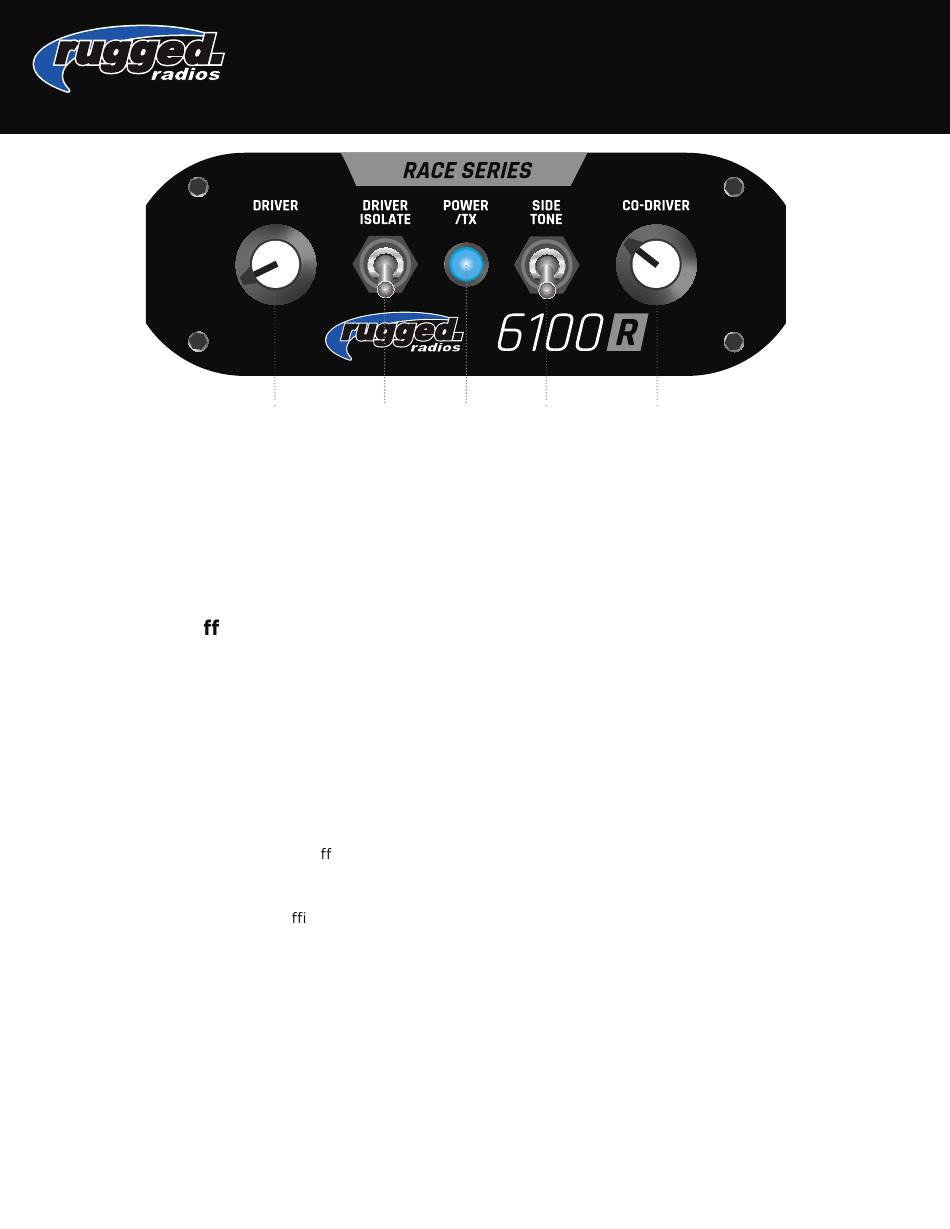

1. DRIVER VOLUME Controls driver volume
2. DRIVER ISOLATE Controls Driver Isolate function
3. POWER/TX Blue indicates power is on. Red indicates transmitting
4. SIDE TONE Controls Side Tone function
5. CO-DRIVER VOLUME Controls co-driver volume

INTERCOM OPERATION

Power On/O
Turn the Co-Driver Volume pot clockwise. You should feel a click and the intercom's LED
in the center should illuminate Blue.

Volume Control

Volume control is independently controlled for Driver and Co-Driver.
The left knob controls Driver listening volume and the right knob controls Co-Driver's listening volume.

Sidetone Switch

This function allows the users to hear themselves in their own helmets or headsets. This helps users
modulate their actual speaking volume to prevent unnecessary yelling into the mic. Switch position
up to activate and down to turn o .

Driver Isolate Switch

In the on position, all radio tra c is heard by co-driver only so the driver can concentrate
on driving. Both Driver and Co-Driver can transmit while this function is on.

PTT Function

Each PTT activates only one headset mic at a time. Driver PTT will activate the mic in the Driver
headset port and will not activate the Co-Driver headset port mic. The Co-Driver PTT activates
only the Co-Driver headset port mic. If during transmission you aren't transmitting your voice at all
or it is extremely quiet make sure you didn't accidentally plug into the wrong headset port or plug
in your PTT buttons in the wrong position.
