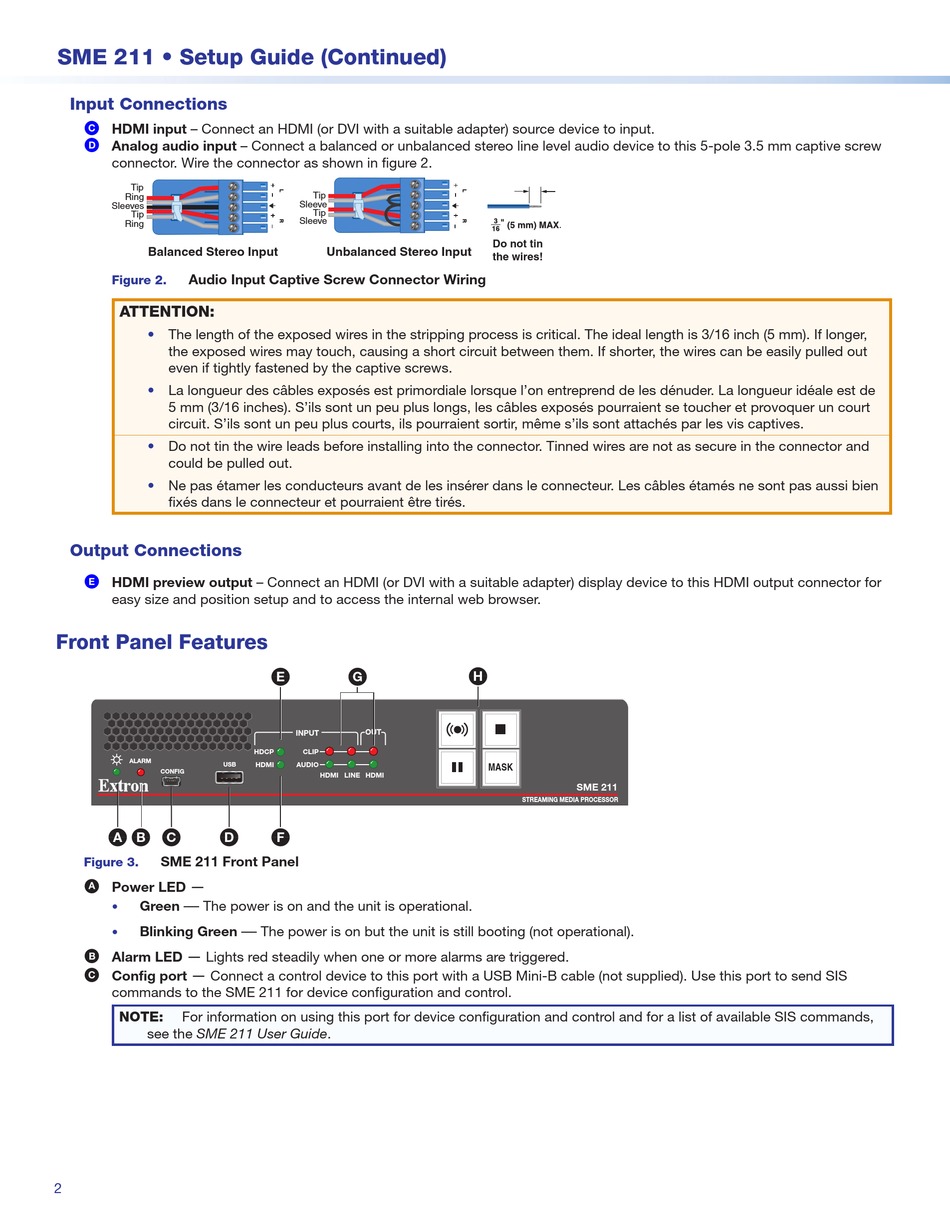

SME 211 • Setup Guide (Continued)

Input Connections

HDMI input – Connect an HDMI (or DVI with a suitable adapter) source device to input.
C
Analog audio input – Connect a balanced or unbalanced stereo line level audio device to this 5-pole 3.5 mm captive screw
D
connector. Wire the connector as shown in figure 2.
Tip
Ring
Sleeves
Tip
Ring
Balanced Stereo Input
Audio Input Captive Screw Connector Wiring
Figure 2.
ATTENTION:
• The length of the exposed wires in the stripping process is critical. The ideal length is 3/16 inch (5 mm). If longer,
the exposed wires may touch, causing a short circuit between them. If shorter, the wires can be easily pulled out
even if tightly fastened by the captive screws.
• La longueur des câbles exposés est primordiale lorsque l'on entreprend de les dénuder. La longueur idéale est de
5 mm (3/16 inches). S'ils sont un peu plus longs, les câbles exposés pourraient se toucher et provoquer un court
circuit. S'ils sont un peu plus courts, ils pourraient sortir, même s'ils sont attachés par les vis captives.
• Do not tin the wire leads before installing into the connector. Tinned wires are not as secure in the connector and
could be pulled out.
• Ne pas étamer les conducteurs avant de les insérer dans le connecteur. Les câbles étamés ne sont pas aussi bien
fixés dans le connecteur et pourraient être tirés.

Output Connections

HDMI preview output – Connect an HDMI (or DVI with a suitable adapter) display device to this HDMI output connector for
E
easy size and position setup and to access the internal web browser.

Front Panel Features

ALARM
USB
CONFIG
A B C D
SME 211 Front Panel
Figure 3.
—
Power LED
A
—
Green The power is on and the unit is operational.
•
Blinking Green
•
—
Alarm LED
B Lights red steadily when one or more alarms are triggered.
—
Config port Connect a control device to this port with a USB Mini-B cable (not supplied). Use this port to send SIS
C
commands to the SME 211 for device configuration and control.
NOTE: For information on using this port for device configuration and control and for a list of available SIS commands,
see the SME 211 User Guide.
2
Tip
Sleeve
Tip
Sleeve
Unbalanced Stereo Input
E G
OUT
INPUT
HDCP CLIP
HDMI AUDIO
HDMI LINE HDMI
F
—
The power is on but the unit is still booting (not operational).
Do not tin
the wires!
H
MASK
SME 211
STREAMING MEDIA PROCESSOR
