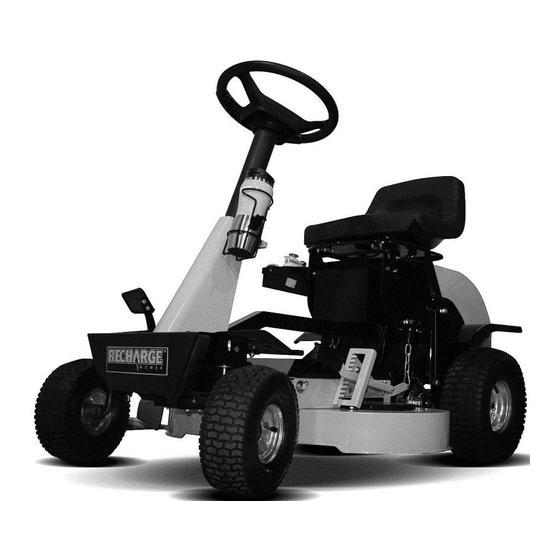

- Page 1 Electric Riding Lawn Mower Safety & Operating Instructions Recharge Mower® G2 IMPORTANT READ AND FOLLOW ALL INSTRUCTIONS OBSERVE SAFETY INSTRUCTIONS AND WARNINGS...
-
Page 2: Product Identification
Introduction Thank you for Purchasing the RECHARGE MOWER® G2. We appreciate having you as a customer and wish you many years of safe and satisfied use of this machine using clean and green electric power. Using your Operator’s Manual This manual is an important part of your electric lawn mower and should remain with the machine for quick reference. - Page 3 SAFETY LABELS...
- Page 4 14. This machine is not intended for use on any public roadway. Watch for traffic when operating near or crossing roadways. 15. Do not operate the RECHARGE MOWER ® G2 while under the influence of alcohol or drugs. 16. Mow only in daylight.
-
Page 5: Safety Labels
SAFETY LABELS WARNING READ MANUAL Read and follow Operating Instructions before operating machine. This lawn cutting machine is capable of amputating hands and feet. Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly. - Page 6 Before mowing, clear area of objects that may be thrown by blades. Keep people and pets out of mowing area. Slow down when you travel over rough ground. WARNING AVOID SERIOUS INJURY OR DEATH Drive up and down slopes, not across. ...
- Page 7 When leaving machine: Stop engine + Set park brake + Remove key DANGER PROTECT PEOPLE AND PETS Do not mow when children, other people or pets are around. Look down and around you when in forward motion. Keep children indoors out of mowing area and always in the watchful eye of a responsible adult.
-
Page 8: Pinch Point
WARNING RAINY WEATHER Do not mow your lawn in the rain. Always charge the Battery indoors in a garage or other covered area where the machine is protected from the weather. Do not mow wet grass. WARNING PINCH POINT ... -
Page 9: Steering Wheel Installation
ASSEMBLY SET UP – Overview Before you open the carton of your New Recharge Mower®, please review the following: WE RECOMMEND YOU HAVE A SECOND PERSON ASSISTING BEFORE YOU BEGIN. Remove the over shipper carton by lifting it straight up and over the enclosed metal frame that houses and protects the unit. -
Page 10: Seat Installation
Seat Installation Carefully slide seat wiring through the pre-designated hole in seat plate. Align the tracks attached to the seat to the tracks on the seat plate. Carefully pull the seat lever (near the front of the seat) to slide the seat into place. NOTE: Slide until the seat is securely locked into place. - Page 11 Grass Deflector Installation Remove and dispose any packaging. Carefully place the grass deflector on the deflector point located on the deck of the unit (fig 1.7). Slide the supplied bar through the holes on the sides of the deflector point to secure the grass deflector in place (fig 1.7).
-
Page 12: Operating Controls
OPERATING CONTROLS FIG 2.11 FIG 2.12 Blade Motors Operators Button (OPEN) Drive Control Switch- FORWARD Neutral REVERSE Engage Disengage Blade Motors Operators Button (CLOSED) NOTE: Push down to start blades NOTE: Control Switch must be set to When operating the unit, any operator FORWARD to start. -
Page 13: Using The Parking Brake
Using the Parking Brake BRAKE LEVER FIG 2.3 FIG 2.4 To Lock the parking brake, lever location is up (Fig 2.3) To Unlock the parking brake, lever location is down (Fig 2.4) Result: The parking brake prevents the machine from moving. If machine moves, parking brake needs to be adjusted. -
Page 14: Charging The Batteries
Charging the Batteries Charger’s Round Plug Mating Plug FIG 2.6 Make sure the ignition key is in the off position Plug the charger’s round plug into the Mating Plug on the machine. NOTE: It will only fit ONE way. ... -
Page 15: Height Adjustment
Height Adjustment Make sure you are properly positioned on the seat attached to the unit. Take hold of the Height Adjustment Bar and pull it to the left away from the level teeth. NOTE: keep a tight grip on the Height Adjustment Bar when adjusting. ... -
Page 16: How To Operate
3. Install the grass deflector. NOTE: to ensure safety, the grass deflector MUST be attached to the unit at all times 4. The G2 unit is meant for INTENDED USE ONLY! DO NOT USE FOR ANY OTHER PURPOSE. 5. Position yourself comfortably in the seat. - Page 17 FIG 2.11 FIG 2.12 Drive Control Blade Motors Operators Button (OPEN) Switch- FORWARD Neutral Disengage REVERSE Engage Blade Motors Operators Button Push down to start blades NOTE: Control Switch must be set to FORWARD to start. 18. Before beginning to move ALWAYS be aware of your surroundings. Always take precautions to ensure that the area you are mowing is clear of debris, obstruction, obstacles or any power wires.
-
Page 18: Maintenance And Servicing
ALSO the speed of the unit in reverse is only half that of the forward speed. Safety in operating your Recharge Mower® is a priority. All these features have been included to support the safe operation of the unit and the operator. -
Page 19: Blade Replacement
Blade Replacement Before making an attempt to replace the DUAL blades, order ® genuine replacement parts for your Recharge Mower G2 at: www.rechargemower.com FIG 4.1 CAUTION: Avoid injury! Rotating blades are dangerous. Before replacing blades: Turn unit OFF and remove key. - Page 20 The key will unlock the rear case which may then be tilted backward to access the rear wiring and storage (fig 4.4). When you are finished, carefully close the rear case and lock it back into place (fig 4.5). NOTE: make sure that there are no open circuits or loose wiring BEFORE closing the rear case.
-
Page 21: Battery Care And Maintenance
Charge Time: For Best Results: Custom designed deep cycle batteries are included with your Recharge Mower®. In order to achieve the best results, we suggest you drain the batteries as low as possible before each charge. This may mean you are cutting more than one time between charges. Once you have depleted a substantial amount of power from the batteries (when power indicator of mower shows ‘RED’), we suggest you connect to the charger immediately. - Page 22 Blade and Deck Servicing The Recharge Mower is designed to be self-standing on its rear bumper cover. Important: Before attempting to stand the unit, you MUST be on a solid level surface! The Rear Hitch MUST be retracted and the Parking Brake Must be ON ...
-
Page 23: Model Number
GW. 528lbs. (240kg) NW. 438lbs. (199kg) Length (inches) 51 (130 cm) Width (inches) 30 (76 cm) Height (inches) 40 (101 cm) ATTACHMENTS 36V Charger 110v 8Ah Certified Smart Charger Grass catcher Grass deflector Included Two (2) Year RESIDENTIAL USE Limited Warranty – MODEL G2-RM12... - Page 24 Two (2) Year RESIDENTIAL USE Limited Warranty – MODEL G2-RM12 Driven by Solar Inc., maker of the Recharge Mower®, warrants to the original retail purchaser that this Recharge Mower® product is free from defects in material or workmanship under normal use and maintenance from the date of retail purchase for the applicable Warranty Period.
- Page 25 5. Authorized Recharge Mower® Service Provider. In order to obtain warranty coverage it is your responsibility (at your expense) to deliver or ship your Recharge Mower® unit to an authorized Recharge Mower® Service Provider and arrange for pick-up or return of your unit after the repairs have been made. If you do not know the location of your nearest authorized Recharge Mower®...
