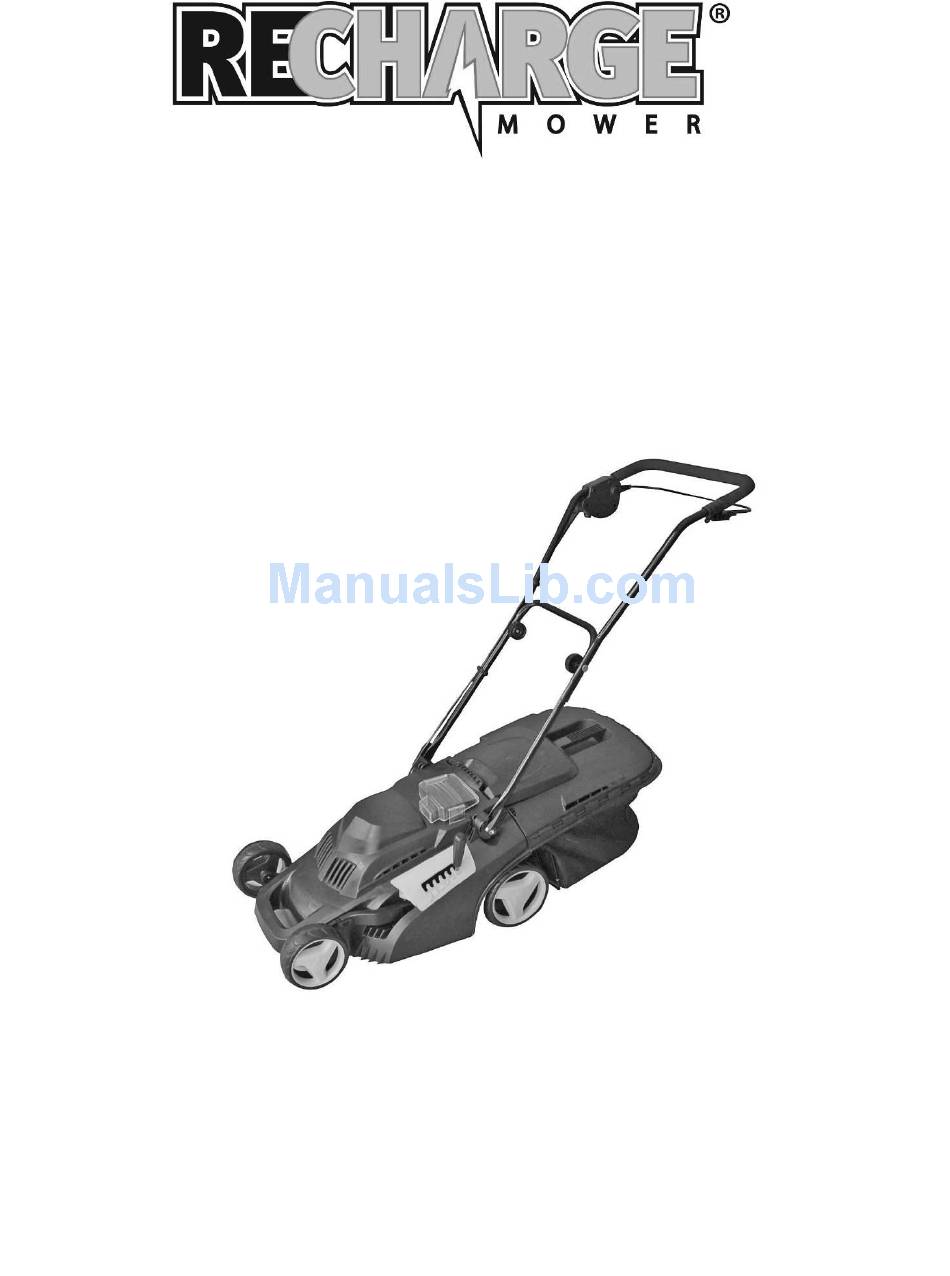

- Page 1 Instruction Manual 36V Lithium Push Mower PMLI-14 This Manual Contains Important Information Regarding: SAFETY, ASSEMBLY, OPERATION AND MAINTENANCE. Please Read And Keep This Book For Future Reference.
-
Page 3: Intended Use
Safety button Battery pack Switch lever Safety key Handle knob Power cord for charger Cable clip Charger Battery cover Mulching Insert Height adjustment lever Battery temperature indicator Upper push bar Battery power indicator Grass catcher indicator Switch button for indicator Grass catcher bag Quick fold lever Intended Use... - Page 4 Not applicable. Wait until all machine components have completely stopped before touching them. The blade continues to rotate after the machine is switched off. A rotating blade can cause injury. Do not mow in the rain or leave the lawnmower outdoors when it is raining. Beware electric shock hazard.
- Page 5 ■ Switch on the lawnmower according to instructions and with feet well away from the blade. ■ Do not put hands or feet near or under rotating parts. Keep clear of discharge opening at all times. ■ Never pick up or carry the lawnmower while the motor is running. Under the following conditions, the unit must be switched off, the key removed and the unit must be brought to a standstill: –...
-
Page 6: Product Specification
Product Specification Lawn mower Model: PMLI-14 Mains:36V, 4Ah Charging time: 2-3 hours Cutting width: 380mm No load speed:3000rpm Cutting system: rotary blade Cutting height: 6 settings, 25-75mm Grass catcher bag capacity:40L Battery Pack Art.No.:LI-14BATT Battery type: Lithium Battery Battery Voltage:36V,4Ah... -
Page 7: Securing Cable By Using Cable Clips
2. Securing cable by using cable clips Figure 3 Secure the cable from the motor to the switch assembly by using four cable clips – two are fixed on upper push bar, the other two are fixed on lower push bar. See Figure 3 3. -
Page 8: Operation
Operation 1. TIPS for the use of this battery-powered mower Under normal conditions, the battery should run for approximately 30 minutes per single charge. This operation time and the area that can be mowed by this battery-powered mower is dependent on various factors. -
Page 9: Charging And Caring For The Battery
2. Charging and caring for the battery Important: Before charging the battery, read all instructions and warning markings in this manual and on your mower, Do not operate your mower until you have read and understand all instructions and the battery has been fully charged. -
Page 10: Storage Temperature Range
Important: Always connect the charger to the battery first, and then plug it into the wall outlet. When unplugging, reverse the process: unplug the charger from the wall outlet first and then disconnect it from the battery. Charging the battery inside and outside the mower Figure 9-10 1. -
Page 11: Starting And Stopping
4. Starting and Stopping Attention! Rotary cutting blade, The blade continues to rotate for a few seconds after the machine is switched off. Allow the motor/blade to stop rotating before switching “on” again. Do not rapidly switch off and on. Starting Figure 11 Before starting make sure the battery pack is put into the mower and put the safety key into its socket. -
Page 12: Mowing Tips
Figure 13 Instructions for mowing without the grass catcher bag We recommend: The grass should not be too high nor too wet! Mow slowly Do not cut grass more than 20mm (see Figure 14) Mowing tips: If grass residue is left in the discharge opening, pull mower backwards about 1-2m so that the grass residue can drop out downwards. -
Page 13: Cleaning Your Mower
Two green lights go on, mid battery capacity Three green lights go on, full battery capacity Red light indicates the battery temperature is too high. Please wait until the red light is off before restarting the charging process. (See figure 14 and 15) Maintaining and Storing WARNING! ALWAYS switch off the mower, remove safety key from its socket and remove battery before performing any adjustments, maintenance, blade change or repairs to your mower. -
Page 14: Sharpening The Blade
Tools & supplies needed: 14 mm socket wrench. Gloves or rag to protect your hands Wear heavy gloves to protect your hands when holding, removing and attaching blades. 1. Remove the safety key from its socket and remove battery. If you are charging the battery, first disconnect the charger from the electrical (wall) outlet. -
Page 15: Troubleshooting Tips
Remove safety key from its socket. Always store the mower in an environment where the temperature is between –4°F (–20°C) and +104°F (+40°C). Make sure the storage temperatures will never be outside these limits. For long-term storage, store your battery in an environment where the temperature is lower, since the battery self-discharges slower at low temperatures. - Page 16 this could indicate that the battery pack is needing be replaced. Contact your service provider. Mower stops The battery has been completely Recharge the battery immediately or replace it while mowing depleted. with a fully charged battery. (for reasons other than releasing the trigger bar) Mower is hard to...
- Page 17 collecting grass The grass is too long or the mower Raise the cutting height. poorly is cutting too low The mower is moving too fast Slow down. rear discharge Remove the safety key from the socket and clogged remove battery, turn the mower over on the right side and clean away any debris from the rear discharge plate and below the deck The mesh holes on the grass...
-
Page 18: Limited One-Year Warranty
MAY NOT APPLY TO YOU. DRIVEN BY SOLAR INC., the distributor of the RECHARGE MOWER®, shall NOT be liable under any circumstances for any incidental or consequential damages or expenses of any kind, including, but not limited to, cost of equipment rentals, or cost of hiring services to perform tasks normally performed by the RECHARGE MOWER®.
