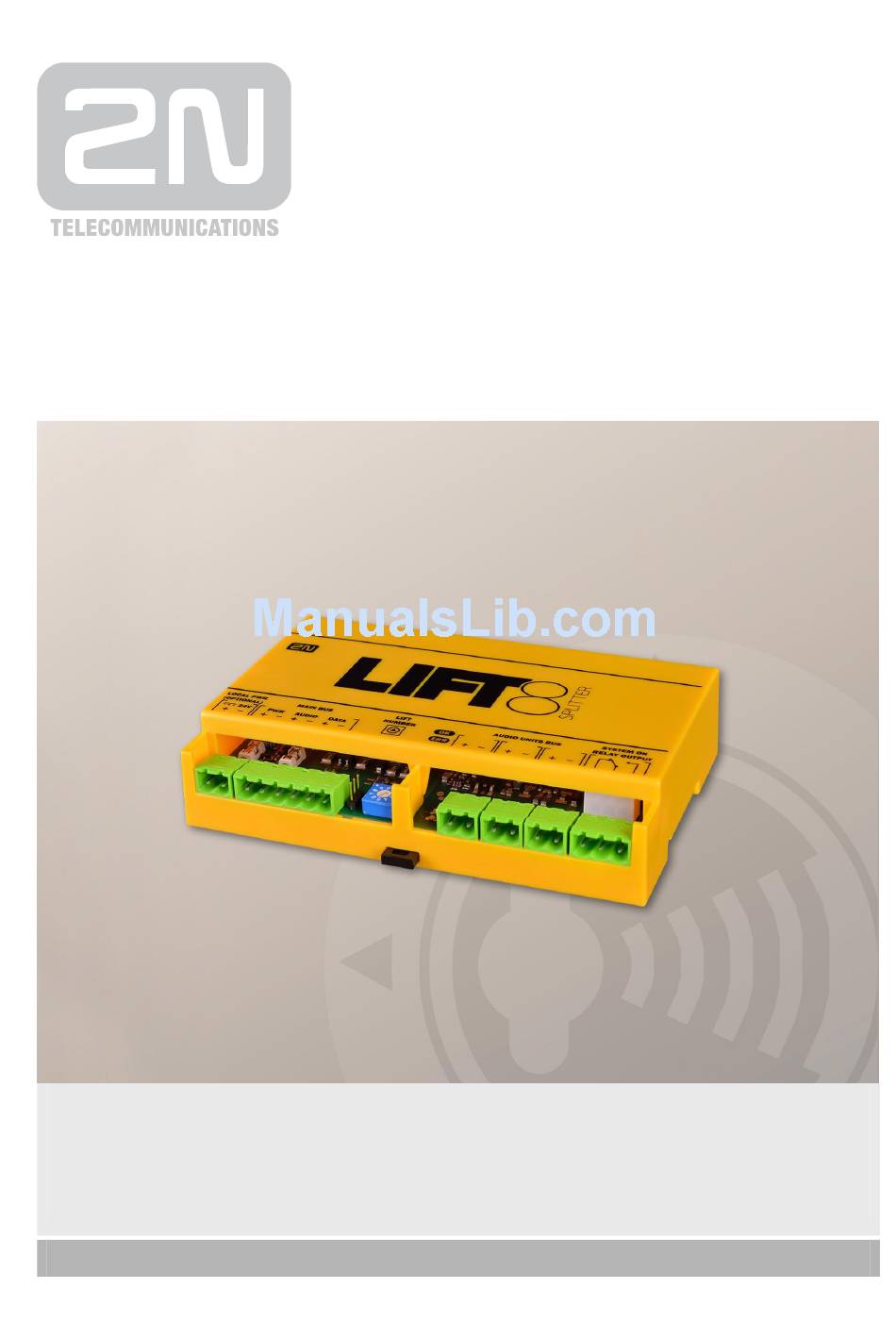

® Lift8 Splitter Brief Manual www.2n.cz Version 2.0.0...
Page 3
It is necessary to adhere to the polarity of connection. Otherwise the system Lift8 will not work properly. Bus connection between audio units and splitter We connect the splitter and audio units using a two-wire bus. We must maintain the...
Page 4
Lift blocking is enabled by the contact breaking (opening) when there is a telephone line ® (PSTN, GSM, UMTS, VoIP) fault or if the 2N Lift8 rechargeable batteries are almost flat. Connect the contact to the relevant input of the control electronics of the lift/group of lifts.
Page 5
(číslo výtahové šachty), aby systém fungoval. Adresa se nastavuje 2-8 (výtah 2-8). Adresa 1 je centrální jednotka. Splittry se zapojují sériově, tedy za sebou. Není možné je připojovat paralelně. Systém Lift8 by byl nestabilní. Na posledním splittru, nebo IO modulu (nejdále od centrální jednotky) se zapojí zakončovací odpor (jumper).
Page 6
Nastavení adresy Adresu splitteru pro daný výtah nastavíme pomocí 10-polohového přepínače 0-9. Výtah 2-8 nastavíme jako 2-8. (např. pro výtah 5 nastavíme přepínač do polohy 5). Varování Nenastavujte adresu splittru na 0, 1 a 9 jinak systém hlásí chybu. Adresa 1 je použita centrální...
