Introduction
This Quick Installation Guide gives step-by-step
instructions for setting up the D-Link Media
Converter. The model you have purchased may
appear slightly different from those shown in the
illustrations. For more detailed information about
the switch, its components, making network
connections and technical specifications, please
refer to the User's Guide included with your switch.

Connecting to Power

1. This Converter is a plug-and-play device.
2. Connect the supplied AC to DC power adaptor with
a power voltage of 7.5Vdc/1.5Amp to the DC-Jack
on the converter, and then attach the plug into a
standard AC outlet.
Sliding Switch
There is a sliding switch for duplex mode setting for
fiber port. Refer to the table below for more details.
Half
Duplex

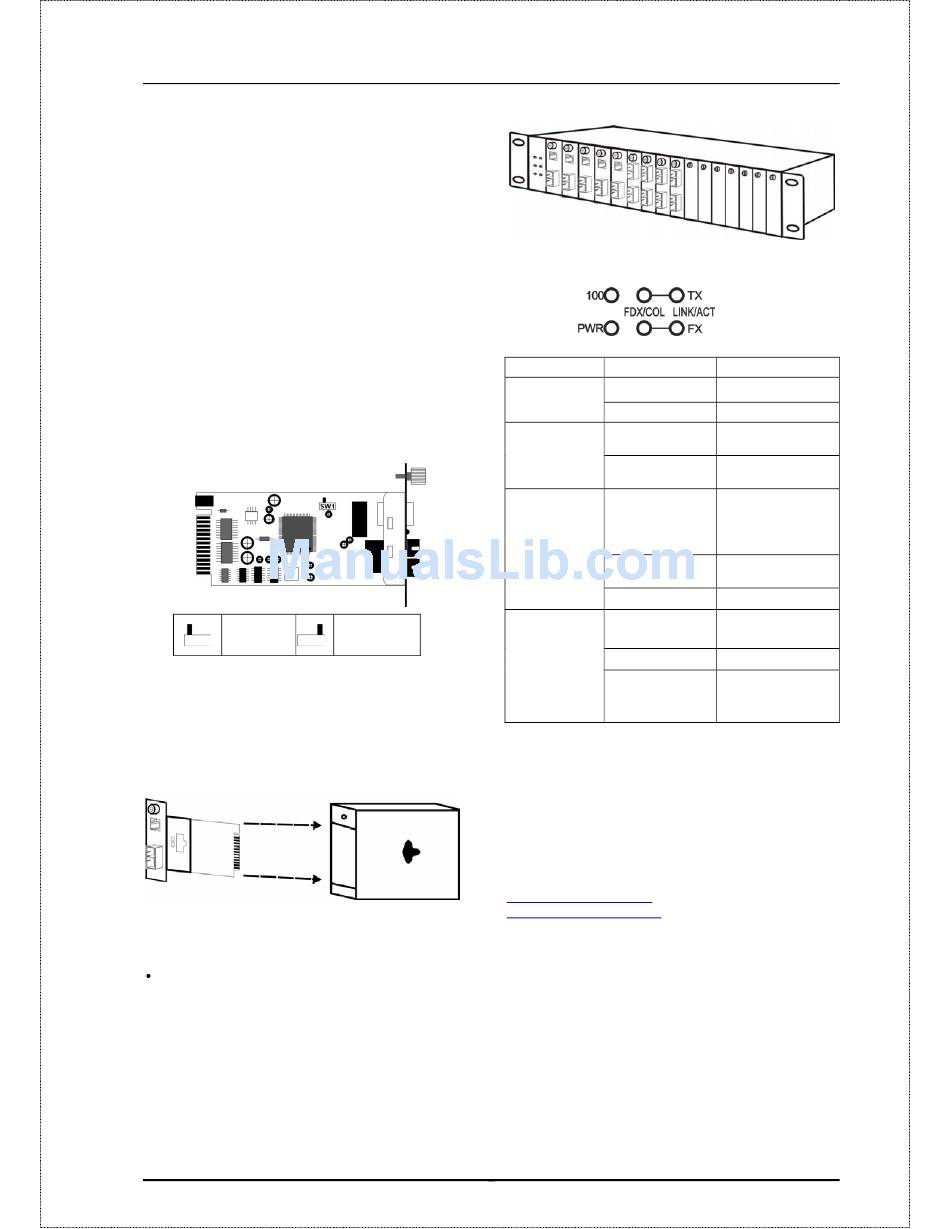

Installing in a Chassis

The Converter can be fit into any of the expansion slots
on a special designed chassis.
Unscrew and
pull out the
First, install the converter onto a carrier supplied with
the chassis:
Step 1- Unscrew and pull out the media converter
board.
Step 2- Plug in the media board to any of the vacant
slot.
Step 3- Fit the converter onto the carrier and use the
screw to secure it.

LED Indicator

(PWR)
(100)
Full Duplex
(default)

Additional Information

If you are encountering problems setting up your
network, please refer to the User's Guide that
came with the switch. It contains many more rules,
charts, explanations and examples to help you get
your network up and running.
Additional
http://www.dlink.com
http://www.dlink.co.uk
through our offices listed at the back of the User's
Guide.
2
LEDs
State
Power
Steady
Off
100 Mbps
Steady
Off
Steady (FDX)
TX Port (TX)
FX Port (FX)
Lights off
FDX/COL
Blinking (COL)
Steady
(LINK)
TX Port (TX)
Lights off
FX Port (FX)
LINK/ACT
Blinking
(ACT)
help
is
available
in the United States, at
in the United Kingdom, or
Indication
Power on
Power off
Runs at 100Mbps on
TX port
Runs at 10Mbps on
TX port
Connection in full
duplex mode
FDX stands for FULL-
DUPLEX
Connection in half
duplex mode
Data collision
A valid network
connection established
Not Linking
Transmitting or
receiving data
ACT stands for Activity
online
at
