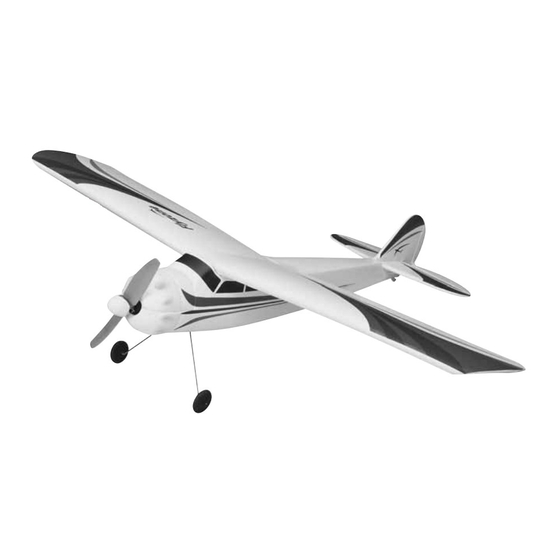

Principle
Instruction Manual
BATTERY HATCH REMOVAL
WING INSTALLATION
flyzoneplanes.com
REQUIRED
● AirCore Power Core (FLZA6400)
● AirCore Battery (FLZA6401)
● SLT Compatible Radio System
● AirCore 2S LiPo AC/DC Charger (FLZA6411)
FLIGHT SETUP
Because transmitters other than the Tactic transmitters
may be used, the following information is included to
properly set the throws and C.G. (center-of-gravity) on
the AirCore Principle.
The measurements are taken at the widest part of the
control surface.
Rudder Throw 1/4 in [6 mm] 24 deg. Left and Right
Elevator Throw 9/32 in [ 7 mm] 15 deg. Up and Down
CG Location on the Wing 1-1/8" [29mm] – 1-5/16" [33mm]
from the leading edge, on the bottom of the wing.
™
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Flyzone Aircore
Summary of Contents for Flyzone Aircore
- Page 1 REQUIRED ● AirCore Power Core (FLZA6400) ● AirCore Battery (FLZA6401) ● SLT Compatible Radio System ● AirCore 2S LiPo AC/DC Charger (FLZA6411) FLIGHT SETUP Because transmitters other than the Tactic transmitters may be used, the following information is included to properly set the throws and C.G.
- Page 2 ● Hobby Knife (#11 blade) (RMXR6900) With the transmitter switched on and the battery plugged ● Electric Flyer Hinge Tape (DUBQ0916) into the AirCore Module, walk 50' [15 m ] from the aircraft and check the control functions for proper and smooth REPLACEMENT PARTS operation.
