Flyzone Aircore Spitfire Instruction Manual

Spitfi re Instruction Manual

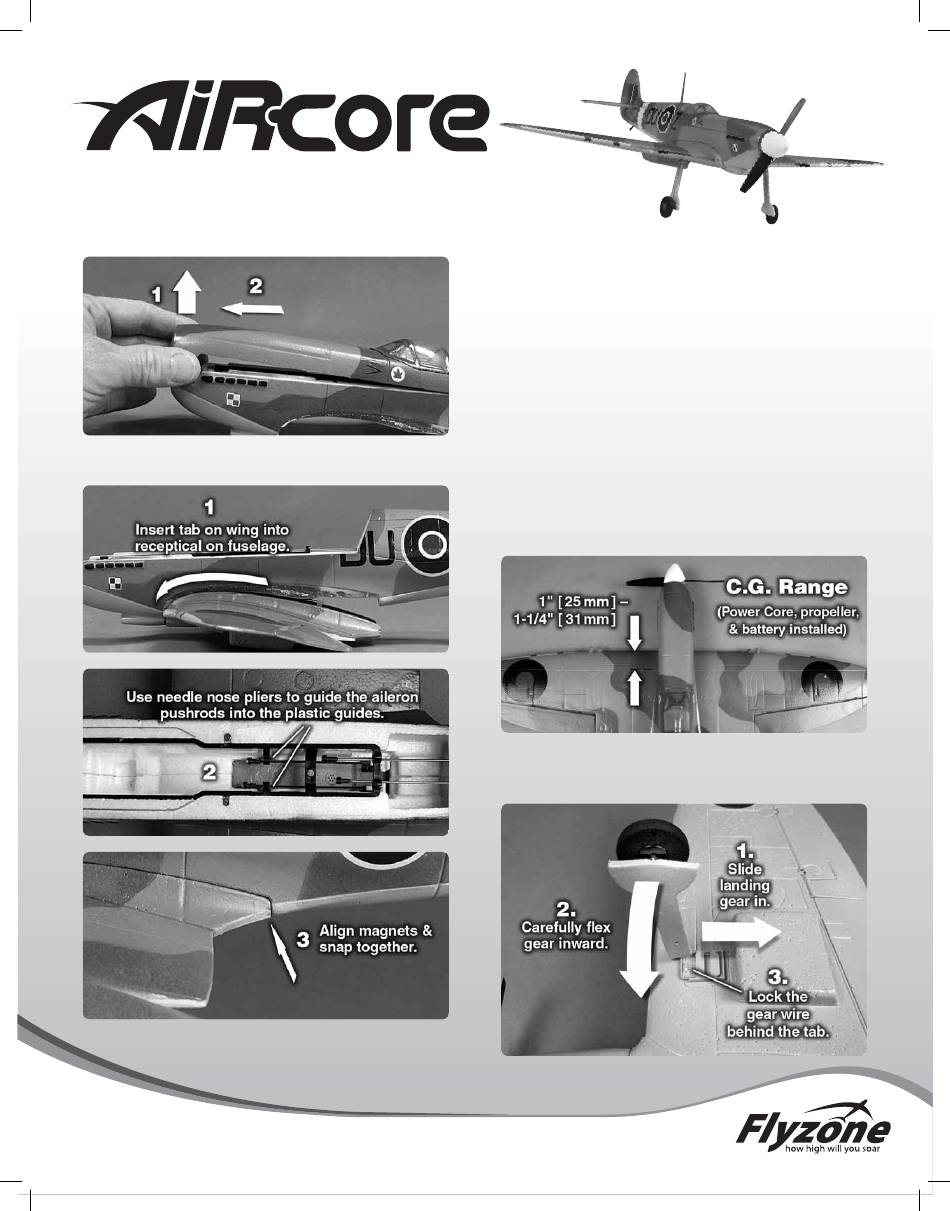

BATTERY HATCH REMOVAL
WING INSTALLATION
rcaircore.com
TM
REQUIRED
● AirCore Power Core (FLZA6400)
● AirCore Battery (FLZA6401)
● SLT Compatible Radio System
● AirCore 2S LiPo AC/DC Charger (FLZA6411)
FLIGHT SETUP
Because transmitters other than the Tactic transmitters
may be used, the following information is included to
properly set the throws and C.G. (center-of-gravity) on
the AirCore Spitfi re.
The measurements are taken at the widest part of the control
surface with a minimum and maximum throw indicated.
Aileron Throw 1/4 – 9/32" [6 –7mm] 10 –12 deg. Up and down
Rudder Throw 1/4 –11/32" [6 – 8 mm] 13 –17 deg. Left and right
Elevator Throw 5/32– 3/16" [4– 5 mm] 10 –13 deg. Up and down
OPTIONAL INSTALLATION OF
THE LANDING GEAR
®
