Blackbox LIG401A Quick Start Manual

LIG401A, LIE401A Quick Start Guide

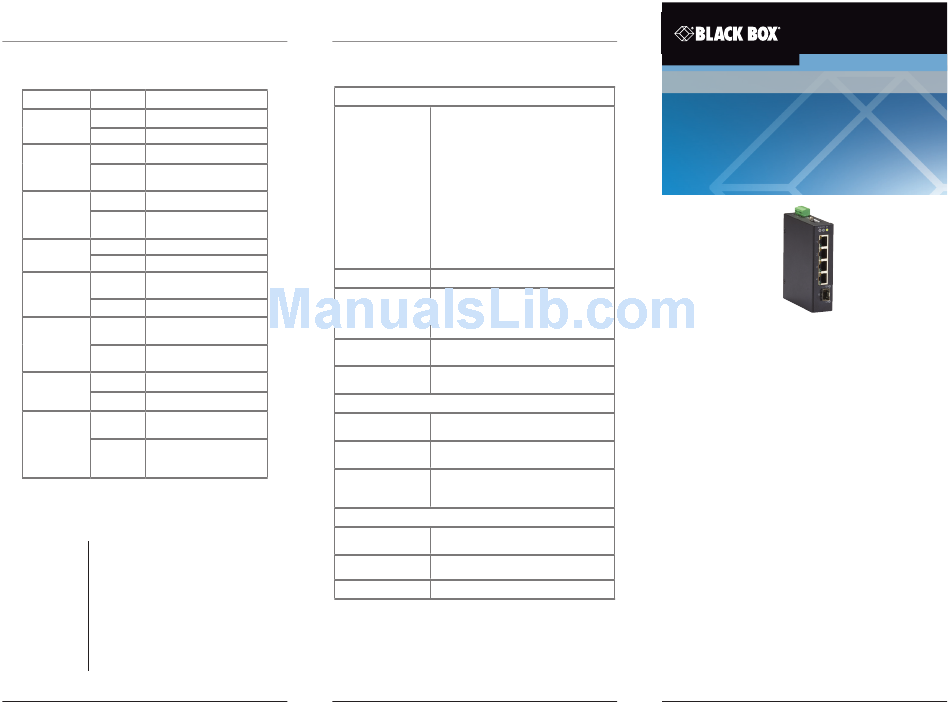

LED Indicators on the LIE401A and LIG401A
LED Name Status Condition
PoE ON, Green PoE is working
(LIE401A only)
OFF PoE is not working
P1 ON, Green P1 power line has power
OFF P1 power line is disconnected
or does not have power
P2 ON, Green P2 power line has power
OFF P2 power line is disconnected
or does not have power
Alarm ON, Red Power failure alarm occurs
OFF No power failure alarm
(4) Link/Act On, Green Ethernet link is up but no
LEDs for RJ-45 traffic is detected
ports
OFF Ethernet link is down
(4) Speed LEDs ON, Yellow 1000-Mbps connection is
for RJ-45 ports detected.
OFF No link, a 10-Mbps or 100-
Mbps connection is detected
(1) Link/Act LED ON, Green Ethernet link is up
for SFP port
OFF Ethernet link is down
(1) Speed LED ON, Yellow SFP port speed 1000-Mbps
for SFP port connection is detected
OFF No link, or an SFP port speed
100-Mbps connection is
detected
Customer Order toll-free in the U.S.:
Call 877-877-BBOX
Support
(outside U.S. call 1-724-746-5500)
Information
FREE technical support
24 hours a day, 7 days a week:
Call 724-746-5500 or
fax 724-746-0746
Web site: www.blackbox.com
E-mail: info@blackbox.com
724-746-5500 | blackbox.com
LIG401A, LIE401A Quick Start Guide
Specifications
Mechanical
Connectors LIG401A:
LIE401A:
Ingress protection IP30
Dimensions (without LIG401A: 4.4"H x 1.1"W x 3.5"D
DIN rail clip)
LIE401A: 5.4"H x 1.1"W x 4.2"D
Weight LIG401A: 0.70 lb. (0.32 kg);
LIE401A: 1 lb. (0.46 kg)
Installation Options DIN-rail mounting;
Wallmounting
Power
PoE LIG401A: No;
LIE401A: Yes
Input Redundant input terminals, reverse power pro-
tection
Input Voltage LIG401A: 12–58 VDC;
LIE401A: 12–58 VDC, 54–58 V
Environmental
Operating -40 to +167° F (-40 to +75° C), cold startup at
Temperature -40° C
Storage Temperature -40 to +185° F (-40 to +85° C)
Humidity 5 to 95% RH (non-condensing)
© Copyright 2016. Black Box Corporation. All rights reserved.
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc. Any other trademarks mentioned in this manual
are acknowledged to be the property of the trademark owners.
lig401a_lie401a_qsg_rev1
724-746-5500 | blackbox.com
Page 5
(5) RJ-45, 10/100/1000 Mbps
speed auto-negotiation,
MDI-MDI-X auto-crossover
(1) 100/1000BASE-SFP
module slot;
(5) RJ-45, IEEE 802.3at
PoE PSE ports,
10/100/1000 Mbps speed
auto-negotiation,
MDI-MDI-X auto-crossover;
(1) 100/1000BASE-SFP
module slot
(11.2 x 2.9 x 8.9 cm);
(13.9 x 2.9 x 10.7 cm)
for PoE+, 48–58 V for PoE
Page 6
Industrial Gigabit Ethernet Switches
Quick Start Guide

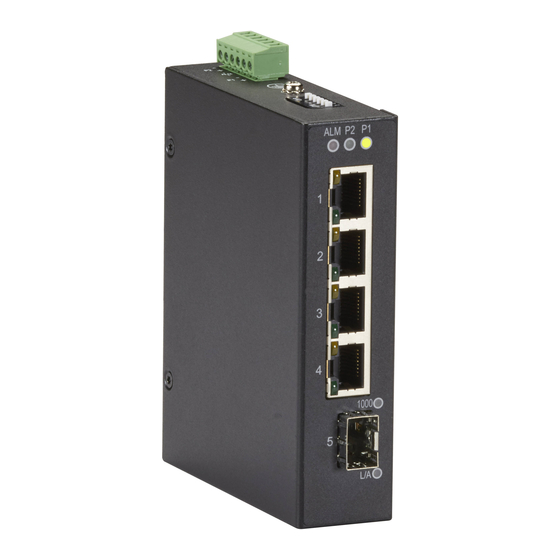

LIG401A has (4) RJ-45 and (1) SFP ports.
LIE401A has (4) RJ-45 PoE+ and (1) SFP ports.
1. What's Included
Your package should contain the following items. If any-
thing is missing or damaged, contact Black Box Technical
Support at 724-746-5500 or info@blackbox.com.
• (1) Industrial Gigabit Ethernet Switch -
(4) RJ-45, (1) SFP (LIG401A)
OR
(1) Industrial Gigabit Ethernet PoE+ Switch - (4) RJ-45, (1)
SFP (LIE401A)
• (2) wallmount brackets
• (1) DIN-rail clip
• (4) M4 screws (for the wallmount brackets
or DIN-rail clip)
• (1) DC power terminal block
• This Quick Start Guide
2. Overview
The Industrial Gigabit Ethernet Switches support standard
industrial applications without complex setup to make the
network truly plug-and-play.
WARNING! When a connector is removed during
installation, testing, or servicing, or when an
energized fiber is broken, your eyes might be
exposed to to hazardous laser output power.
724-746-5500 | blackbox.com
LIG401A
LIE401A
