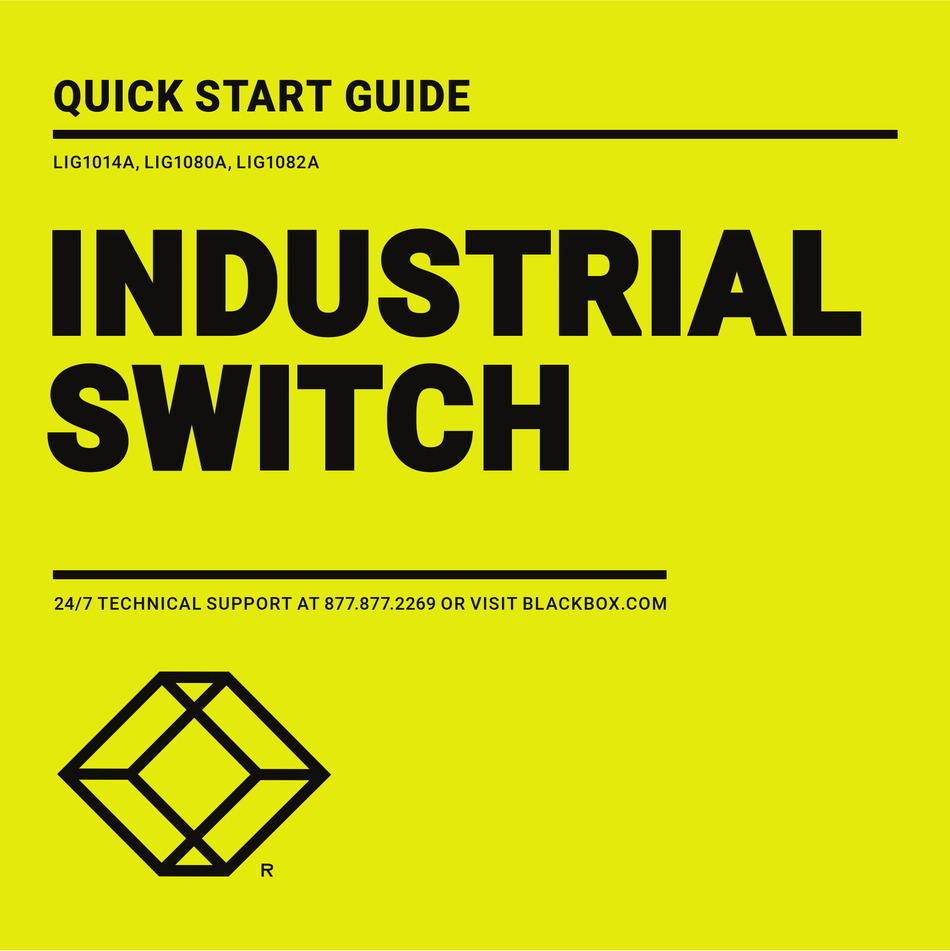

- Page 1 STEP X - Name of Step QUICK START GUIDE LIG1014A, LIG1080A, LIG1082A INDUSTRIAL SWITCH 24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM...
-
Page 2: Step 1 - Hardware Description

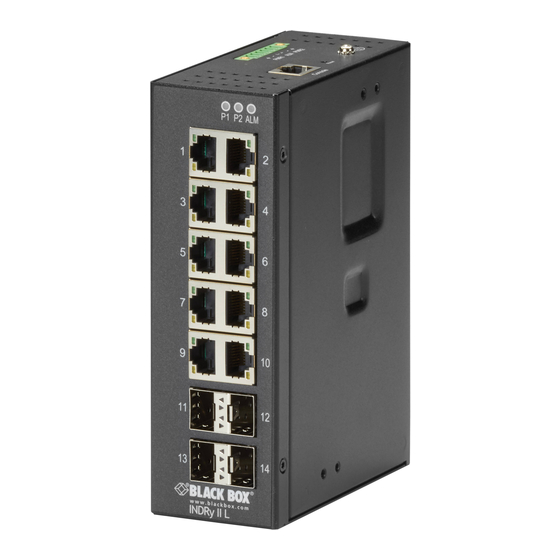

STEP 1 - Hardware Description LIG1014A LIG1082A LIG1080A TABLE 1. COMPONENTS COMPONENT LIG1014A LIG1080A LIG1082A RJ-45 ports SFP cages None P1 LED P2 LED ALM LED Ethernet Port Link LED Ethernet Port Speed LED SFP Port Link LED None SFP Port Speed LED... -
Page 3: Step 2 - What's Included
STEP 2 - What's Included WHAT'S INCLUDED • (1) INDUSTRIAL MANAGED GIGABIT • (1) DC POWER TERMINAL BLOCK ETHERNET SWITCH • RJ-45 PORT DUST COVERS • (2) WALLMOUNT PLATES • SFP PORT DUST COVERS • (1) DIN RAIL CLIP • THIS QUICK START GUIDE TABLE 2. - Page 4 STEP 3A - Install on DIN Rail INSTALL THE UNIT ON A DIN RAIL 1. Attach the screws to the DIN clip. 2. Hook the unit onto the DIN rail. 3. Push the bottom of the unti towards the DIN rail until it locks into place.
- Page 5 STEP 3B - Mount on a Wall INSTALL THE UNIT ON A WALL 1. Attach the screws to the wallmount brackets. 2. Using M4 screws, attach the unit and bracket assembly to the wall. P1 P2 ALM – – – – –...
- Page 6 STEP 4A - Connect the RJ-45 Ethernet Interface CONNECT THE SWITCH TO PC OR DEVICE 1. To connect the switch to a PC, use a straight- through Ethernet or crossover cable. 2. To connect the switch to an Ethernet device, use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) Ethernet cables.
- Page 7 STEP 4B - Connect the Fiber SFP Ethernet Interface 1001000BASE-FX CONNECTIONS For both 100/1000 Mbps fiber speed connections, the SFP slots are available. The SFP slot accepts the SFP transceivers shown in the table below. DANGER! Never look directly at optical connectors that might be emitting optical energy.
-
Page 8: Step 5 - Connect The Power
STEP 5 - Connect the Power ALARM RELAY AND GROUND CONNECTING POWER TERMINAL BLOCK The alarm relay output contacts are in the The switch can be powered from two DC power middle of the DC terminal block connector supplies (input range 12 VDC to 58 VDC). as shown in the diagram below. -
Page 9: Step 6 - Connect The Console Port
STEP 6 - Connect the Console Port CONSOLE CONNECTION To connect the host PC to the console port, Use the console port to manage the switch you need an RJ-45 male to RS-232 DB9 female locally via a terminal emulator or a computer connector cable. -
Page 10: Connect To The Ethernet Port
1. Go to www.blackbox.com site to download the manual, you can contact our Technical Support at 877-877-2269 2. Enter the part number (LIG1014A, LIG1080A or INFO@BLACKBOX.COM. or LIG1082A) in the search box. 3. Click on the product in the “Product... -
Page 11: Step 8 - Cli Initialization And Configuration (Optional)
STEP 8 - CLI Initialization and Configuration (Optional) COMMAND-LINE INTERFACE (CLI) Connect to the Ethernet port of the managed switch. 2. Type in the command: telnet 192.0.2.1 3. Log in with the default username and password: Username: admin Password: (none) (Just press the Enter key.) 4. - Page 12 STEP X - Name of Step COPYRIGHT 2018 BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
