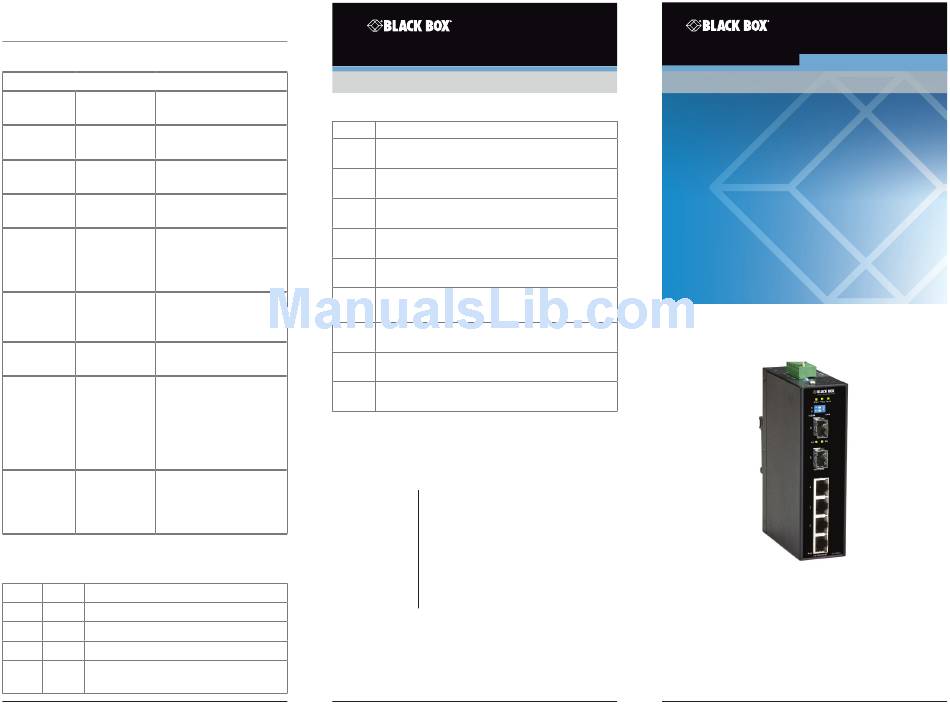

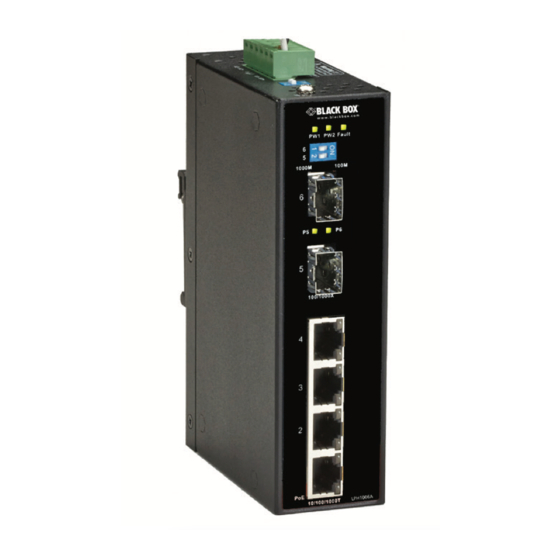

Blackbox LPH1006A Quick Start Manual

LPH1006A Quick Start Guide

Table 2-1. Switch components.

Number in Component Description
Figure 2-1
1 (2) Power Light when unit is
LEDs powered on.
2 (2) SFP Speed Selects 100M/1G.
DIP Switches
3 (2) SFP Link/ Light when SFP Link is
Act LEDs active.
4 (2) SFP slots SFP module (LFP401–
LFP404, LFP411–
LFP414, LFP416) installs
here
5 (4) Gigabit Link to 10/100/1000-
RJ-45 PoE Mbps PoE Ethernet
ports devices or segments
6 (1) Power Lights when power is
Fault LED on.
7 (4) RJ-45 ON when port is con-
port LINK/ nected;
ACT LEDs OFF when port is not
connected;
Flashing when data is
transmitted or received
8 (4) RJ-45 ON when port is using
port PoE PoE;
LEDs OFF when port is not
using PoE
NOTE: SFP modules are ordered separately.

Table 2-2. Relay output DIP switches (#9 in Figure 2-1).

DIP-1 DIP-2 Description
OFF OFF Power failure relay alarm disabled.
ON OFF PWR-1 failure, relay alarm enabled
OFF ON PWR-2 failure, relay alarm enabled.
ON ON PWR-1 or PWR-2 failure, relay alarm
enabled.
877-877-2269 | blackbox.com

Table 2-3. Compatible SFPs.

Code Description
LFP401 SFP, 155-Mbps Fiber with Extended Diagnostics,
850-nm Multimode, LC, 2 km
LFP402 SFP, 155-Mbps Fiber with Extended Diagnostics,
1310-nm Multimode, 2 km, LC
LFP403 SFP, 155-Mbps Fiber with Extended Diagnostics,
1310-nm Single-Mode, Plus, 30 km, LC
LFP404 SFP, 155-Mbps Fiber with Extended Diagnostics,
1310-nm Single-Mode, Plus, 60 km, LC
LFP411 SFP, 1.25-Gbps Fiber with Extended Diagnostics,
850-nm Multimode, LC, 300 m
LFP412 SFP, 1.25-Gbps Fiber with Extended Diagnostics,
1310-nm Multimode, LC, 2 km
LFP413 SFP, 1.25-Gbps Fiber with Extended Diagnostics,
1310-nm Single-Mode, LC, 10 km
LFP414 SFP, 1.25-Gbps Fiber with Extended Diagnostics,
1310-nm Single-Mode, LC, 30 km
LFP416 SFP with SGMII Interface, 1.25 Gbps, Copper,
10/100/1000BASE-T, Extended Diagnostics
Customer
Order toll-free in the U.S.:
Call 877-877-BBOX
Support
(outside U.S. call 1-724-746-5500)
Information
FREE technical support
24 hours a day, 7 days a week:
Call 877-877-2269
Web site: www.blackbox.com
E-mail: info@blackbox.com
© Copyright 2016. Black Box Corporation. All rights reserved.
Black Box and the Double Diamond logo are registered trademarks of
BB Technologies, Inc. Any other trademarks mentioned in this manual
are acknowledged to be the property of the trademark owners.
lph1006a_qsg_rev2
877-877-2269 | blackbox.com
Page 5
LPH1000 Series Industrial Ethernet PoE Switch
Quick Start Guide
877-877-2269 | blackbox.com
Page 6
LPH1006A
