Blackbox LB620C User Manual

8-Port Fast Ethernet TP/Fiber
TP/SC/SCS/ST/BS Series Module
User's Manual (625−0601−000)

1. Overview

Modules of 8-Port Fast Ethernet TP/Fiber Series are used for
high-speed connection expansion in comprehensive managed
switches. Five optional module types are as below:
⎯
8-Port Fast Ethernet TP Module
⎯
8-Port Fast Ethernet SC Multi-Mode Fiber Module
⎯
8-Port Fast Ethernet SC Single-Mode Fiber Module,
up to 80Km
⎯
8-Port Fast Ethernet ST Multi-Mode Fiber Module
⎯
8-Port Fast Ethernet BiDi-SC Single Fiber WDM
Module, up to 60Km
8-Port Fast Ethernet TP Module fully complies with IEEE
802.3/u/x Fast Ethernet specifications. 8-Port Fast Ethernet
Fiber Module is a 100Mbps Ethernet port that fully complies
with all IEEE 802.3u and 100Base-FX standards.
8-Port Fast Ethernet BiDi-SC Single Fiber WDM Module is
designed with an optic Wavelength Division Multiplexing
(WDM) technology that transports bi-directional full duplex
signal over a single-strand fiber.

2. Checklist

Before you start installing the Module, verify that the package
contains the following:
⎯
The Module
⎯
This User's Manual
Please notify your sales representative immediately if any of
the aforementioned items is missing or damaged.
1

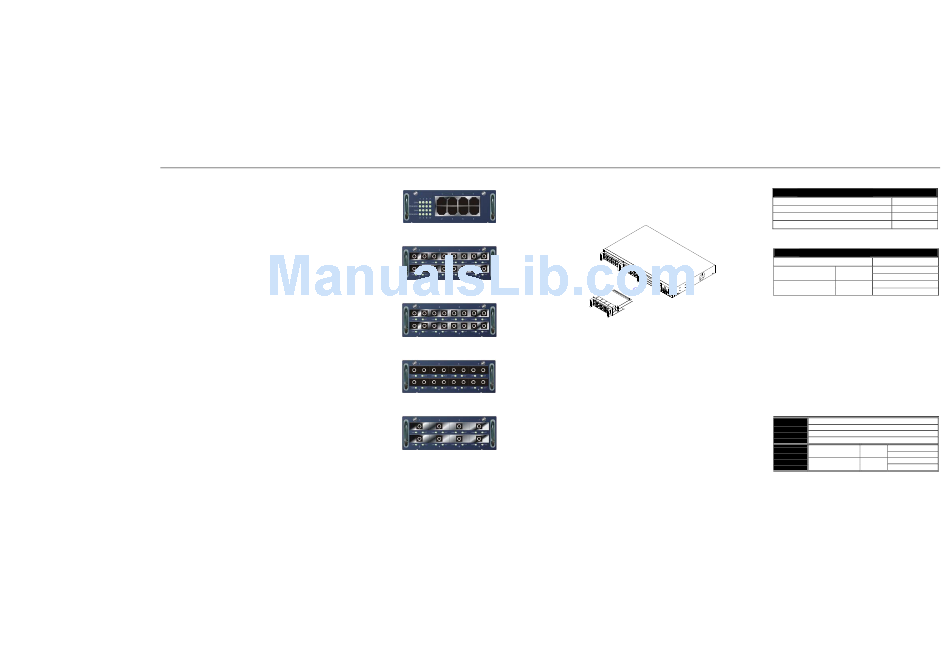

Fig. 1 Front View of 8-Port Fast Ethernet TP Module
Fig. 2 Front View of 8-Port Fast Ethernet SC MM Fiber Module
Fig. 3 Front View of 8-Port Fast Ethernet SC SM Fiber Module
Fig. 4 Front View of 8-Port Fast Ethernet ST MM Fiber Module
Fig. 5 Front View of 8-Port Fast Ethernet BiDi-SC Single Fiber
WDM Module
2
3. Installing optional Modules to the
Managed Switch
The managed switch has 3 optional slots for high-speed
connection expansion.
Fig. 6 Installation of optional modules
To connect the module to the chassis:
Note: The optional modules are hot-swappable.
⇒ Unscrew and remove the vacant slot dummy panel
⇒ Verify that the module is the right model and conforms
to the chassis
⇒ Slide the module along two guides in slot and fasten
the thumb knob, and be sure that the module is properly
seated against the slot socket/connector
⇒ Install the media cable for network connection
⇒ Repeat the above steps, as needed, for each module to
be installed into slot(s)
3

4. Fiber Transceiver Description

100Base-FX 1310nm Fiber Module Models
∗ ST/SC multi-mode 2Km
Option
SC.20/40/60/80Km single-mode Default (20Km)
∗∗VF-45 multi-mode 2Km
∗∗
∗∗MT-RJ multi-mode 2Km, single-mode 15Km ∗∗
∗: SC multi-mode 2Km model is option
∗∗: VF-45, MT-RJ models are available upon request
100Base-FX Single Fiber WDM Module
Mode TX, RX Wavelength
Single-Mode TX(Transmit) 1310nm
BS3.xx
Type 2 RX(Receive) 1550nm
Single-Mode TX(Transmit) 1550nm
BS5.xx
Type 1 RX(Receive) 1310nm
Note: and must be installed in pairs, i.e. install
BS3.xx BS5.xx
at one end and at the other end.
BS3.20 BS5.20
5. Cabling requirements for 10/100Mbps
TP Ports
To help ensure a successful installation, you must observe the
following cabling parameter. Violating these rules can render
the LAN to work poorly.
⇒ Fast Ethernet 10/100 NWay TP network connection
⎯ Category 5 UTP cable and up to 100 meters

6. Cabling requirements for 100FX Module

To help ensure a successful installation, you must observe the
following cabling parameter. Violating these rules can render
the LAN to work poorly.
SC.20/40/60/80Km single mode
100Base-FX
ST/SC multi-mode 2Km
1310nm Fiber
VF-45 multi-mode 2Km
Module Models
MT-RJ multi-mode 2Km, single-mode 15Km
Single-Mode TX(Transmit) 1310nm
BS3.20/40/60
100Base-FX
*20Km RX(Receive) 1550nm
Single Fiber
Single-Mode TX(Transmit) 1550nm
WDM Module
BS5.20/40/60
*20Km
RX(Receive) 1310nm
*: Default module
