Summary of Contents for Blackbox LPH008A-R2

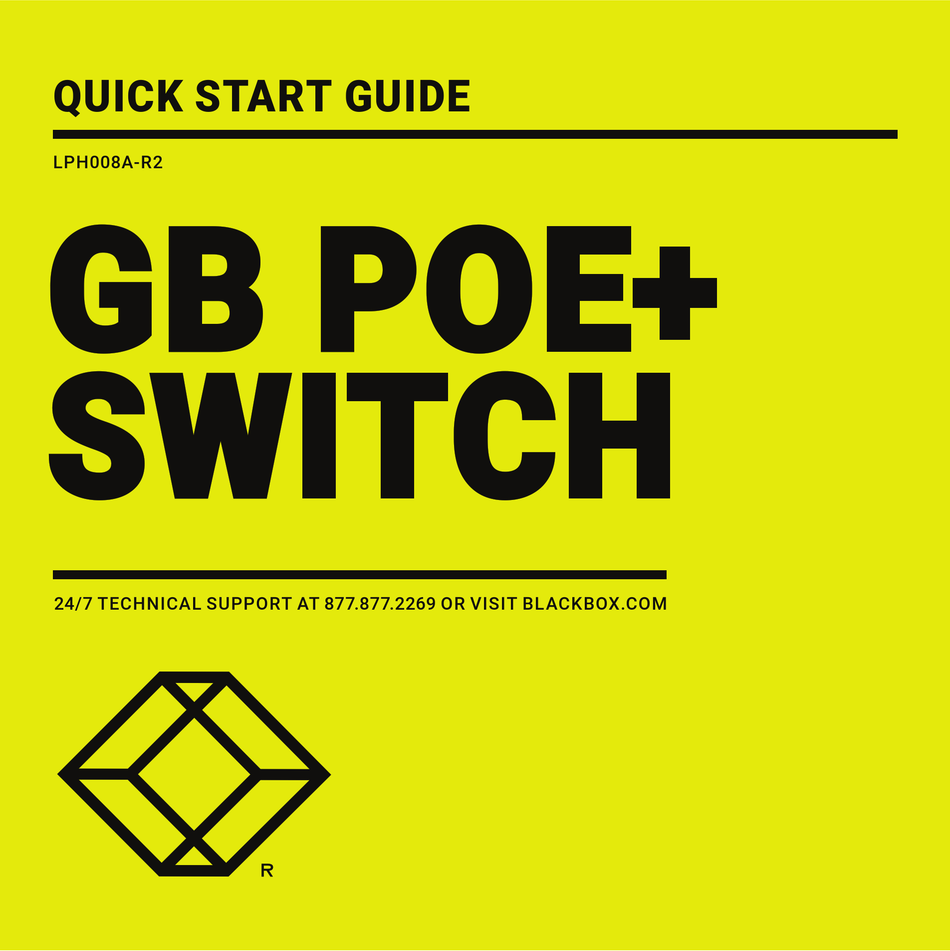

  • Page 1 STEP X - Name of Step QUICK START GUIDE LPH008A-R2 GB POE+ SWITCH 24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM...
  • Page 2 Giganit PoE+ Switch and set them according to download this document from our web site. Table 1 below. 1. Go to www.blackbox.com 2. Enter the part number (LPH008A-R2) in the search box. 3. Click on the product in the “Product Results” page.
  • Page 3 STEP 2 - Install the switch on a DIN rail or wall Wallmount DIN rail installation installation...
  • Page 4 STEP 3 - Connect the power Check Polarity First. PWR-2 1A@24V PWR-1 Frame Ground V2- V2+ V1- V1+ DIP switch select for Power Alarm Relay Output Power Power Supply Supply 12–57 VDC 12–57 VDC Warning Device Power Supply...
  • Page 5 STEP 4 - Connect the network devices CONNECT THE NETWORK DEVICES Power 2 LED 1. Connect your devices using standard UTP/STP Power Fault Power 1 cable with RJ-45 connectors to the switch. P2 Fault 2. The corresponding RJ-45 LED will light if the Ethernet connection is linked successfully.
  • Page 6 STEP X - Name of Step COPYRIGHT 2017 BLACK BOX CORPORATION. ALL RIGHTS RESERVED.
