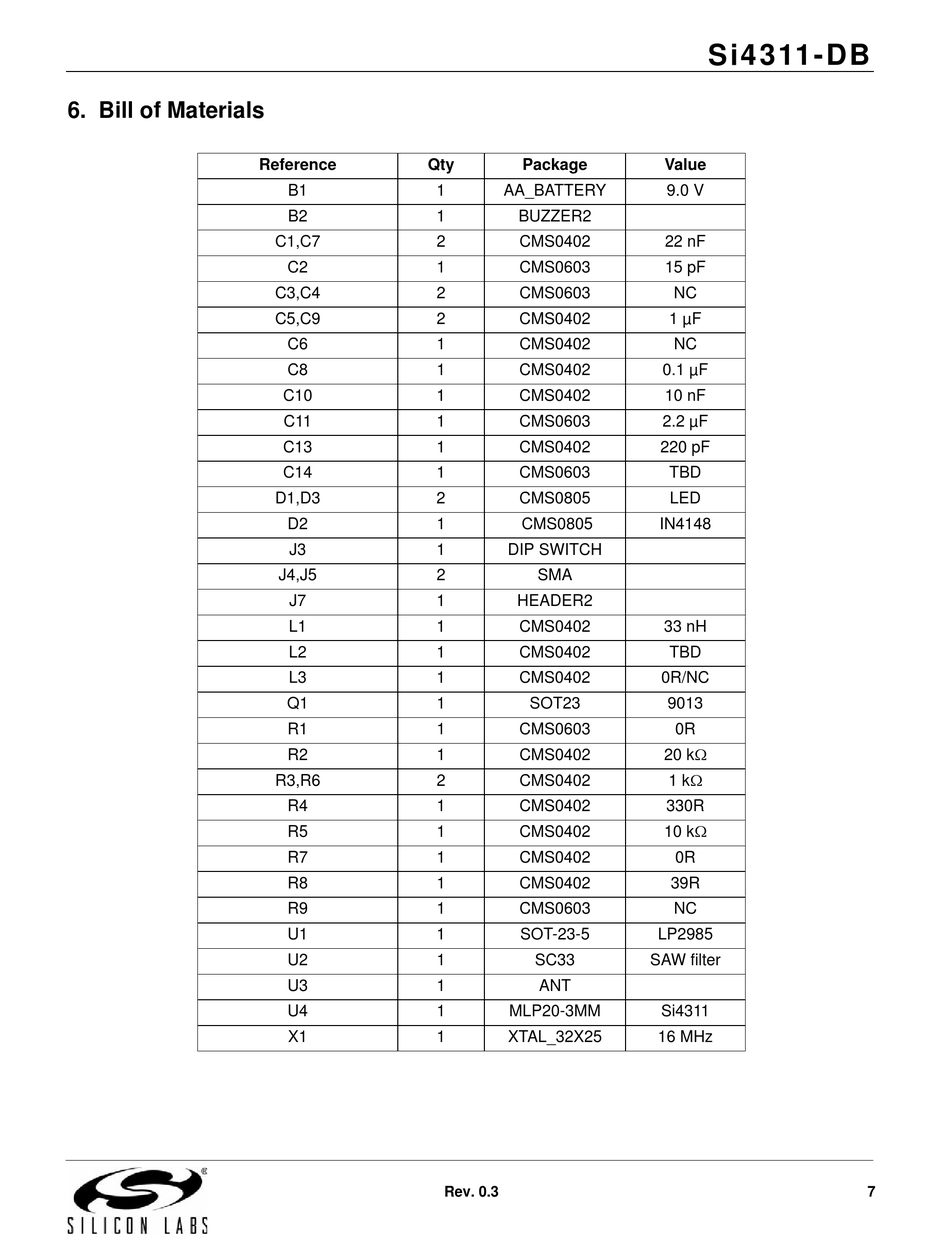

6. Bill of Materials

Reference Qty
B1 1
B2 1
C1,C7 2
C2 1
C3,C4 2
C5,C9 2
C6 1
C8 1
C10 1
C11 1
C13 1
C14 1
D1,D3 2
D2 1
J3 1
J4,J5 2
J7 1
L1 1
L2 1
L3 1
Q1 1
R1 1
R2 1
R3,R6 2
R4 1
R5 1
R7 1
R8 1
R9 1
U1 1
U2 1
U3 1
U4 1
X1 1
Package
AA_BATTERY
BUZZER2
CMS0402
CMS0603
CMS0603
CMS0402
CMS0402
CMS0402
CMS0402
CMS0603
CMS0402
CMS0603
CMS0805
CMS0805

DIP SWITCH

SMA
HEADER2
CMS0402
CMS0402
CMS0402
SOT23
CMS0603
CMS0402
CMS0402
CMS0402
CMS0402
CMS0402
CMS0402
CMS0603
SOT-23-5
SC33
ANT
MLP20-3MM
XTAL_32X25
Rev. 0.3
Si4311-DB
Value
9.0 V
22 nF
15 pF
NC
1 µF
NC
0.1 µF
10 nF
2.2 µF
220 pF
TBD
LED
IN4148
33 nH
TBD
0R/NC
9013
0R
20 k
1 k
330R
10 k
0R
39R
NC
LP2985
SAW filter
Si4311
16 MHz
7
