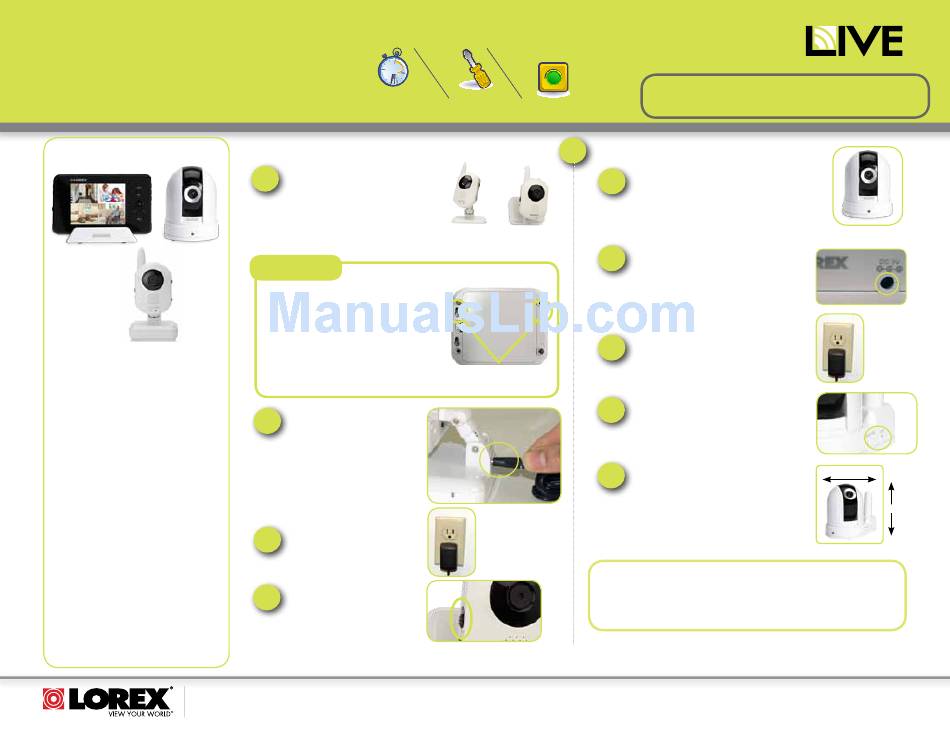

Lorex LW2400 Series Quick Start Manual

WiReLeSS ViDeO HOMe MONiTOR
LW2400/LW2450 SeRieS
Quick STaRT GuiDe
Getting Started
*
*

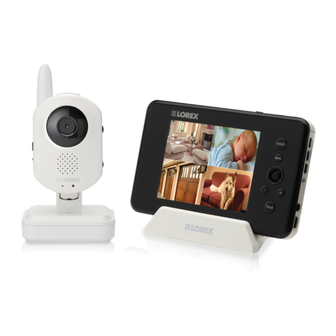

This wireless video home monitor comes with the
following components:
• 1x Video Monitor
• 1x Camera*
• 1x Video Monitor Charging Cradle
• 1x Camera Power Adapter*
• 1x Video Monitor Power Adapter
• 1X mini-USB Cable
• 1x Instruction Manual
• 1x Quick Start Guide
• 1x Driver CD
• 3x Cable Clips*
Optional component:
• 1x microSD Memory Card
• 1x microSD to SD Adapter Card
Check the "Inside the Box" panel on the
product package for configuration.
*
Number of cameras, camera type,
power adaptors may vary by model.
www.lorextechnology.com
Time Tools
Under 20 Minutes*
* Installation time may vary
based on application and
camera location
a. LW2400
Series camera Setup
The Camera can be placed on a flat
1
surface, or wall mounted.
Determine where you want to locate the
camera.
NOTe: Keep cables and wires at least
3 feet (1 meter) away from infants or
young children. Use the included cable
clips as necessary.
OPTiONaL
The camera features mounting holes on the bottom
of the base and can be mounted to a wall if
desired.
Determine the camera position that will give you
the best view before permanently wall mounting the
camera. Ensure the power cable is long enough to
power the camera.
Please refer to the Owner's Manual for a mounting
template and full instructions on how to wall-mount
your camera.
Connect the Power Adaptor to
2
the 5V Input on the back of the
camera.
OPTiONaL: You can use 'AA'
batteries or a rechargable battery
pack to power the camera. Please
refer to Appendix A in the Owner's
Manual for instructions.
NOTe: Battery operation is suggested
for temporary monitoring only.
Connect the power adapter to a
3
power outlet.
Slide the power switch up, to the
4
ON position.
under 15 minutes under 30 minutes under 60 minutes over 60 minutes
Hand Tools Hardware Hi Speed
Skills - easy
Skill Level
Router
Hand Tools Plug & Play connections,
Intermediate
easy
On screen set up
Skill Level
B. LW2450
OR
1
easy Intermediate advanced
Desk/Counter Mount Wall Mount
2
3
4
5
NOTe: Before you install a camera, carefully plan where and how it will be positioned, and where
you will route the cable that connects the camera to the power adaptor. Before starting permanent
installation, verify its performance by observing the image on a monitor when the camera is
positioned where it will be permanently installed. Cameras are rated for indoor installation only.
NOTe: When adding cameras that were not included in the original box, you will need to pair up the
camera with the receiver. Please refer to the camera pairing section of the User Manual.
LW2400/LW2450 Series Quick Start Guide_R2
Router
NOTE: AVOID INSTALLING IN A LOCATION WHICH REQUIRES THE
WIRELESS SIGNAL TO PASS THROUGH CEMENT, CONCRETE AND METAL
STRUCTURES. THIS WILL REDUCE THE TRANSMISSION RANGE.
advanced
Series Pan/Tilt camera Setup
The Camera can be placed on a flat surface or wall
mounted. For wall mounting, optional wall mount
accessory is required. See manual for details.
Determine where you want to locate the camera.
NOTe: Keep cables and wires at least 3 feet (1 meter)
away from infants or young children. Use the included
cable clips as necessary.
Connect the Power Adaptor to the 5V Input on
the back of the camera.
Connect the power adapter to a power outlet.
Slide the power switch located at the side of
the camera, to the ON position.
Use the joystick on the video monitor to Pan/
Tilt the camera.
NOTe: You must be in full-screen mode to adjust
the viewing angle. If the monitor is in quad viewing
mode, press SeQ and then caM to return to full
screen view.
SIMPLY AWARE
™
Desk/Counter Mount
Pan Left/ Right
Tilt uP/ Down
Page 1
