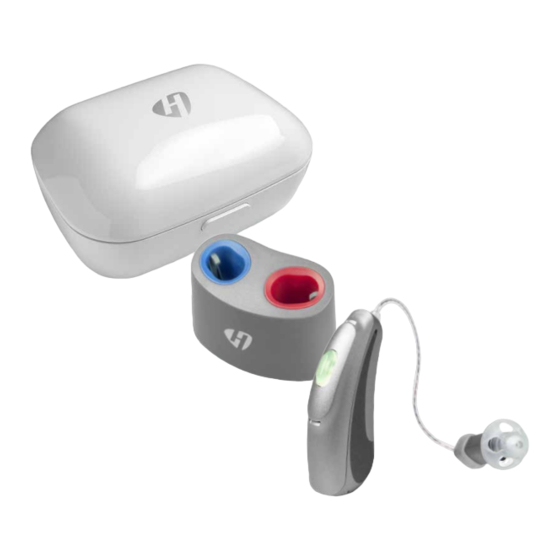

Your Charging Station.
Comfort Charger
(charging station)
Cleaning tool
Space for drying
D
capsule
en
F
Connection to external
e
power source and
charging indicator
light on the back
(micro-USB)
Left hearing system
(marked in blue)
Right hearing system
Comfort
(marked in red)
Charger
Light
Light Charger
Charger
Connection to external power
source (micro-USB)
AQ HD S
Instructions For Use
See also "General Warnings and
EN
Charging slots for hearing systems:
Charging indicator
Safety Instructions", Page 00-00
blue = left, red = right
light (green)
Your Hearing System.
Comfort Power Pack
AQ HD-S
2
3
2
Connection to external
power source and
charging indicator light
Space for
on the back (micro-USB)
earmolds
Charging indicator
1
Tube – connects the hearing system to the receiver unit
light (green)
2
Microphone / Microphone protector
3
Button – Status display when positioning in charging station (LED)
– used to select programs and/or adjust volume (depend-
ing on individual settings)
Connection to external power source
4
and charging indicator light on the
Dome
back (micro-USB)
5
Support – prevents dome and tube from slipping out of the ear
Battery control
button
canal
6
External receiver
7
Earmold
Charging status
display
Side marking
•
0% - 29%
0% - 29%
Red = right
••
30% - 59%
30% - 59%
60% - 100%
•••
60% - 100%
Comfort Power Pack
lock
Conformity to directive
93/42/EEC concerning
0124
medical devices
Setting up / Starting the Charging Station.
•
Charging stations are used to charge your hearing systems.
•
The cover of the Comfort Charger can be closed during charging.
(AQ hearing systems are delivered already fully charged.)
•
Place the charging station on a level surface. Avoid locations with
Interrupting the charging process
1
direct sunlight or other sources of heat. Do not cover the charging
•
Hearing systems can be removed from the charging station or
station (with a towel, for example) while it is charging.
re-inserted at any time during the charging process.
1
•
To start the charging station, please insert the micro-USB plug (a)
•
Removing the hearing systems from the station before they have
on the cable provided into the
finished charging can shorten their running time.
port on the back of the charging
station.
The end of the charging process
Then plug the USB connector (b)
•
Charging time depends on how much power is left in your hearing
end into the USB power adapter
4
provided
systems' batteries, up to a maximum of three hours.
6
and then plug the adapter
•
When the hearing systems are fully charged, the charging station
5
7
into an electrical outlet.
will automatically end the charging process.
The LEDs on the hearing systems will stop flashing and switch to a
6
steady green.
Removing the hearing systems
Hearing system - Charging using the Comfort Charger
•
Once charging finishes, you can remove your hearing systems from
the charging station.
or Light Charger.
•
Switch your hearing systems on.
•
Removing the hearing systems from the station before they have
•
The hearing system has a built-in lithium-ion battery.
finished charging can shorten their running time.
Please only charge or use the hearing system within the
following temperature range:
Charging times
0° to +40° Celsius (32° to 104° Fahrenheit)
100 % charge: 3 hours
•
Charge the hearing system for at least three hours before using for
80 % charge: 90 minutes
the first time.
•
Make sure the hearing system is dry before connecting it to the
!
charging station.
Blue = left
Never pull the hearing aids out of the station by the tubes,
as this can damage the tubes.
Starting the charging process
•
When your hearing systems are situated correctly within the slots,
Using the Comfort Power Pack (optional)
their LED lights will blink green. The hearing systems will be switched
off automatically as soon as they are placed in the charging station.
Hearing system:
•
The charging process will start automatically.
AQ HD-S
FCC-ID: KWC-RICR
•
Charge the Comfort Power Pack for at least three hours before using
for the first time.
•
The Comfort Power Pack has a built-in lithium-ion battery.
•
Connect the Comfort Charger to the Comfort Power Pack and use
the slider on the bottom to lock it into place.
•
Connect the charging cable, then plug it into an external power
source. The Comfort Power Pack and the hearing systems will be
charged at the same time.
While the Comfort Power Pack is connected to an external power
source, the charging indicator light will blink and display current
battery status.
•
When fully charged, the Comfort Power Pack can charge one pair of
hearing systems up to seven times.
To check the Comfort Power Pack's remaining battery capacity, press
the battery control button (status indicators will otherwise remain off
in order to save power).
Please only charge or use the Comfort Charger / Light Charger
or the Comfort Power Pack within the following temperature range:
0° to +40° Celsius (32° to 104° Fahrenheit)
Switching the Hearing System on/off.
50 % charge: 60 minutes
30 % charge: 30 minutes
On/Off
•
To switch a hearing system on or off, press the button with the tip of
your finger and hold it down for three seconds, until the LED begins to
blink.
1x short flash = hearing system switching on2x short flashes = hearing
system switching off
A startup melody will play when the hearing system is switched
The Comfort Power Pack is only usable in combination with the
on.
Comfort Charger.
Adjusting Volume.
No function (deactivated)
With Pushbutton
Volume control: louder
Volume control: quieter
Volume control: right-hand system – louder
left-hand system – quieter
Combination:
Change program – right-hand system
Volume control – left-hand system – quieter
Combination:
Change program – left-hand system
Volume control – right-hand system – louder
With Remote Control
•
Refer to the remote control user guide.
Volume setting
Beeps
Suggested volume level
1 beep
Turning volume up
short beep
Turning volume down
short beep
Maximum volume level
2 beeps
Minimum volume level
2 beeps
