c) Drag bottom handles to 1 and upper handles to 99.

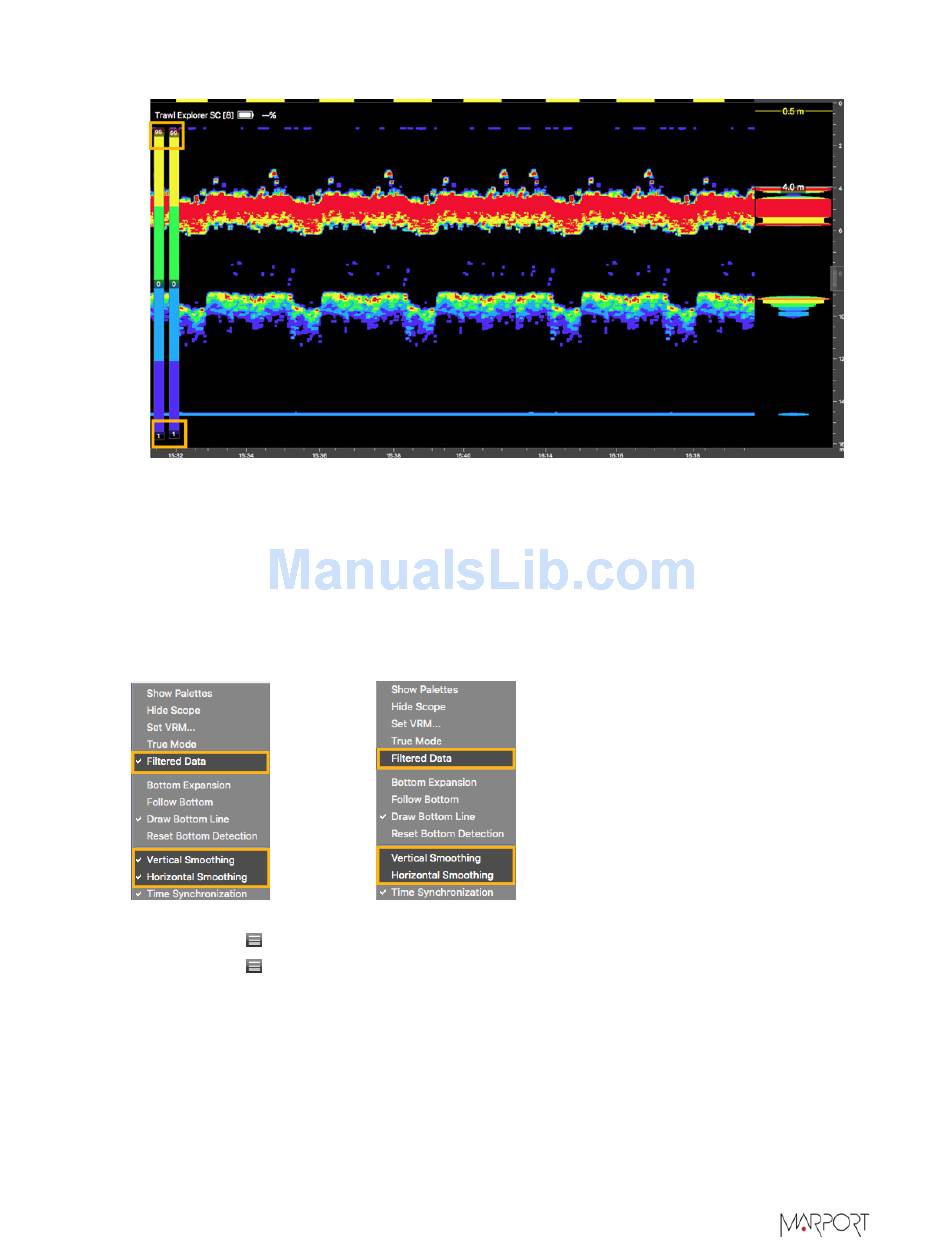

3. By default, Scala applies filters on data to reduce interference. You can remove these filters to
have a display similar to an SC system:
a) Right-click the echogram and click Filtered Data to deactivate it.
b) Again, right-click the echogram and click Vertical Smoothing and Horizontal Smoothing to
deactivate them.
Smoothing and filters on
data activated (default)
a) Click Menu > Expert Mode and enter the password copernic.
b) Click Menu > Receivers.
c) From the system tree view on the left side of the page, click the sensor name.
d) Click Configure next to Filter.
e) From Echograms Filter, select Signal Interference Reduction Low.
Smoothing and filters
on data deactivated
