M4 System - 2 Mac Minis | V2 | Installation
Passive Hydrophone from other brands + Wideband Preamplifier
You can connect passive hydrophones from other brands to Marport wideband preamplifier.
Passive hydrophones can be connected to Marport wideband preamplifier the same way Marport
passive hydrophone is connected.

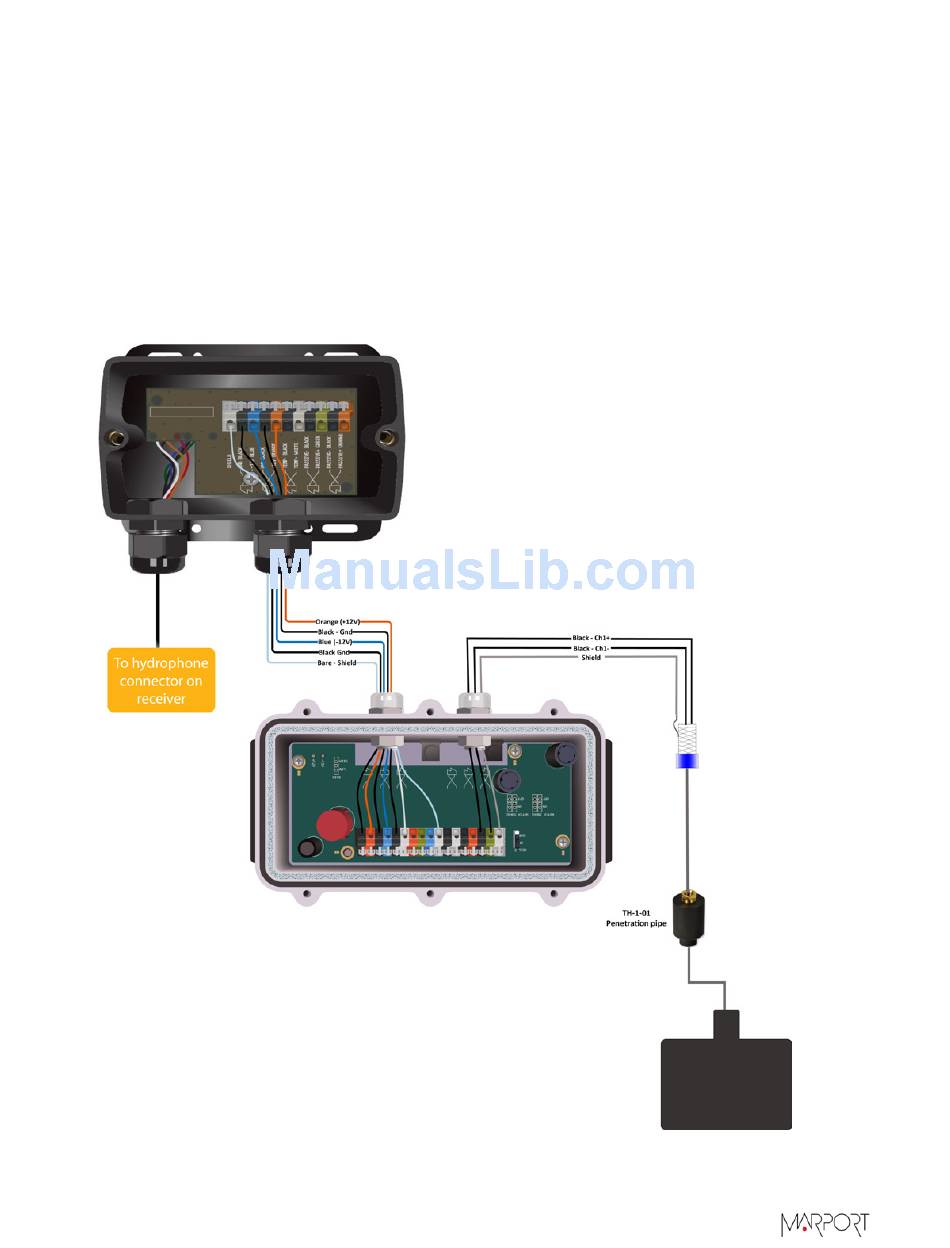

This drawing is an example of connection of a Furuno passive hydrophone with 1 cell.
See
Passive Hydrophone + Wideband Preamplifier
on page 48 to know how to configure the gain
and notch filters on the preamplifier.
From Scala, add this hydrophone to the receiver as active - Hydro NC-1-03 or NC-1-05 +
NC-02-02.
