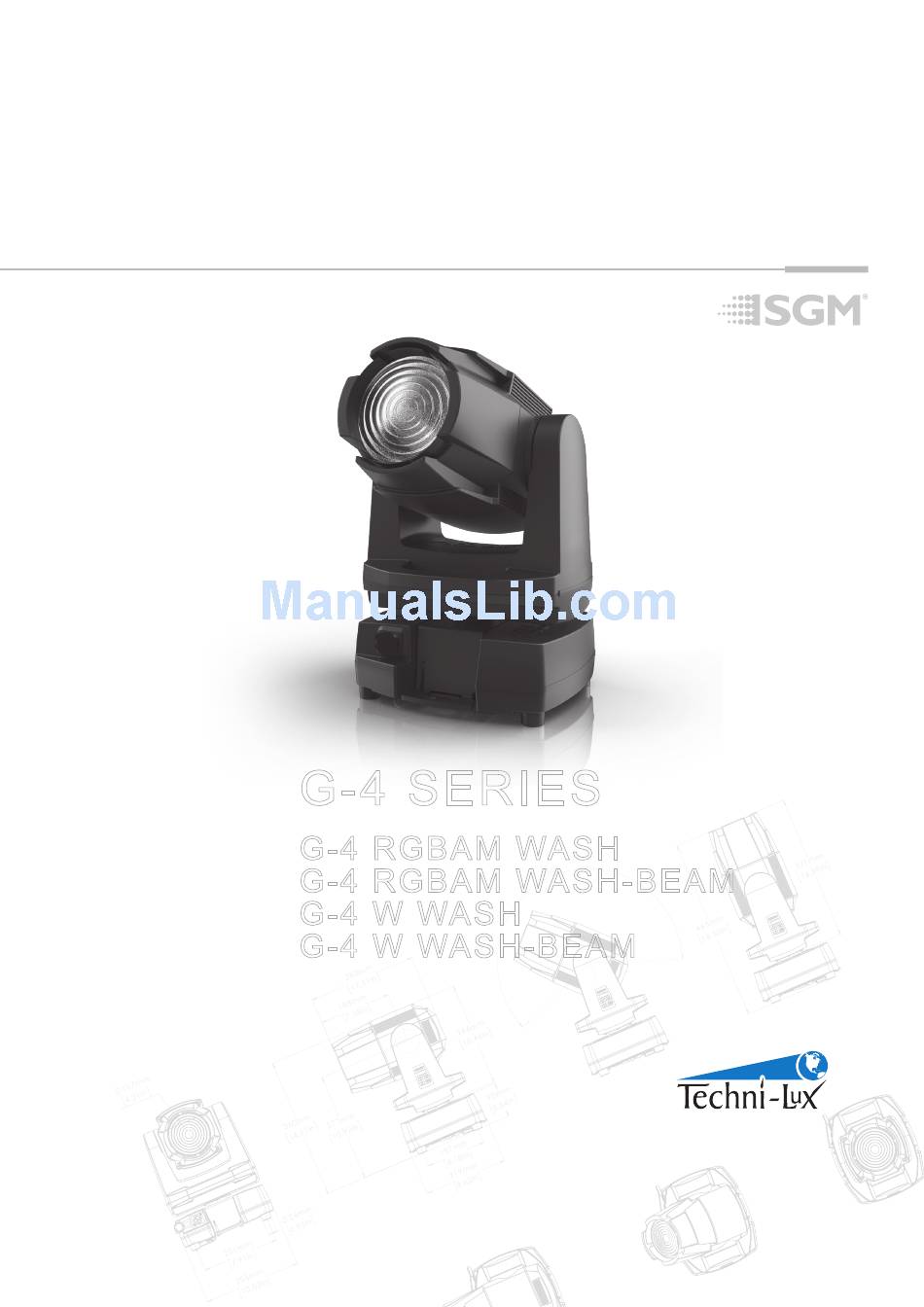

- Page 1 USER MANUAL G-4 SERIES G-4 RGBAM WASH G-4 RGBAM WASH-BEAM G-4 W WASH G-4 W WASH-BEAM Distributor: www.techni-lux.com Phone: 407-857-8770 Fax: 407-857-8771 Email: sales@techni-lux.com...
- Page 2 The SGM logo, the SGM name and all other trademarks in this document pertaining to services or products by SGM or its affiliates and subsidiaries are trademarks owned or licensed by SGM or its affiliates or subsidiaries.
-
Page 3: Table Of Contents
Contents Safety information ........................4 Overview ..........................5 Preparing for installation ......................6 Installing / rigging the G-4 ......................7 Connecting AC power ........................8 Configuring the device .......................8 Connecting to a DMX control device ....................9 Configuring the device for DMX control ..................9 Full color calibration and Color temperature correction ...............11 Internal programs ........................11 Pan / Tilt positions ........................11 Fixture personality settings ....................12... -
Page 4: Safety Information
Read the safety precautions in this section before installing, powering or operat- ing this product. SGM luminaries are intended for professional use only. They are not suitable for household use. Review the following safety precautions carefully before installing or operating the device. -
Page 5: Overview
The lightsource of the fixture is expected to run until about 50,000 hours LM-70/TM-21. This manual covers installation, use and maintenance of the G-4 Series. All documentation is also available on the SGM website: www.sgmlight.com Parts identification and terminology A: Interchangeable front lens... -
Page 6: Preparing For Installation
Preparing for installation Unpacking Unpack the device and inspect it to ensure that it has not been damaged in transport. The G-4 Series is shipped with: • User manual • One Neutrik TRUE1 power input connector, 2 m (78 in.) •... -
Page 7: Installing / Rigging The G-4
Installing / rigging the G-4 The G-4 Series may be installed in any orientation, with base or with ceiling mount. Rigging Always use an omega bracket to rig the fixture. Lock the bracket with the 1/4-turn fasteners. Please note: The 1/4-turn fasteners are only locked when turned fully clockwise. Rigging process Start the rigging process by blocking the work area below, and make sure the work is performed from a stable platform. -
Page 8: Connecting Ac Power
When installing standard type C circuit breakers there will be no limitations due to the fixture in-rush current. For assistance with alternative configurations, contact your SGM representative. The fixture must be grounded/earthed and be able to be isolated from AC power. The AC power supply must incorporate a fuse or circuit breaker for fault protection. -
Page 9: Connecting To A Dmx Control Device
Wireless signal strength (C) Displays the signal strength of the wireless CRMX connection. The wireless signal strength symbol will be flashing if the paired transmitter is out of range. If no transmitter is paired the symbol will be off. Active input type (D) The active input is displayed for quick and simple verification of the input status. - Page 10 Control for:16 Bit intensity, CTC 7,200K / 5,000K, 16 Bit P/T, Continuous Pan, Functions (*FCC, Full Color Calibrated) Please see ”Full Color Calibration and Color Temperature Correction” on page 11. *All the DMX charts are available on the SGM website: http://www.sgmlight.com under the respective products or under request via support@sgmlight.com.
-
Page 11: Full Color Calibration And Color Temperature Correction
Programming the position presets for the internal programs is performed by utilizing the innovative SGM patented system, which lets you determine the position by directly and physically altering the direction of pan / tilt by hand. See below. -
Page 12: Fixture Personality Settings
The G-4 RGBAM features five high-power LEDs. (Red, Green, Blue, Amber, Mint). The fixture operates in RGB calibrated mode which ensures that colors are compatible across the range of SGM fixtures. However the G-4 also offers the ability to utilize the Amber and Mint LEDs only in Color filter emulation mode with full control of each color. -
Page 13: Control Menu
5-35° Zoom 4.4-34° Zoom Available as complete fixture or accessory lens kit Accessories The G-4 is compatible with various accessories. To know more, please visit the SGM website: http://www.sgmlight.com or contact customercare@sgmlight.com. Control menu Level 1 Level 2 Level 3 Function... -
Page 14: Rdm
Go to MENU → MANUAL → STOP PROGRAM A corrupted fixture generates noise/disruptions on the Track and isolate the corrupted fixture. DMX link. Color is uneven The SGM Calibration Data set has been lost Contact your local SGM dealer or support@sgmlight.com... -
Page 15: Ceiling Mount Bracket
See “Connecting fixtures with ceiling mount to a DC power supply and DMX” on page 8 Use a SGM G-4 extension cable, that connects the base to the ceiling mount . Contact your local SGM dealer for information on the extension cable. - Page 16 Attaching the ceiling mount bracket 1. Align the bracket to the head ( the hub ), so all four screws and the pilot holes are aligned. 2. Mount the bracket. 3. Insert the four screws, tighten with 1Nm of torque. 4.
-
Page 17: Service
Apart from the interchangeable front lens, tophat and ceiling mount, there are no user-serviceable components in the fixture. Do not open other parts in G-4, as doing so is likely to damage the ingress protection. Consult your SGM dealer if the fixture operates abnormally, is defective or otherwise in need of service or repair. -
Page 18: Poi Permanent Outdoor Installation
Green flashing: Fixture is on and no DMX is received. • Red flashing: An error message is stored, review via the SGM Service Tool or SGM RDM Addressing Tool. Please contact SGM support for diagnostic help. • Off: Fixture is off or indicator LED is set to auto dimming. -
Page 19: Approvals And Certifications
Cleaning SGM luminaires with IP65 or IP66 rating do not need any cleaning procedures inside the fixture. However, cleaning the front lens may be needed in case of dust, sand or dirt in order to achieve the maximum light output. Exterior housing can be also cleaned to get a better look. -
