Table of contents Important Safety Instructions Parts List System overview Install for an AUTODOME camera Install for a MIC analog camera Install for an EXTEGRA IP 9000 FX camera Troubleshooting Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924...
You can view and print the full version of this Installation Manual with Adobe Acrobat Reader. This user guide is the intellectual property of Bosch Security Systems; protected by copyright. 2016.07 | 2.0 | F.01U.134.924...

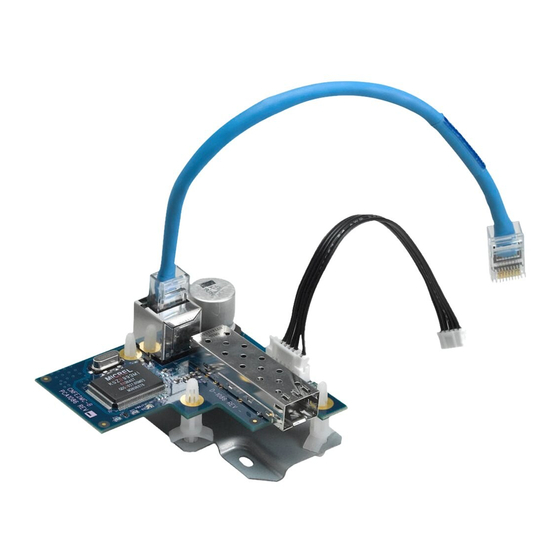

Fiber Optic Media Converter Module (with SFP socket) Metal adapter plate Power harness (black) Three (3) standoff bosses Ethernet patch (jumper) cable (blue) with RJ45 connectors Two (2) M4 Phillips pan screws Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924...
Page 6
For an EXTEGRA camera, the following parts are included in the kit of the fiber optic module: Part Description Fiber Optic Media Converter Module (with SFP socket) Power harness (black) 2016.07 | 2.0 | F.01U.134.924 Installation Manual Bosch Security Systems...
Page 7
Fiber Optic Ethernet Media Converter Kit Parts List | en Part Description Ethernet patch (jumper) cable (blue) with RJ45 connectors Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924...
Single SC Notice! The SFP module is not included with the VG4-SFPSCKT kit; it must be purchased separately. The SFP-25/SFP-26 modules are counterparts; if you use one in the VG4-SFPSCKT module then you must use the other in the CNFE2MC head-end unit. For example, SFP-25 is used in the VG4-SFPSCKT module installed into a VG4 power supply.
Install for an AUTODOME camera | en Install for an AUTODOME camera To install the Fiber Optic Media Converter Module (VG4-SFPSCKT) inside a VG4 Power Supply Box for an AUTODOME camera, complete the following steps. Turn off the power to the VG4 power supply box and remove the cover.
Page 10
Figure 4.2: Placement of standoff pins between base plate and fiber optic module Install the fiber board (attached to the metal base plate) in the power supply box as illustrated in the following figure. Secure the plate using the two screws. 2016.07 | 2.0 | F.01U.134.924 Installation Manual Bosch Security Systems...
Page 11
Figure 4.4: Move bale clasp up – Line up the SFP module with the port on the VG4-SFPSCKT module and slide it into the port until you hear the catches engage. Attach the supplied power harness (black) to its connector on the fiber optic module.
Page 12
RJ45 connectors) long enough to connect the camera and the power supply box. 10. Route the appropriate fiber optic cable through the conduit hole (2) on the power supply box that is aligned with the VG4-SFPSCKT module (1). Figure 4.5: Route cable into power supply box 11.
Install for a MIC analog camera | en Install for a MIC analog camera To install the Fiber Optic Media Converter Module (VG4-SFPSCKT) inside a MIC IP Power Supply (to provide fiber optic connections for a MIC550, MIC550IR, or MIC612 camera), complete the following steps.
Fiber Optic Ethernet Media Converter Kit Install for an EXTEGRA IP 9000 FX camera To install the Fiber Optic Media Converter Module (VG4-SFPSCKT) inside an EXTEGRA IP 9000 FX camera, complete the following steps. Remove the three (3) screws that hold the RJ45 coupler assembly in place inside the EXTEGRA camera.
Page 15
Align the screw holes on the fiber optic module to the screw holes from which you removed the screws for the RJ45 coupler assembly. Press the module down until it is secure. Replace the screws. Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924...
Page 16
| Install for an EXTEGRA IP 9000 FX camera Fiber Optic Ethernet Media Converter Kit Attach the supplied power harness (black) to its connector on the fiber optic module. 2016.07 | 2.0 | F.01U.134.924 Installation Manual Bosch Security Systems...
Page 17
Fiber Optic Ethernet Media Converter Kit Install for an EXTEGRA IP 9000 FX camera | en Insert the RJ45 plug. Close the camera as described in the camera Installation Manual. Bosch Security Systems Installation Manual 2016.07 | 2.0 | F.01U.134.924...
Check power to CNFE2MC: – If Power LED is Green, then check data link Invalid Fiber Link Check fiber connection to VG4-SFPSCKT: – If Red LED is present, then the fiber link is missing. If the LED is Flashing Red, then Check the fiber connection to the CNFE2MC: –...
