PCM-2604C-AE
PCM-2602C-AE
2-Ports Isolated RS-232 mPCIe, DB9
2-Ports Isolated RS-422/485 mPCIe, DB9
Startup Manual
Packing List
Before installation, please make sure that you have:
1. mPCIe card with controller x 1
2. 2*DB9 IO plate with bracket x 1
3. FFC cable x 2
4. Startup manual x 1
5. Warranty card x 1
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Documentation/Software Support Guide
The driver can be downloaded from the product website.
* Supports Windows XP/7/8/10, and Linux
Installation
PCM Module with iDoor technology supports following
iAutomation Computing Platforms:
• Standard mount UNO-2000
• DIN-Rail mount UNO-1000
• Wall mount UNO-3000
• 4:3 Panel mount TPC-xx51T/xx82, TPC-2000/5000
• 16:9 Panel mount TPC-xx51WP/xx81WP, TPC-2000/5000
See the following pages for installation of TPC Embedded
Panel Computers and UNO Embedded Computers.
mPCIe card cable connection
Note:
COM A to CN3
COM B to CN4
For more information on this and other Advantech
products, please visit our website at
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com.tw/eservice
This manual is for PCM-2602C-AE/PCM-2604C-AE.
Part No. 2001260000
Printed in China

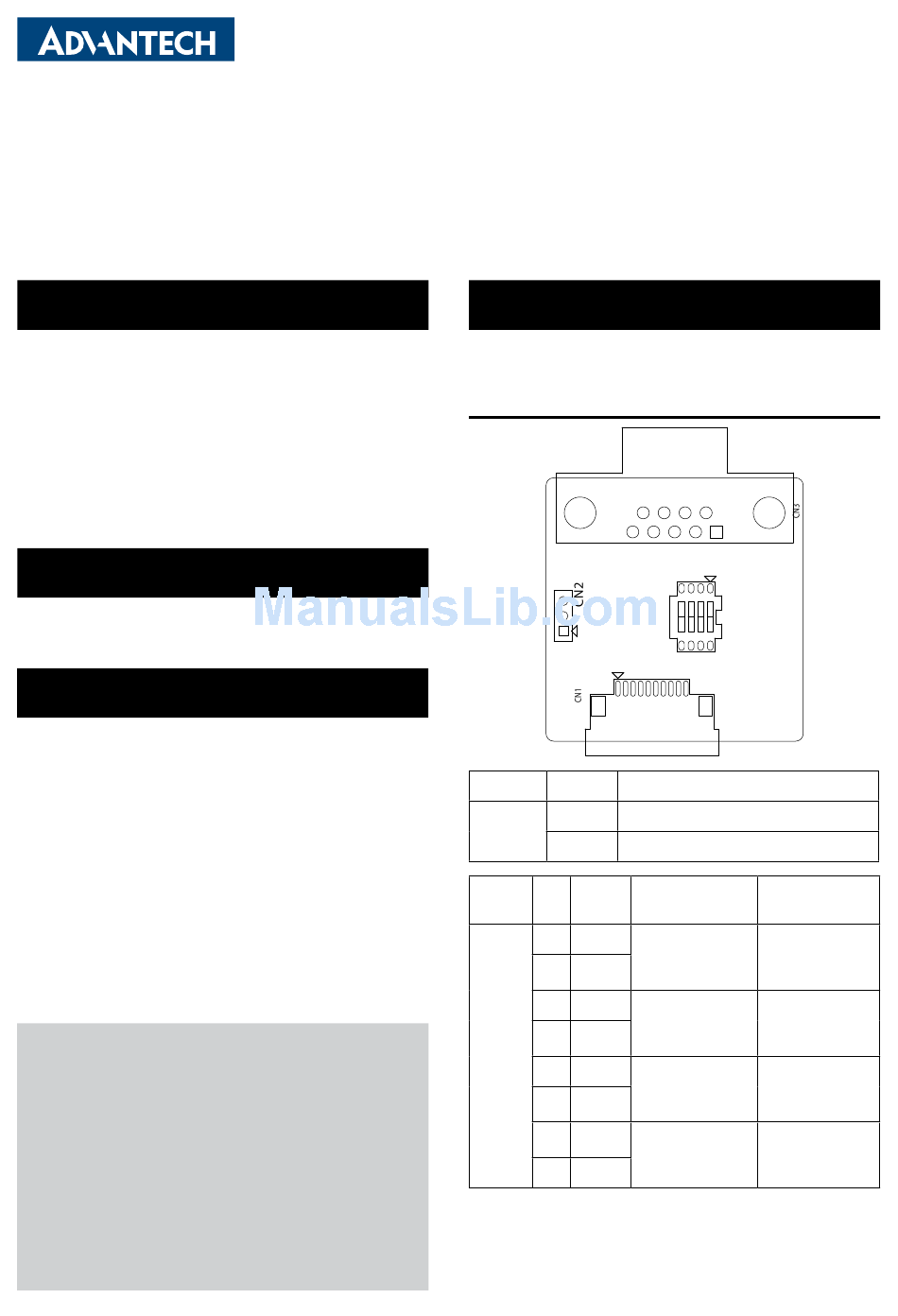

Jumper Settings
You can set the terminator resistor via jumper setting if
necessary to match impedance. See below.
PCM-2602C Jumper Settings
Jumper
CN2
Switch
SW1
1st Edition
march 2018
SW1
Pin
Description
1-2
RS-422 Master
2-3
RS-485/RS-422 Slave (Default)
Pin Set-
RS-422
ting
Description
1
ON
120 Ohm be-
tween Tx+/Tx-
3
OFF
2
ON
120 Ohm
between Rx+/
4
OFF
Rx-
1
OFF
300 Ohm be-
tween Tx+/Tx-
3
ON
300 Ohm
2
OFF
between Rx+/
4
ON
Rx-
PCM-260X Startup Manual 1
RS-485
Description
120 Ohm be-
tween Data+/
Data-
Invalid
300 Ohm be-
tween Data+/
Data-
Invalid
