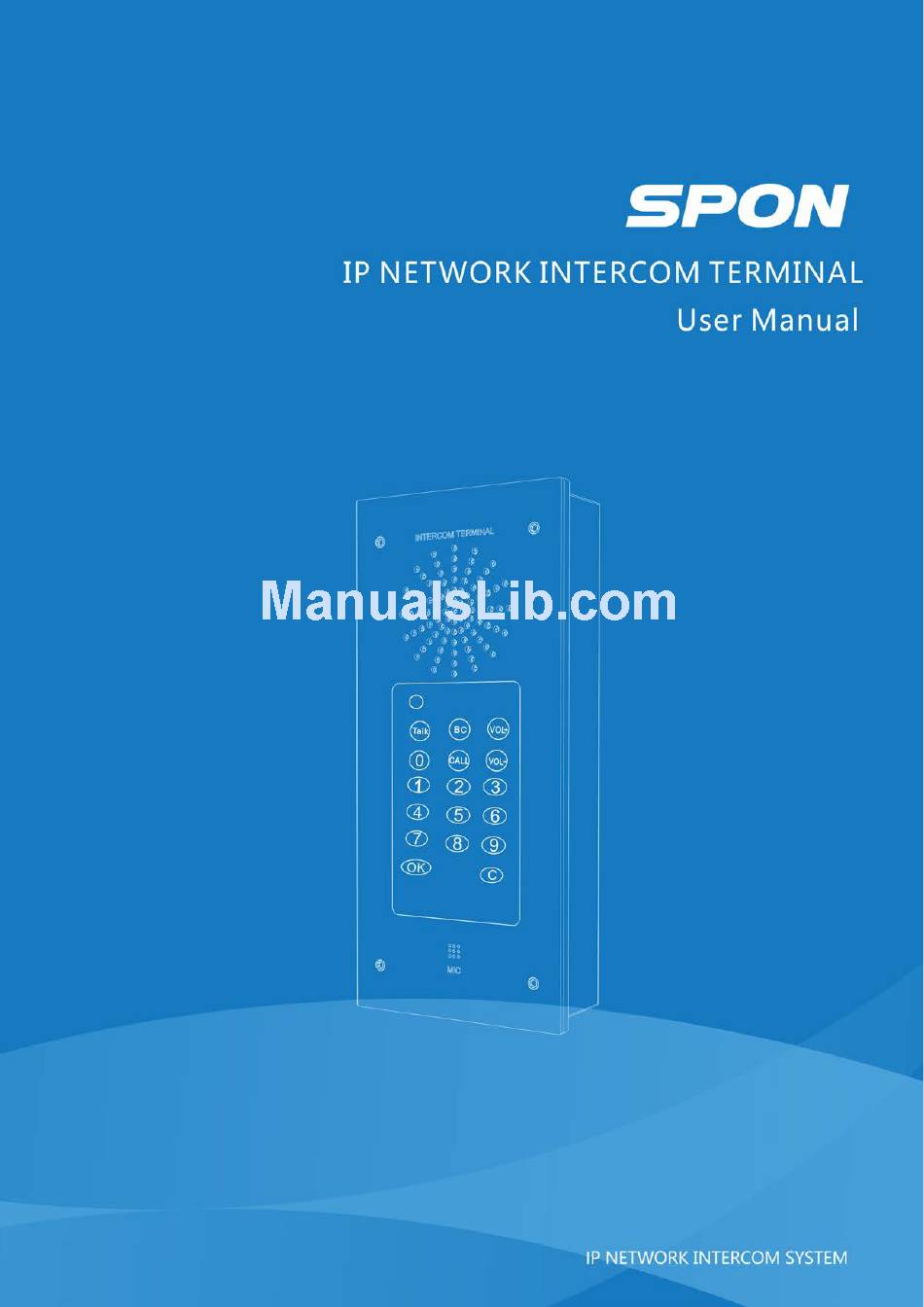

  • Page 1 IP Network Intercom Terminal User Manual...
  • Page 2: Table Of Contents

    IP Network Intercom Terminal User Manual Contents Summarize ........................................1 Safety precaution ......................................1 Product Presentation ......................................2 Hardware Interface Introduction..................................2 Connection Diagram ......................................3 Introduction ........................................4 Packing List ........................................4 Basic Network Setting ...................................... 5 Basic Function......................................... 6 Initiate Intercom .........................................
  • Page 3: Summarize

    IP Network Intercom Terminal User Manual Summarize Safety precaution Please abide by the warning and the relevant safety tips. Please take this manual in convenient place after you reading the guide for future reference. Warning The sign means there is potential safety hazard, when operate wrong may result in death or serious injury. The sign is used to remind the user that attached is the important operation and maintenance data.
  • Page 4: Product Presentation

    IP Network Intercom Terminal User Manual Product Presentation IP network intercom terminal, which is embedded with independent intellectual property rights of IP Audio digital network audio technology, it`s equipped with power input interface, alarm input port and alarm output port etc. Standard double-side box size, it can be embedded into the walls or exterior, high-grade aluminum wiredrawing panel.
  • Page 5: Connection Diagram

    IP Network Intercom Terminal User Manual ①Network input port Insert with the server related cable to make the terminal login normally. ②Control panel interface For debugging and temporary terminal configuration using. ③Audio output This port output the restored audio signal, it can be used as an audio source and access to the active speaker etc. ④Power input Access the 12V DC power supply to this port, it can prevent the power joint reverse and protect circuit.
  • Page 6: Introduction

    IP Network Intercom Terminal User Manual Introduction Packing List IP network paging microphone contains the following accessories. Please check the accessories before installation, if you find any missing, please contact your supplier. (1)IP Network Intercom Terminal 1 pc (2)AC Adapter (DC12V/2A) 1pc (3)Waterproof Joint (M16)...
  • Page 7: Basic Network Setting

    IP Network Intercom Terminal User Manual (6)Allen driver 1pc (7)Socket head screw (M3*8) 1pc (8)Quick Install Manual 1pc (9)Certification and warranty card 1pc Basic Network Setting Connected the cable as per the quick installation guide and powered on, then revise the terminal network paramet ers according to the live environment.
  • Page 8: Basic Function

    IP Network Intercom Terminal User Manual t a computer is only corresponding to one target terminal. 3.The factory default terminal ID number is 1, the equipment IP address is 192.168.1.101, server IP address is 192.1 68.1.13. Basic Function Initiate Intercom 1).
  • Page 9: Copyright Announcement

    Copyright Announcement Copyright The copyright is reserved of the SPON Communication Technology Co.,LTD( abbreviation SPON ),if without the permission of the company in written form, any company and personage shall not arbitrarily excerpt, copy mentioned file information, and shall not spread in any forms.
