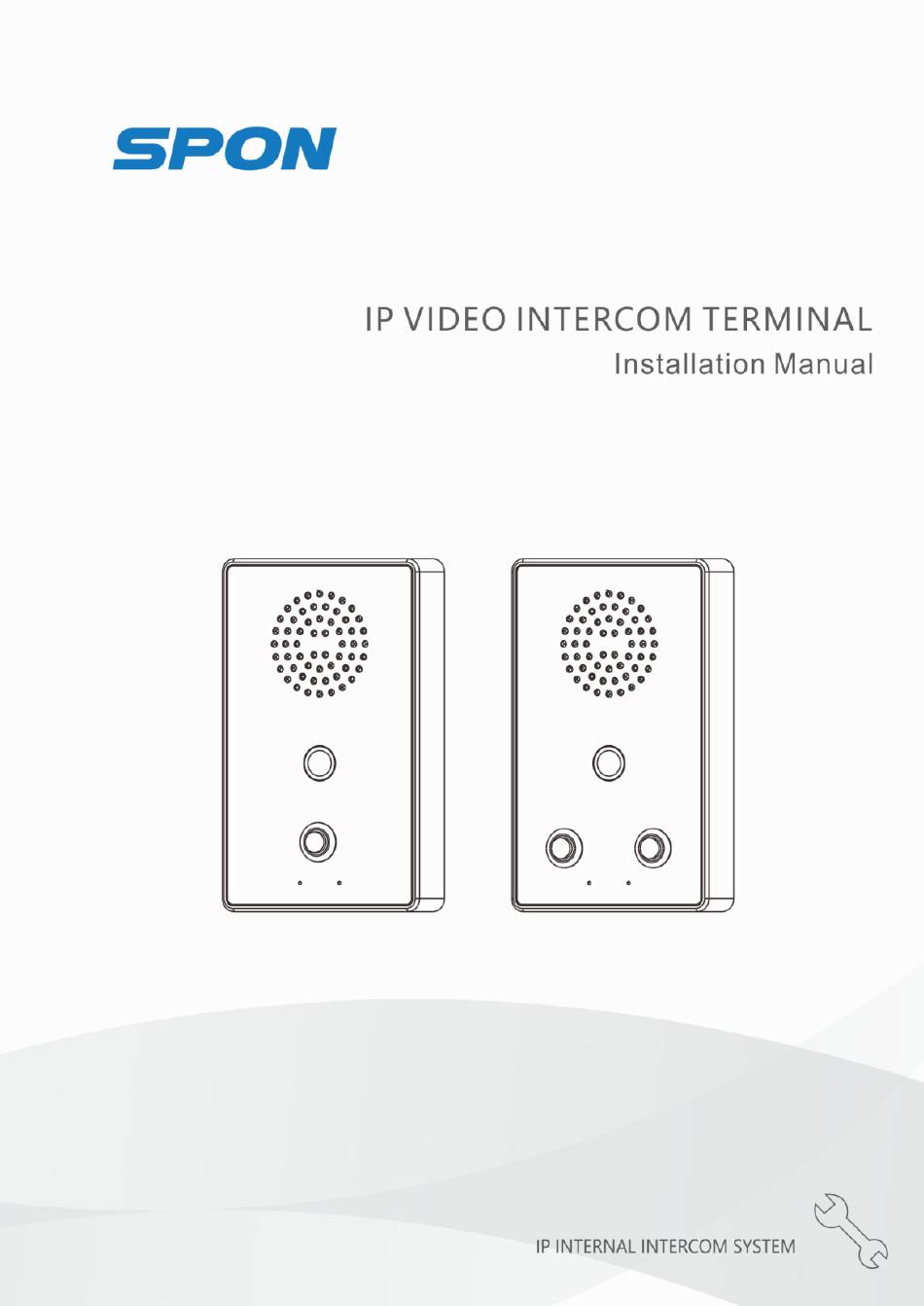

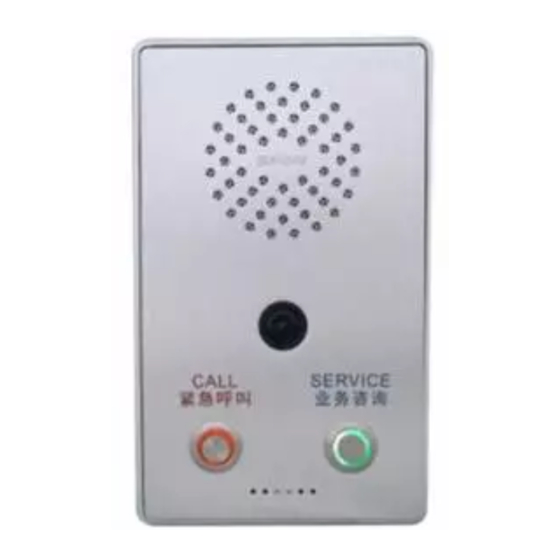

- Page 2 IP video intercom terminal installation manual Interface introduction Front Back [Front] ①Speakers: amplify the remote voice. ②Camera: restore the local video. ③Call button (one button / two buttons for options): press any button to call the target ④Pickup microphone: pick up local voice. terminal.
- Page 3 IP video intercom terminal installation manual [terminal parameter], click "send parameters" button to complete the IP parameters Settings. Wiring Installation diagram Installation description 1. Drill the wall according to the installation diagram of opening pole position, then insert five plastic expansion sleeves into the drilled hole. 2.
- Page 4 IP video intercom terminal installation manual Specification、functional parts,and parameters power input 24V/1A Alarm input interface/alarm output interface/network functional parts interface/power interface/record input interface/cascade interface Network protocol TCP/IP、UDP、ARP、ICMP、IGMP、HTTP、SIP ESD resistance contact discharge +-2kv Audio sampling 8kHz～44.1kHz, 16bit Camera CMOS Audio delay <...
