Summary of Contents for Spon XC-9031V
-
Page 2: Table Of Contents
Content Summary ........................................... 1 Safety precaution ......................................1 Product introduction ......................................2 Features ..........................................2 Hardware interface introduction ..................................3 Introduction ........................................4 Packing list ......................................... 4 Installation .......................................... 5 Wiring ..........................................6 Basic network settings ...................................... 6 Interface description ......................................7 Terminal list settings ...................................... -
Page 3: Summary
IP Video Intercom Paging Console User Manual Summary Safety precaution Please abide by the warning and the relevant safety tips. Please take this manual in convenient place after you reading the guide for future reference. Warning The sign means there is potential safety hazard, when operate wrong may result in death or serious injury. The sign is used to remind user of this equipment is attached the important data of operation and maintenance. -
Page 4: Product Introduction

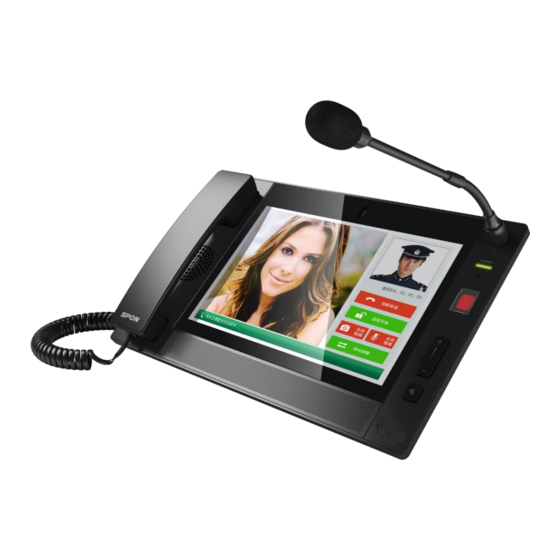

IP Video Intercom Paging Console User Manual Product introduction IP video intercom paging console built-in independent intellectual property rights IP Audio digital network technology, equipped with power input interface, SD card interface ( TF card interface ), audio input output interface, RJ45 network interface, built-in CMOS color camera and so on. -
Page 5: Hardware Interface Introduction
IP Video Intercom Paging Console User Manual Hardware interface introduction Front ①Microphone pole socket: insert the microphone pole, collecting audio. ②Working indicator: offline status is red, device has login to the SIP sever is green. ③Reset interface: Use the tweezers to rest. ④Emergency broadcast: press "emergency"... -
Page 6: Introduction
IP Video Intercom Paging Console User Manual ④Power interface: connect with power DC12V/ 3.3A. ⑤Line output interface ⑥Line input interface ⑦Handset interface ⑧USB interface ⑨SD card slot ⑩Camera: Adjust the camera angle Introduction Packing list IP video intercom paging console is including the following fittings, please check all the fittings before installation. Please contact your supplier if there is any missing. -
Page 7: Installation
IP Video Intercom Paging Console User Manual （7） Certification 1 （8）Quick Installation manual 1PCS Installation （1）Install the microphone pole groove aim at corresponding pedestal groove, as following picture: （2）Tighten knob direction as following picture. -
Page 8: Wiring
IP Video Intercom Paging Console User Manual Wiring Basic network settings Connected IP video intercom paging console and power on. Please revise the console parameters as per the live environment, there are below 2 methods: Touch screen operation Select “Setting” option, then enter the password (the default is 123456) on the pop-up interface. （2）Device ID and server IP parameters can be set on the system info interface, and device IP and defaulted gateway can be set on the network interface. -
Page 9: Interface Description
IP Video Intercom Paging Console User Manual （3） Click “OK”, the IP address will be effective （Note: the device ID No and IP address can`t be same with other terminals） . Web page mode Enter into the IP video intercom paging console web interface, then modify the parameters according to the environment, after setting completed, click “save”. -
Page 10: Terminal List Settings
IP Video Intercom Paging Console User Manual Terminal list settings It can customize each terminal name according to the actual situation in the basic settings of the terminal , please refer to the server software operation manual for details. Zone list settings It can customize each zone name or user’... -
Page 11: User-Define Terminal Parameters
IP Video Intercom Paging Console User Manual User-define terminal parameters Login web page （1）Please input the video paging console IP address to the browser address bar (the factory default IP address is 192.168.1.101), then enter. （2）Enter the user name(admin) and password(admin) in the web page(the default is admin) （3）Click “Login”... -
Page 12: Network Parameters
IP Video Intercom Paging Console User Manual Network parameters The meanings of the parameters are as follows: SIP account The ID number of the terminal is 1 by default and can not be repeated with other number/passwo terminals. The password is the server password, and the default is 1234. Network Static IP: set static IP by default, user defined IP address and other information. -
Page 13: Talk Parameters
IP Video Intercom Paging Console User Manual Talk parameters The meanings of the parameters are as follows: Set ON or OFF the talk module, which is enabled by default. Disabled terminal, Talk module screen have not talkback module Set up terminal talk mode, which is enable by default, when disable, press the talk Auto Answer key to turn on the talk When enabled, the handset can be hung up to end the talking, and it can not end the... -
Page 14: Monitor Parameters
IP Video Intercom Paging Console User Manual The meanings of the parameters are as follows: Set the broadcast function ON or OFF, the default is enable; Disabled,terminal Broadcast module screen has not broadcast module When enabled, the handset can be hung up to end broadcast.(the default is Handset hang up disabled) When setting broadcasting, the input channel of sound source can choose... -
Page 15: Conference Parameters
IP Video Intercom Paging Console User Manual Set monitor, the output channel of sound source can be selected for loudspeaker, Output channel receiver loudspeaker and line output. When multiple terminals are monitored circularly, the monitoring interval of each Cycle time terminal is set and monitor the next terminal according to the set time. -
Page 16: Alarm Parameters
IP Video Intercom Paging Console User Manual Alarm parameters Set to turn on or turn off the alarm module , the default is disabled. When enabled, the terminal screen will have an alarm module, and users can initiate alarm to trigger the audio file preset by the target terminal or partition play server. (Please refer to the “... -
Page 17: Offline Parameters
Enable automatically upgrade and enter the correct server address and port in the "Upgrade Address" field (format: http://server IP:port/firmware/XC-9031V/, for example http://192.168.1.13:80/firmware/ XC-9031V/), after the terminal is Auto upgrade powered on, it will automatically get the update program from the server for firmware upgrade. -
Page 18: Picture Library
IP Video Intercom Paging Console User Manual Click "Browse" to upload the audio files that need to be changed. Click the "Update" button to update the audio files. It will be effective after rebooting. Note: prompt tone only supports WAV format of 8K or 22K. Picture library Users can customize the background of audio conference and video command according to their requirements, click "Browse"... -
Page 19: Firmware Update
IP Video Intercom Paging Console User Manual Firmware update On the firmware upgrade page, click “Browse”, select the firmware upgrade file provided by the manufacturer, and click the “Upgrade” button to start upgrade. Note: please do not cut off the power during the upgrade process, it may cause upgrade failure and device broken. The upgrade process will be 120s, the device and the web page will reboot automatically after reboot). - Page 20 IP Video Intercom Paging Console User Manual （2）Favorites In the talk module, select "Favorites" and click the target terminal to initiate talk. Note: the terminal in the favorites is added in settings. Users can add some frequently called terminals to the favorites to realize convenient and quick call.
- Page 21 IP Video Intercom Paging Console User Manual When talking, two way visual talk will be realized if the terminal of other side carries a camera. In the process of talking, remote unlock, call transfer and PTT talk are also available. Remote unlock In the process of talking, click "remote unlock", IP video intercom paging console can trigger short-circuit output of the other side terminal, and control the computer of the other side to open the electronic door clock.
-
Page 22: Multi-Call
IP Video Intercom Paging Console User Manual Multi-Call Please enable the multi-party talk function in the web page " System Parameters " in advance. During the call, click the “ Multi-call ” button, enter the third-party ID number in the pop-up digital keypad, and press the dial button to initiate the tripartite talk. -
Page 23: Call Transfer
IP Video Intercom Paging Console User Manual Call transfer During the talking, click the call transfer button, input the transfer target terminal ID number, and then click the dial button, the IP video intercom paging console off the current terminal intercom and automatically call to the transfer target terminal. If the transfer target terminal is not online, the local subtitle prompt "target is not online", stay in the transfer interface, click again the transfer icon to enter the talk interface. -
Page 24: Offline Talk
IP Video Intercom Paging Console User Manual Offline talk When terminal is offline, input the call target ID+@+IP+@+IP port on the dial pad, and then click the call button to make an offline call. Offline parameters can also be configured via web page to enable offline intercom function: Method 1:Set the offline parameters in the “Basic Settings”-“Intercom Parameters”... -
Page 25: E-Map
IP Video Intercom Paging Console User Manual E-map The talk module [all terminals] interface supports terminal grid and electronic map display. The default is terminal grid mode. Click the icon at the bottom right of the screen to switch the view to electronic map mode. Note: The electronic map shows the map set in the server. -
Page 26: Refresh Terminal
IP Video Intercom Paging Console User Manual Refresh terminal In the talk module [all terminals] interface, click the icon at the bottom right of the screen, and then click the refresh terminal button again , The terminal data will be reacquired. Broadcast Emergency Broadcasting Click the terminal "emergency broadcasting"... - Page 27 IP Video Intercom Paging Console User Manual 1) Add trigger: in the Service Software Schedule task, click Add Task - Add Trigger, and selects "Event" on trigger, Event type selects " Alarm ", Trigger port selects “ 1 ”, and then check the Event Terminal, click " Save " after setting up. 2) Add operation: when enter into the add operation interface, check the terminal that receives the alarm broadcast in the target area, and then click the alarm broadcast button below.
- Page 28 IP Video Intercom Paging Console User Manual Zone broadcasting （1）Select “Select All” in the broadcast module to display the list of all zones. Select the target zones in the zone list and click “Source Selection” to select the source and volume. (2) Sound source selection Microphone input: The sound source is the microphone rod input, and the user performs real-time talk and broadcast from the microphone rod to the target zones...
-
Page 29: Monitor
IP Video Intercom Paging Console User Manual Terminal broadcast Select “Select All” in the broadcast module to display the list of all terminals. Select the target terminal in the terminal list, click “Source selection” to select the source and volume, and click the “Start Broadcasting” button to initiate the broadcast. Monitor IP video intercom paging console can monitor to one or all terminals online at the same server. - Page 30 IP Video Intercom Paging Console User Manual Note: If the monitored terminal has a camera, it can be video monitor at the same time. Single Monitor/loop Monitor Select all terminal in the monitor module to perform single or loop monitor. （1）...
-
Page 31: Conference
IP Video Intercom Paging Console User Manual monitored. , IP video intercom paging console stops monitor. Conference IP video intercom paging console can initiate audio conferences and video command conferences, and supports the acquisition of conference files from the USB flash drive for HDMI display, which can control and manage conference participants. （1）Audio conference. - Page 32 IP Video Intercom Paging Console User Manual Invite participants. After the conference is created successfully, click the “Invite people” button the left bottom to check the participants, and click OK. After confirmed by inviter, inviter successful join the conference.
- Page 33 IP Video Intercom Paging Console User Manual Note: After the conference starts, the time at the top left of the screen represents the time of creating the conference and the duration of the conference. （2）Video command conference Video command conference: Command and dispatch voice and picture synchronization of multiple terminals. After the video command conference is initiated, the invited party automatically enters the conference.
- Page 34 IP Video Intercom Paging Console User Manual The invitee join directly into the video command conference without invitee confirmation. upload files During the conference, the files required for the conference can be uploaded to the main screen of the terminal to facilitate conference control (if the display is connected, the conference file can be displayed by HDMI mode).
- Page 35 IP Video Intercom Paging Console User Manual 3）In the main conference interface , you can click the page up and down keys to switch pictures Apply for a speech At the conference, by default the host speech is opened (The microphone icon is on ), Other participants by defaults close ) The host can click the microphone icon to open the participant’s microphone the speech(The microphone icon is off...
- Page 36 IP Video Intercom Paging Console User Manual 3）Initiate voting ①To create a vote,【Basic Settings】-【Conference Settings】in the server,select“Voting Management”and press “+”button to create a vote. Voting theme: the title of the vote. Voting content: each line represents a voting topic, the format requirements are (vote title: answer 1, answer 2, answer 3...), the voting options are separated by commas, and the multiple choices are separated by semicolons.
- Page 37 IP Video Intercom Paging Console User Manual ②After the voting is created, during the conference, the host clicks the “Initiate Voting” button in the lower left corner, and the voting option created by the service software will pop up, select the corresponding voting, and press “Start voting”, the conference participants will receive the conference voting initiated by the host.
- Page 38 IP Video Intercom Paging Console User Manual ③Conference participants can select the corresponding option directly on the screen and press the “Submit” button to complete the voting. ④After the conference participants submit the vote, the host's voting interface can directly display the number of votes. Press "End Vote"...
- Page 39 IP Video Intercom Paging Console User Manual Invite participants:...
- Page 40 IP Video Intercom Paging Console User Manual Dialpad invitation: input the target terminal ID number in the Dialpad, click the button to invite individual person. Conference roll-call: after the participants entered the conference, all of the participating terminal microphones are off besides the host (The microphone icon shows ).
-
Page 41: Alarm
IP Video Intercom Paging Console User Manual Alarm Alarm: initiating an alarm action to trigger the audio file preset by the target terminal or the partition play server . The operation is as follows: First select the target terminal or partition, and then press the "Alarm Information Selection" button to select the alarm audio file. -
Page 42: Settings
IP Video Intercom Paging Console User Manual Settings input Click the setting, the terminal password (default is 123456), which can be used to set related parameters such as network parameters and function parameters. System Information: Set the device ID and sip server parameters of the IP video intercom paging console. Network parameters: Set the IP address, default gateway, subnet mask, and other information of the IP video intercom paging console. - Page 43 IP Video Intercom Paging Console User Manual Local Video: View local video and adjust the camera angle to view the adjusted video. Function settings: Setting loop monitor time and whether the intercom interface, broadcast interface, and monitor interface display and enable the screen capture function, HDMI extension and other functions. It will be effective after click save.
- Page 44 IP Video Intercom Paging Console User Manual System tool settings: set the system language, reboot the device, restart the application. Add favorites: ser can add some frequently called terminals to the favorites, and the collected terminals can be displayed in the intercom interface favorites, and user can use the favorites to quickly initiate intercom to the target terminal without searching for the terminal in the terminal list.
-
Page 45: Fault Exclude
IP Video Intercom Paging Console User Manual Fault exclude IP Video Intercom Paging console can not log in to the server normally？ 1. Check if the service software and the main control unit are normally turned on. Before you open the service software, you need to turn off all firewalls (including the firewall that comes with the system and other firewalls included in the anti-virus software). -
Page 46: Copyright Statement
Only for private use, downloading and printing of the manual is not prohibited when it is spreading on internet and media. No part of the manual is allowed to be reproduced or used for commercial purpose. And SPON shall take no responsibility for any losses or damages caused by the illegal reproduction and conversion of the manual.
