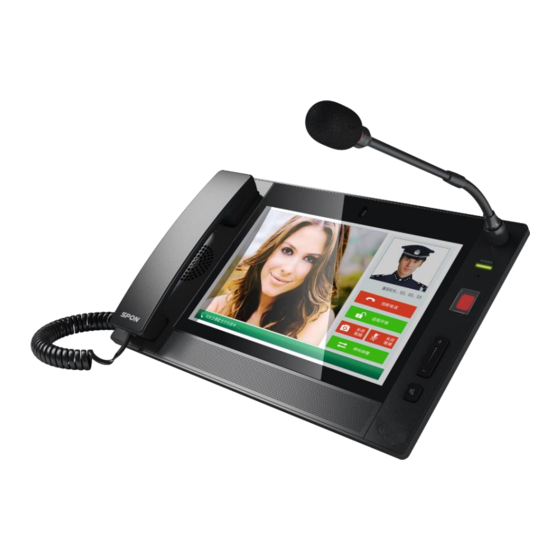

Spon XC-9031V Installation Instructions

Hide thumbs Also See for XC-9031V:

Table of Contents

Need help?

Do you have a question about the XC-9031V and is the answer not in the manual?

Page 2 IP Video Intercom Paging Console Installation Instructions Interface description Front ①Microphone pole socket: insert the microphone pole, collecting audio. ②Working indicator: offline status is red, device has login to the sever is green. ③Reset interface: Use the tweezers to rest. ④Emergency broadcast: press "emergency"...
Page 3 IP Video Intercom Paging Console Installation Instructions Wiring Installation diagram The device supports the optional bracket for wall mounting. The installation method is as follows: Fix the bracket to the wall with a plastic expansion sleeve (F7) and self-tapping screws (BA4*25), and then fix the device on the bracket. IP video intercom paging console settings Network parameters settings （1）Click【setting】...
Page 4 IP Video Intercom Paging Console Installation Instructions Specifications, Functional Unit and Parameters Power input DC12V/3.3A or PoE IEEE802.3af ≤20W Power consumption Network protocol TCP、UDP、ARP、ICMP、IGMP、HTTP、FTP、SIP Network chip rate 10/100Mbps Audio coding MP2/MP3/PCM/ADPCM Audio sampling 8kHz～44.1kHz， 16bit, 8kbps-320kbps Line Output Rated Voltage 1.1V Frequency response 60Hz-7kHz...
