Summary of Contents for Spon XC-9031V
-
Page 2: Table Of Contents
IP video intercom paging console user manual Content Summarize ........................................1 Safety precaution ......................................1 Product introduction ......................................2 Features ..........................................2 Hardware interface introduction ..................................2 Introduction ........................................4 Packing list ......................................... 4 IP video intercom paging console installation ............................... 5 Wiring picture ........................................ -
Page 3: Summarize
IP video intercom paging console user manual Summarize Safety precaution Please abide by the warning and the relevant safety tips. Please take this manual in convenient place after you reading the guide for future reference. Warning The sign means there is potential safety hazard, when operate wrong may result in death or serious injury. The sign is used to remind the user that attached is the important operation and maintenance data. -
Page 4: Product Introduction

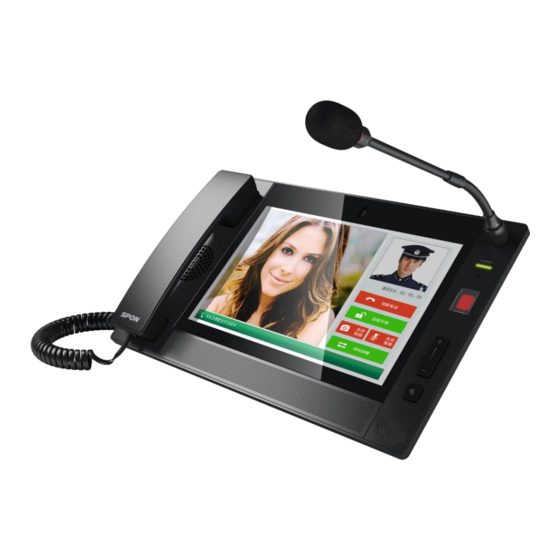

IP video intercom paging console user manual Product introduction IP video intercom paging console built-in independent intellectual property rights IP Audio digital network technology, equipped with power input interface, SD card interface ( TF card interface ), audio input output interface, RJ45 network interface, built-in CMOS color camera and so on. - Page 5 IP video intercom paging console user manual ①Microphone pole socket: insert the microphone pole, collecting audio. ②Working indicator: offline status is red, device has logined to the sever is green. ③Reset interface: it can be reset with tweezers. ④Emergency broadcast: press "emergency" button for 1 second, it can broadcast to the all groups. ⑤Volume control button.
-
Page 6: Introduction
IP video intercom paging console user manual ①HDMI interface: connect the display, high-definition HDMI video output. ②Network interface: insert the cable, connect to the server. ③Short circuit input/out interface: it can outside connect with other devices to linkage control. ④Power interface: connect with power DC12V / 2 ⑤Line output interface ⑥Line input interface ⑦The receiver interface... -
Page 7: Ip Video Intercom Paging Console Installation
IP video intercom paging console user manual IP video intercom paging console installation (1) Install the microphone pole groove aim at corresponding pedestal groove, as following picture: （2）Tightening knob direction as following picture. -
Page 8: Wiring Picture
IP video intercom paging console user manual Wiring picture Basic network setting Connected IP video intercom paging console and power on. Please revise the console parameters as per the live environment, there have below 2 methods: Touch screen operation （1）Select “Setting” option, then enter the password(the default is 123456) and click “OK”. -
Page 9: Custom Parameters
IP video intercom paging console user manual （2）Then select the “Network” to set the device ID, local IP, local port and server IP address. etc these information. （3）Click “Save”, the IP address setting is valid now（Note: the device ID No and IP address can`t be same with other terminals）. -
Page 10: Basic Setup
IP video intercom paging console user manual （3）Click OK to enter the IP video intercom paging console Web page. Basic setup Running status Display the device IP address, server IP address, MAC address...etc. -
Page 11: Device Parameters
IP video intercom paging console user manual Device parameters Network parameters list as below: Device port It can`t revise without the special situation（the default is 2046). Device IP Device local IP address, the default is 192.168.1.101 Subnet mask The terminal subnet mask. Default gateway The terminal default gateway. -
Page 12: Talk Parameters
IP video intercom paging console user manual Talk parameters The user can set to display the favorites, dial plate, talk records or not, it also can set to call display the video and open the built-in Mic function or not. Broadcast parameters The user can set to open the broadcast function or not from this interface. -
Page 13: Sip Parameters
IP video intercom paging console user manual The user can set to open monitor function or not, it also can assign the loop monitor time interval. SIP parameters The user can set to open the SIP function or not from this interface. Terminal setting Off-line parameters The user can set each terminal`s corresponding off-line talk target and device port from this interface. -
Page 14: External Video
IP video intercom paging console user manual External video IP video intercom paging console can check IP camera`s video, the method as below: This interface list each terminal binding IP camera, the user need fill each terminal corresponding IP camera IP address, user name and password. -
Page 15: Firmware Upgrade
IP video intercom paging console user manual Firmware upgrade It can check the IP video intercom paging console program version from this interface. System log IP video paging console can auto-recording and make the log, it also support the user to drive out the system log. -
Page 16: Interface Description
IP video intercom paging console user manual Interface description : terminal status icon Icon（color） Terminal status Blue Terminal logined to server Grey Terminal haven`t login to server Cable discount ： IP video intercom paging console volume Terminal list setting It can custom each terminal name from server terminal setting, please refer to the server software operation manual for details. -
Page 17: Group List Setting
IP video intercom paging console user manual Group list setting It can custom each group name from server terminal setting as per the situation, please refer to the server software operation manual for details. Basic function Talk （1）One-click calling After select “Talk”, click the target terminal, the IP video paging console will auto-call to the target terminal. - Page 18 IP video intercom paging console user manual （2）Dialing Under talk mode to choose “Dial” will popup the digital keyboard, enter the target ID No and click call button, it will call to the target terminal. Dialing mode support call to the panel, enter the target terminal NO.# panel No., then click calling button to talk with panel,eg:”1#7”means to call the panel 7 under terminal 1.
-
Page 19: Call Transfer
IP video intercom paging console user manual Click ”Unlock” within the conversation, IP video intercom paging console can control the other party to open the electric doorlock. Click the other party video picture it can become the full-screen mode within the conversation, and click again it will become the last mode. -
Page 20: Monitor
IP video intercom paging console user manual console will discount the present terminal talk, and it will auto-transfer to the transfer target. NO response transfer It need make some setting from sever for No response transfer; Select server advance setting, enter password（the default is 123456）,from the parameters1 to choose”Enable call non-response shift”... - Page 21 IP video intercom paging console user manual the monitor type from the monitor interface. Single monitor Select the monitored target from monitor interface, then the IP video intercom paging console can monitor this target. Loop monitor Click start listen, IP video intercom paging console will make loop monitor to all of terminals, each terminal will be monitored...
-
Page 22: Broadcast
IP video intercom paging console user manual 15 seconds, IP video intercom paging console will be auto-monitor each terminal till finished all, then it will stop monitor. Off-line monitor It can monitor the terminal which has made off-line conversation with IP video intercom paging console. Note: If the monitored terminal built-in camera, then it also can monitor the video. - Page 23 IP video intercom paging console user manual It can adjust the volume by VOLUME+/- button within broadcasting. （2）Select audio resource Mic input: Audio source is Mic input, the user can make the real time broadcasting to the target area by Microphone; Lin input: Audio source is line input audio file, the user can play the computer assigned audio file to the target area by IP video intercom paging console;...
-
Page 24: Setting
IP video intercom paging console user manual Click pre-recording file behind icon, then click to start recording, IP video intercom paging console will auto-collect the Microphone input audio and recording it, and click to stop recording. ＩＰ video intercom paging console can save 10 recording files at most. Text file:It`s not supported at present （3）Click ”Start broadcasting”... - Page 25 IP video intercom paging console user manual Local video: To check the local video, it also can adjust the camera angle and check the effect. Add the favorite: The user can add some regular calling target into the favorite, click the target terminal (it will be red after selected) save to add the favorite.
- Page 26 IP video intercom paging console user manual System tool: The user can use the system tools to make system update, recover to factory setting, reboot..etc.
-
Page 27: View
IP video intercom paging console user manual View IP video intercom paging console read the server terminal list information and display it on the screen. Standard view Each terminal and group will be displayed by list. Breviary view... -
Page 28: Favorite
IP video intercom paging console user manual Under this view, each terminal and group is displayed be picture. The IP video intercom paging console support custom each terminal and group display picture, the steps as below: Copy the required display picture（support jpg format）to USB disk and named as below: t1.jpg、t2.jpg、t3.jpg、t4.jpg.. -
Page 29: Talk Records
IP video intercom paging console user manual Talk records IP video intercom paging console support save all talk records, it can be saved by type (miss call, incoming call and outgoing call). It can call any one by click the recording list terminal. -
Page 30: Other Functions
IP video intercom paging console user manual Other functions In addition to the above functions, IP video intercom paging console can realize the timing ringing, real-time broad casting, timing broadcasting function with the server, mining replayed by, the specific operation please refer to the servi ce software manual. -
Page 31: Copyright Announcement
According to the legal provisions, copy including translate to other language or switch to other format. Mentioned document spreading in network media, SPON allow download and print for personal uses. Any parts of the document can not be modified and for commercial uses. If any damage and losses which is caused by illegality modify and switch the document, SOPN shall not take any responsibility.
