Icom IC-F3230D series Instructions page 2

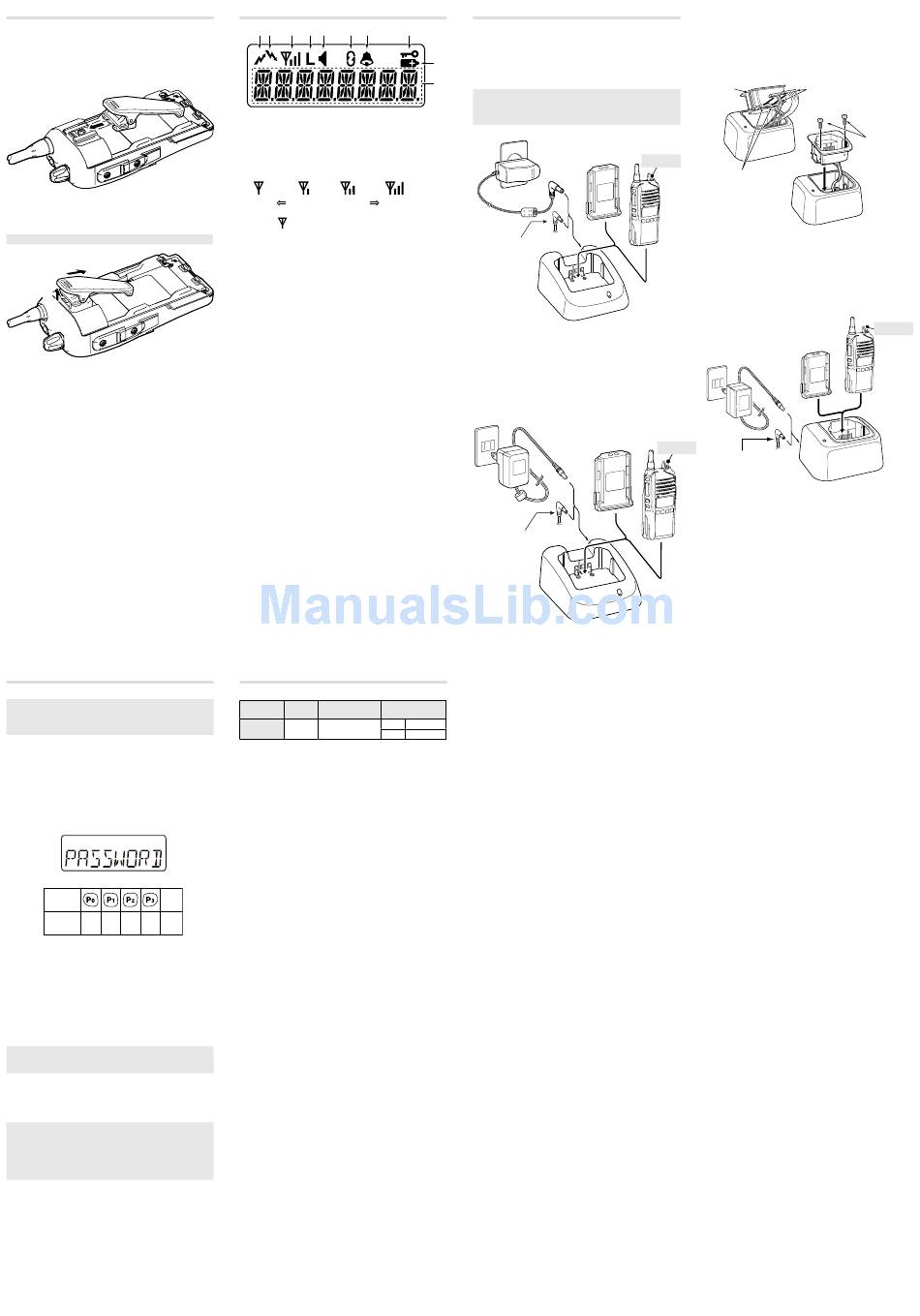

ATTACHING ACCESSORIES (Continued)
D Belt clip
To attach:
1. Remove the battery pack from the transceiver, if it is
attached.
2. Slide the belt clip in the direction of the arrow until the
belt clip is locked and makes a 'click' sound.
To detach:
Lift the tab up ( ), and slide the belt clip in the direction of
1
the arrow ( ).
2
BE CAREFUL! DO NOT break your fingernail
2
1
BASIC OPERATION
D Turning ON the transceiver
NOTE: Before using the transceiver for the first time, the
battery pack must be fully charged for optimum life and
operation. See the BATTERY CHARGING section of this
sheet.
1. Rotate [VOL] to turn ON the transceiver.
2. If the transceiver is preset for a start up password,
enter the digit codes as directed by your dealer.
• The 10-keypad may be used for password input,
depending on the transceiver's version.
• The keys in the table below can be used for password
input.
• The transceiver detects numbers in the same block
as identical. Therefore "01234" and "56789" are the
same.
KEY Side3
0 1 2 3 4
NUMBER
5 6 7 8 9
3. When the "PASSWORD" indication does not clear after
entering 4 digits, the entered code number may be
incorrect. Restart the transceiver in this case.
D Receiving and Transmitting
Receiving:
1. Push [CH Up] or [CH Down] to sequentially select the
conventional system channel.
2. When receiving a call, adjust the audio output level to
a comfortable listening level.
Transmitting:
CAUTION: Attach an antenna before transmitting.
Transmitting without an antenna may damage the
transceiver.
1. Wait until the channel is clear to avoid interference.
2. While holding down [PTT], speak at your normal voice
level.
3. Release [PTT] to receive.
IMPORTANT:
To maximize the readability of your signal:
1. After pushing [PTT], pause briefly before you start
speaking.
2. Hold the microphone 5 to 10 cm (2 to 4 inches) from
your mouth, then speak at your normal voice level.
FUNCTION DISPLAY
1 2 3 4 5 6 7 8
T RANSMIT ICON
1
Displayed while transmitting.
B USY ICON
2
Displayed while the channel is busy (receiving).
3 S IGNAL STRENGTH ICON
Shows the relative receive signal strength level.
Weak Receive signal level Strong
About " " icon for the Trunking mode:
• Disappears while in a no service area.
• Blinks while registering to a repeater.
• Displayed when registration is completed.
L OW POWER ICON
4
Displayed when low output power is selected.
L When the battery power decreases to a specified
level, low power is automatically selected.
5 A UDIBLE ICON
• In the analog mode, displayed when the CTCSS
(DTCS) squelch mute is released while holding down
[Monitor].
• In the digital mode, displayed while holding down
[Monitor].
E NCRYPTION ICON
6
In the digital mode, displayed when the encryption
function is activated.
7 B ELL ICON
In the digital mode, displayed/blinks when an SDM
(Short Data Message), Status Call or Call Alert is
received, depending on the presetting.
8 K EY LOCK ICON
Displayed when the Key lock function is ON.
9 B ATTERY ICON
Displayed or blinks when the battery power decreases
to a specified level.
A LPHANUMERIC DISPLAY
10
Displays an operating channel number, channel name,
User Set mode contents, and so on.
OPTIONS
D BATTERY PACK/BATTERY CASE
Battery Voltage Capacity Battery life*
pack
BP-232WP 7.4 V 2250 mAh (min.) VHF 19 hrs.
2300 mAh (typ.)
UHF 17 hrs.
* When the power save function is turned ON, and the
operating periods are calculated under the following
ratio:
TX : RX : standby = 5 : 5 : 90
• BP-240/BP-261 BATTERY CASE
BP-240: Battery case for 6 AAA (LR03) alkaline batteries
BP-261: Battery case for 6 AA (LR6) alkaline batteries
BP-240 and BP-261 have IPX4 waterproof protection.
When in use, the transceiver's waterproof rating meets
IPX4. Operating period depends on the alkaline cells used.
D CHARGERS
• BC-119N DESKTOP CHARGER + AD-106 CHARGER
ADAPTER + BC-145S AC ADAPTER
To rapidly charge the battery pack. A power adapter may
supplied with the charger, depending on the versions.
Charging time: Approximately 3.5 hours for the BP-232WP.
• BC-121N MULTI-CHARGER + AD-106 CHARGER
ADAPTER (6 pcs.) + BC-157S AC ADAPTER
For rapidly charging of up to 6 battery packs
simultaneously. A power adapter should be purchased
separately.
Charging time: Approximately 3.5 hours for the BP-232WP.
• BC-160 DESKTOP CHARGER +
BC-123S AC ADAPTER
To rapidly charge the battery pack. A power adapter may
be supplied with the charger, depending on the versions.
Charging time: Approximately 3.5 hours for the BP-232WP.
• BC-171 DESKTOP CHARGER +
BC-147S AC ADAPTER
A power adapter may supplied with the charger, depending
on the versions.
Charging time: Approximately 11.5 hours for the BP-232WP.
• BC-197 MULTI-CHARGER
For rapidly charging of up to 6 battery packs
simultaneously. A power adapter may be supplied with the
charger, depending on the version.
Charging time: Approximately 3.5 hours for the BP-232WP.
D DC CABLES
• CP-23L CIGARETTE LIGHTER CABLE
Used when charging a battery pack through a 12 V
cigarette lighter socket. (For BC-160/BC-171/BC-119N)
• OPC-515L/OPC-656 DC POWER CABLES
Used when charging a battery pack through a 13.8 V
power source instead of the power adapter.
OPC-515L: For BC-119N/BC-160/BC-171
OPC-656: For BC-121N/BC-197
D BELT CLIPS
• MB-93 SWIVEL BELT CLIP
• MB-94/MB-94R BELT CLIP
Exclusive alligator-type belt clip.
• MB-96N/MB-96F LEATHER BELT HANGER
BATTERY CHARGING
D Rapid charging with the BC-160
The optional BC-160 rapidly charges the Li-ion battery
pack.
• A power adapter (may be supplied with BC-160,
9
depending on the version) or the DC power cable (OPC-
515L/CP-23L) is additionally required.
10
CAUTION: NEVER reverse the polarity when connecting
the OPC-515L to a power source. This will ruin the battery
charger.
White line: +, Black line: _
Power Adapter*
Battery
Pack
The OPC-515L
(for a 13.8 V DC
power source)
or the CP-23L
(for a 12 V
cigarette lighter
socket) can be
used instead
of the power
adapter.
* A different type, or no power adapter is supplied,
depending on the charger version.
D Regular charging with the BC-171
The optional BC-171 regularly charges the Li-ion battery
pack.
• A power adapter (may be supplied with BC-171,
depending on the version) or the DC power cable (OPC-
515L/CP-23L) is additionally required.
Power Adapter*
Battery
Pack
The OPC-515L
(for a 13.8 V DC
power source)
or the CP-23L
(for a 12 V
cigarette lighter
socket) can be
used instead
of the power
adapter.
* A different type, or no power adapter is supplied,
depending on the charger version.
D OTHERS
• HM-158LA/HM-159LA/HM-168LWP SPEAKER-
MICROPHONE
Combination speaker-microphone that provides
convenient operation while hanging the transceiver on
your belt.
• HM-166LA EARPHONE-MICROPHONE
Ideal for hands-free operation: clip the HM-166LA (with
integrated PTT switch) to your lapel or breast pocket.
Allows you to operate in rainy conditions.
• FA-SC25V/FA-SC55V/FA-SC25U/FA-SC57U/
FA-SC72U/FA-SC62V/FA-SC63V/FA-SC03U
ANTENNAS
FA-SC25V: 136–150 MHz FA-SC55V: 150–174 MHz
FA-SC25U: 400–430 MHz FA-SC57U: 430–470 MHz
FA-SC72U: 470–520 MHz FA-SC62V: 150–160 MHz
FA-SC63V: 155–165 MHz FA-SC03U: 380–430 MHz
• FA-SC56VS/FA-SC57VS/FA-SC73US
STUBBY ANTENNAS
FA-SC56VS: 150–162 MHz FA-SC57VS: 160–174 MHz
FA-SC73US: 450–490 MHz
• FA-SC61VC/FA-SC61UC CUT ANTENNAS
FA-SC61VC: 136–174 MHz FA-SC61UC: 380–520 MHz
• MB-130 VEHICLE CHARGER BRACKET
Mounts the BC-160 DESKTOP CHARGER onto variety of
places in a vehicle.
Some options may not be available in some countries. Ask
your dealer for details.
D AD-106 installation
The AD-106 CHARGER ADAPTER must be installed into
the BC-119N or BC-121N before battery charging.
1. Connect the AD-106 and the BC-119N or BC-121N.
2. Install the AD-106 into the holder space of the BC-
119N or BC-121N with the supplied screws.
AD-106
Battery Pack
+ Transceiver
Turn OFF
Sockets
D Rapid charging with the BC-119N+AD-106
The optional BC-119N rapidly charges the Li-ion battery
pack. The following items are additionally required.
• AD-106 CHARGER ADAPTER
• A power adapter (may be supplied with the BC-119N,
depending on the version) or the DC power cable
(OPC-515L/CP-23L).
Power Adapter*
Battery Pack
+ Transceiver
Turn OFF
The OPC-515L (for
a 13.8 V DC power
source) or the CP-23L
(for a 12 V cigarette
lighter socket) can be
used instead of the
power adapter.
* A different type, or no power adapter is supplied,
depending on the charger version.
Plugs
Screws
supplied with
the charger
adapter.
Battery Pack
+ Transceiver
Turn OFF
Battery
Pack
