Assemble the Outdoor Kit: Internal Connections

Making the internal connections

Table 1: SoundPro Outdoor kit parts

Description
1. Weatherproof case assembly.
2. Base Shaft with sealed nut.
(1.0 m; 39")
3. Shaft segment with coupler.
(1.4 m, 56"). Two provided for optional
extra height. (1.9 m; 73")
4. Preamp adapter 2 in./5 cm tall.
5. SoundPro Preamp assembly (included
with SoundPro Sound Level Meter).
6. Microphone (various models included
with SoundPro Sound Level Meter and
identified in Appendix A of user manual)
7. Windscreen/weather shield.
8. Bird Spikes.
9. SoundPro outdoor extension cable
assembly.
Assemble the Outdoor Kit: Internal Connections
Making the internal connections
1 Connect the other end of the cable (see 9 in Figure 1/Table 1 ) to the meter inside the case.
2 For brief runtimes (4 hours or less), you may use the internal battery power of the SoundPro Sound Level Meter. For
extended runtime, connect the internal 12-Volt power cable (see Figure 2) to the meter at its bottom inlet. Then turn
On the power switch at the power distribution panel (see Figure 3).
Power cord connected

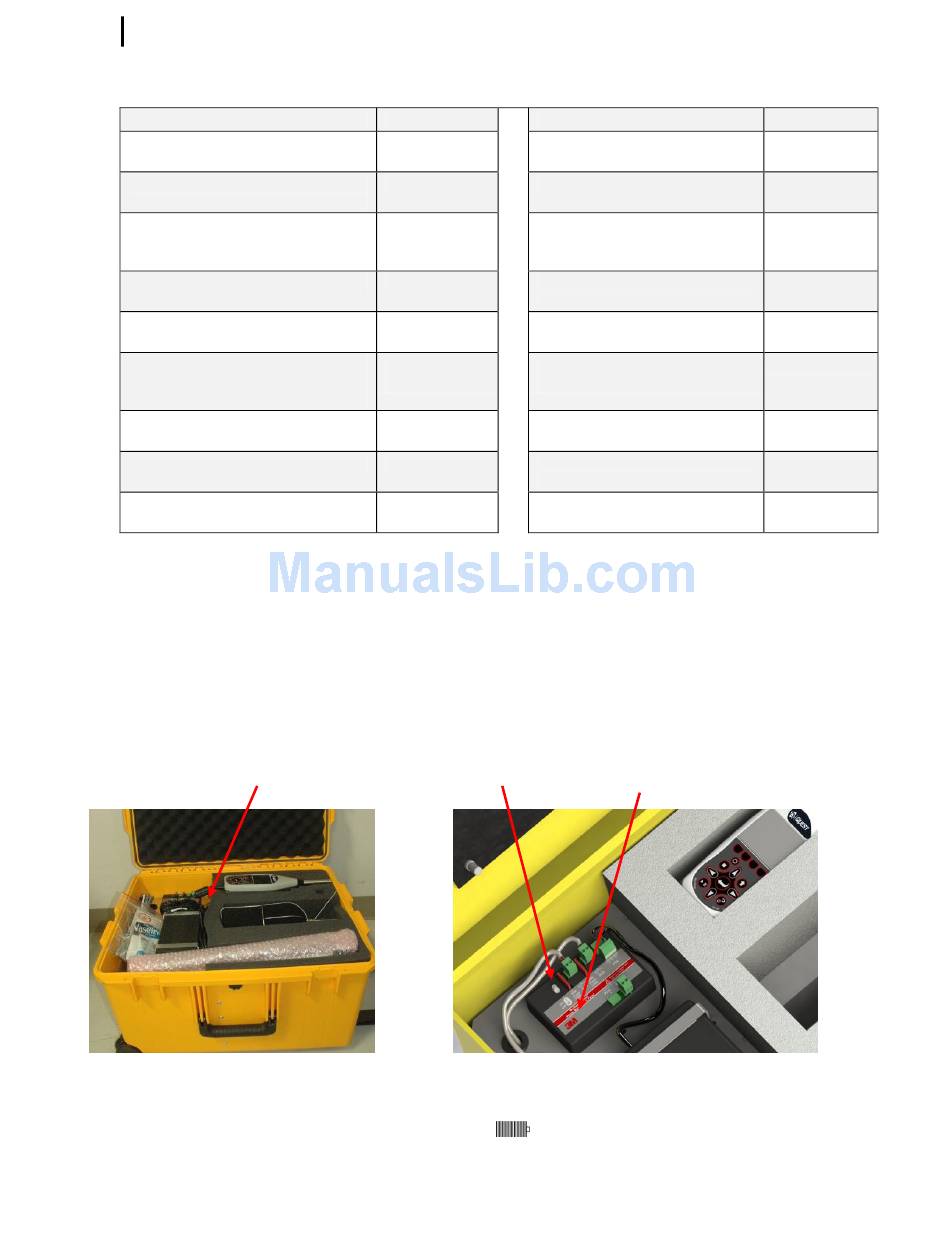

Figure 2: Connecting the battery power

3 When you have turned On the power switch and the SoundPro Sound Level Meter, verify that the power cord is
connected for external power. (NOTE: The battery icon
Level Meter as a fully charged icon when connected with AC power cord.)
Part Number Description
057-832 10. Case plug w/ 059-330 O-ring (both
parts required)
056-472 11. Cable insertion tool.
056-473 12. SoundPro outdoor 12V power
cable assembly.
056-462 13. SoundPro outdoor battery
assembly (1 or 2) provided.
053-809 14. SoundPro outdoor power
distribution panel.
(See Part # on 15. Universal Input (Switch-able)
delivery note.) 12V/5A Battery Charger.
056-463 16. USA 115V IEC320 Line cord
#18AWG.
056-464 17. European 230V IEC320 Line cord
#18AWG (Optional).
057-240 18. Desiccant SG-40 Rechargeable
canister.
On/Off switch

Figure 3: On/Off switch for the SoundPro Outdoor Kit

, will appear on the display of the SoundPro Sound
SoundPro
Part Number
056-467
056-475
057-241
057-242
057-826
053-562
068-028
054-462
057-235
Power distribution panel (see
16 in Table 1 for part details)
® Sound Level Meter Outdoor Measuring System
