SoundPro Outdoor Kit Specifications

Storage Recommendations
SoundPro Outdoor Kit Specifications
Windscreen Attenuation
Battery type
Battery runtime
Operating Temperature
Overall Dimensions
In Transit
(W x D x maximum H)
Ready to Use
(W x D x maximum H)
Overall Weight
0.5 dB @ 2 kHz, 1 dB @ 6 kHz, 1.4 dB @ 10 kHz, 2 dB @ 20 kHz
(1) 12 Volt, 42 Amp-Hour battery
Total capacity : 34 Amp-Hours of 12 Volt power
 Approximately 5.5 days, with nominal 3400 mAH load and de-rated to 80% depth of
discharge (3400 mAH / 250 mA / 24 (H/day) = approximately 5.5 days
 When other additional accessories are used, reduced runtimes are calculated from
the 80% de-rated 34 Amp-Hour Capacity.

With the optional second battery installed, runtime will increase up to 7 days
(doubling the runtime).
0°C to 50°C (32°F to 122°F)
 Excessively hot and extreme sun exposure may lead to over-heating. Use additional
sun shields to reduce running temperature, if necessary.
 Repeated or extended time in extreme environments will lead to premature battery
failure.
64 cm x 51 cm x 38 cm (25 in. x 20 in. x 15 in.)
64 cm x 51 cm x 200 cm; (25 in. x 20 in. x 78 in.)
30 kg; 67 lbs (with one battery)
45 kg; 100 lbs (with two batteries)

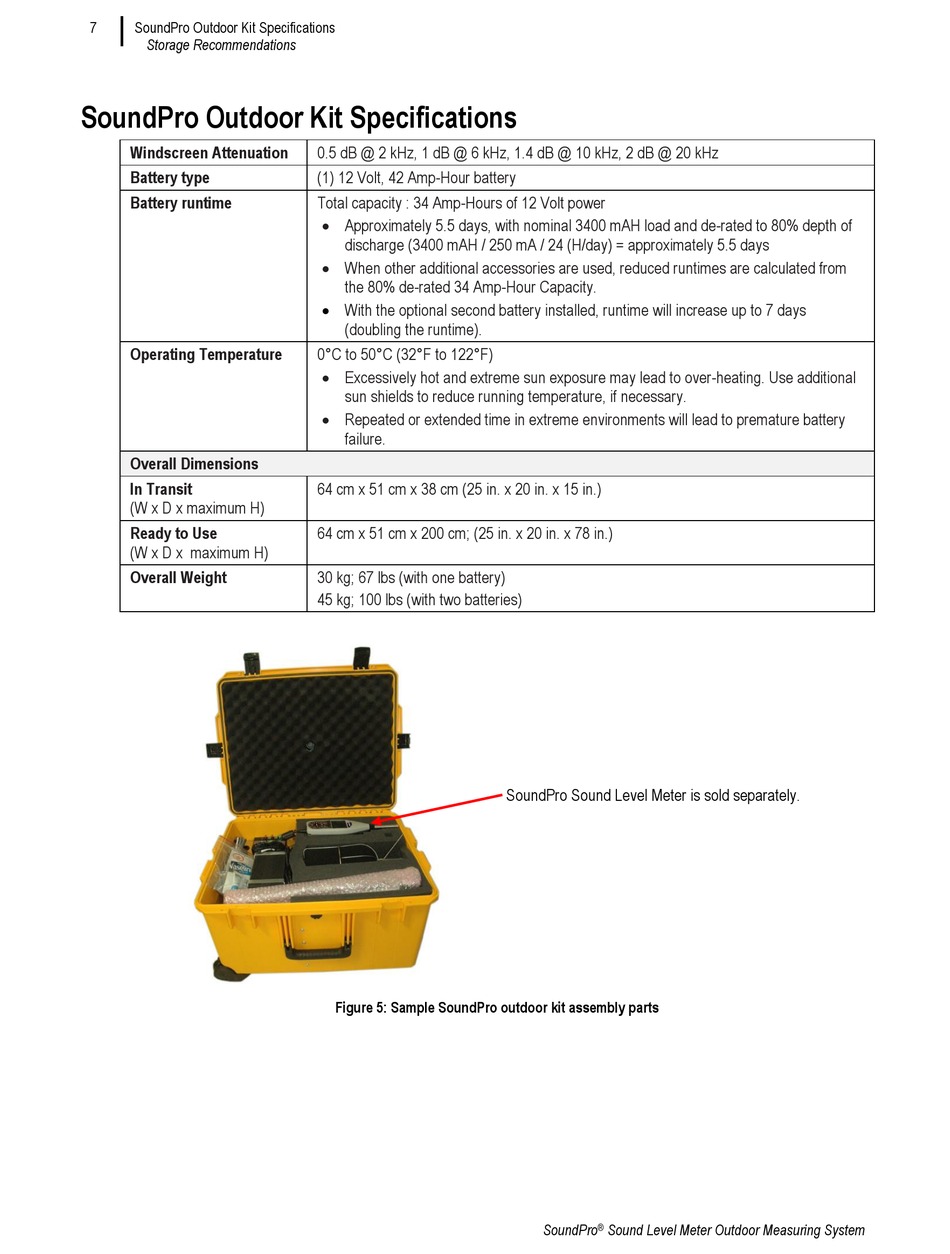

Figure 5: Sample SoundPro outdoor kit assembly parts

SoundPro Sound Level Meter is sold separately.
