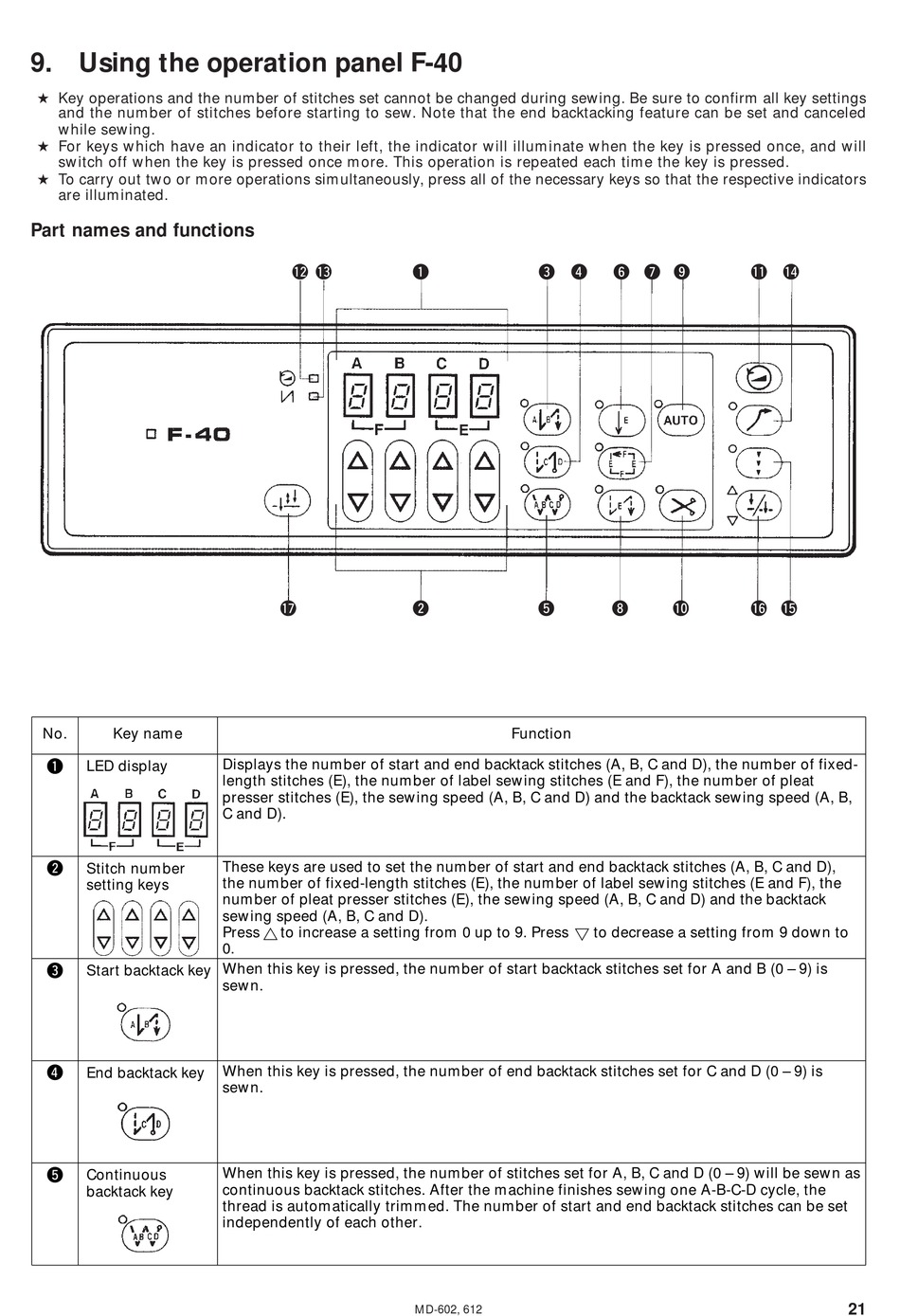

9. Using the operation panel F-40

Key operations and the number of stitches set cannot be changed during sewing. Be sure to confirm all key settings
and the number of stitches before starting to sew. Note that the end backtacking feature can be set and canceled
while sewing.
For keys which have an indicator to their left, the indicator will illuminate when the key is pressed once, and will
switch off when the key is pressed once more. This operation is repeated each time the key is pressed.
To carry out two or more operations simultaneously, press all of the necessary keys so that the respective indicators
are illuminated.
Part names and functions
No. Key name
q
LED display
w
Stitch number
setting keys
e
Start backtack key
r
End backtack key
t
Continuous
backtack key
!2 !3
!7
Displays the number of start and end backtack stitches (A, B, C and D), the number of fixed-
length stitches (E), the number of label sewing stitches (E and F), the number of pleat
presser stitches (E), the sewing speed (A, B, C and D) and the backtack sewing speed (A, B,
C and D).
These keys are used to set the number of start and end backtack stitches (A, B, C and D),
the number of fixed-length stitches (E), the number of label sewing stitches (E and F), the
number of pleat presser stitches (E), the sewing speed (A, B, C and D) and the backtack
sewing speed (A, B, C and D).
Press to increase a setting from 0 up to 9. Press
0.
When this key is pressed, the number of start backtack stitches set for A and B (0 – 9) is
sewn.
When this key is pressed, the number of end backtack stitches set for C and D (0 – 9) is
sewn.
When this key is pressed, the number of stitches set for A, B, C and D (0 – 9) will be sewn as
continuous backtack stitches. After the machine finishes sewing one A-B-C-D cycle, the
thread is automatically trimmed. The number of start and end backtack stitches can be set
independently of each other.
q e r
w t
Function
MD-602, 612
y u o !1
i !0 !6 !5
to decrease a setting from 9 down to
!4
21
