3.3

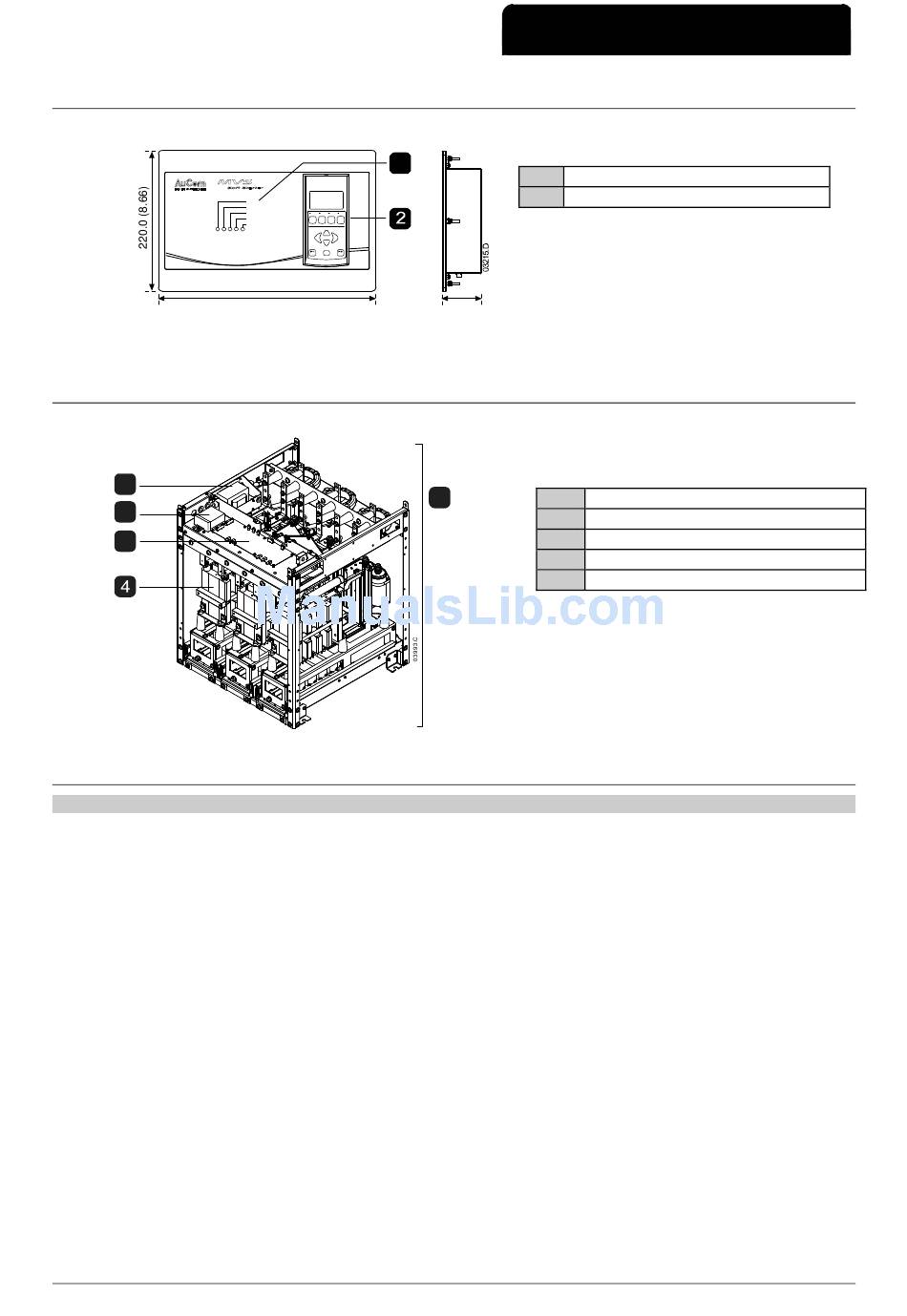

Controller

The Controller is suitable for use with all MVS soft starters.
Dimensions are shown in mm (inch).
3.4

Key Components

1
2
3
3.5

General Technical Data

Supply
Mains Voltage
MVSxxxx-V02 .......................................................................................................................................................................... 2.3 kV Phase-phase
MVSxxxx-V03 .......................................................................................................................................................................... 3.3 kV Phase-phase
MVSxxxx-V04 .......................................................................................................................................................................... 4.2 kV Phase-phase
MVSxxxx-V06 .......................................................................................................................................................................... 6.6 kV Phase-phase
MVSxxxx-V07 .......................................................................................................................................................................... 7.2 kV Phase-phase
Rated Frequency (fr) ............................................................................................................................................................................................. 50/60 Hz
Rated lightning impulse withstand voltage (U
MVSxxxx-V02 ~ 04 ............................................................................................................................................................................................ 45 kV
MVSxxxx-V06 ~ V07 ........................................................................................................................................................................................ 45 kV
Rated power frequency withstand voltage (U
MVSxxxx-V02 ~ V04 .................................................................................................................................................................................... 11.5 kV
MVSxxxx-V06 ~ V07 ........................................................................................................................................................................................ 20 kV
Rated normal current (l
MVS0080-Vxx .......................................................................................................................................................................................................... 80 A
MVS0159-Vxx ....................................................................................................................................................................................................... 159 A
MVS0230-Vxx ....................................................................................................................................................................................................... 230 A
MVS0321-Vxx ....................................................................................................................................................................................................... 321 A
MVS0500-Vxx ....................................................................................................................................................................................................... 500 A
MVS0600-Vxx ......................................................................................................................................................................................................... 600 A
Rated short-time withstand current (asymmetrical RMS peak) (l
Form Designation ...................................................................................................................... Bypassed semiconductor motor starter form 1
710-13019-00A
1
ST ART
ST OP
RESET
Ready
Run
Tr ip
Local
INPUTA
L CL
S ta r t
S t o p
R e se t
RM T
INPUTB
M e nu
E xit
St or e
Alt
L og s
To o ls
340.0
(13.39)
Weight: 2.1 kg (4.63 lb)
)
p
)
d
)
r
MVS User Manual
1
Control input LEDs
2
Keypad
80.0
(3.15)
1
Control transformer
5
2
Control voltage terminal block
3
Power interface PCB
4
Phase arm (x3)
5
Power assembly
) ................................................................................................. 48 kA
k
SPECIFICATIONS
1
Page 9
