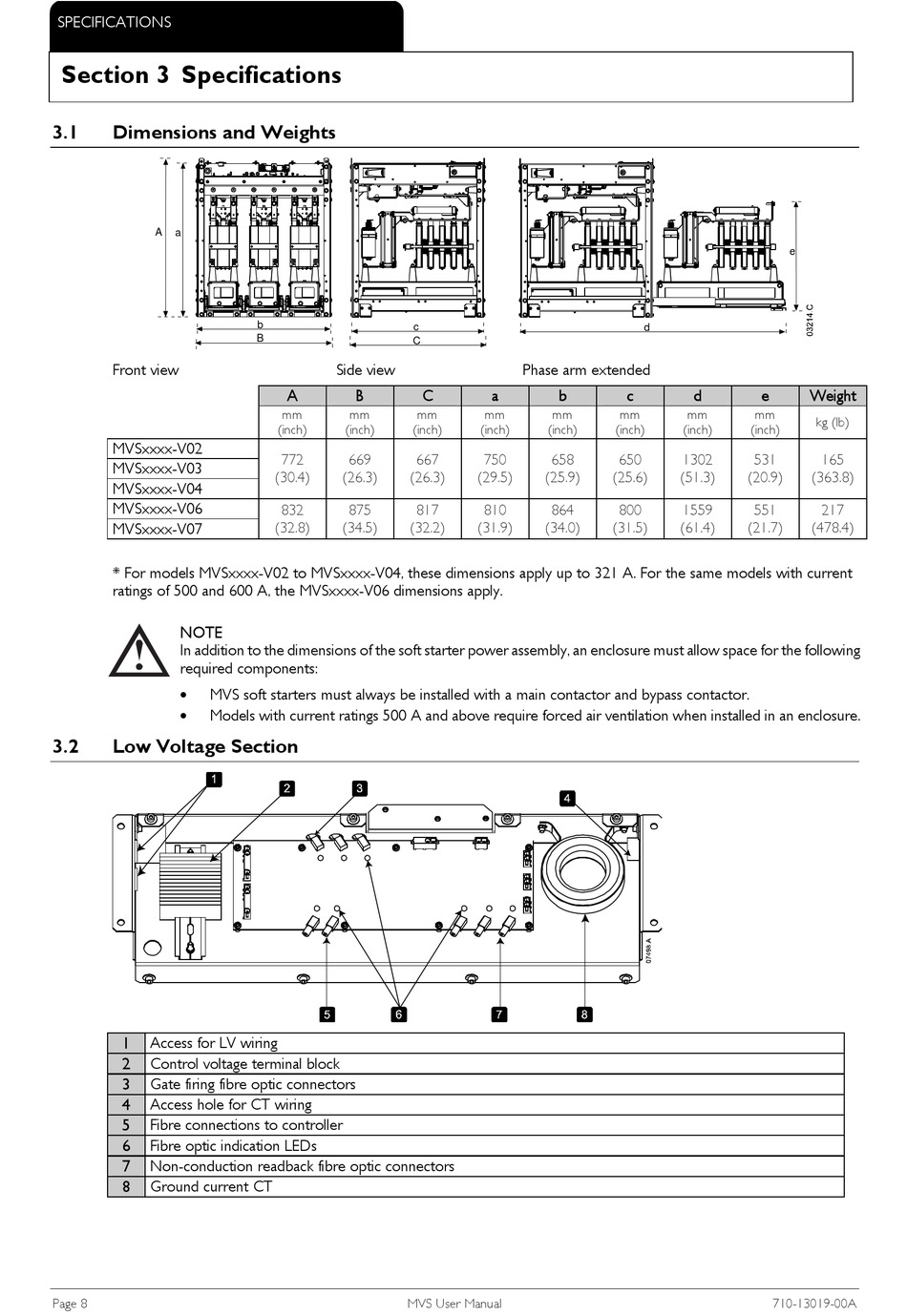

SPECIFICATIONS
Section 3 Specifications
3.1
Dimensions and Weights
A
a
Front view
MVSxxxx-V02
MVSxxxx-V03
MVSxxxx-V04
MVSxxxx-V06
MVSxxxx-V07
* For models MVSxxxx-V02 to MVSxxxx-V04, these dimensions apply up to 321 A. For the same models with current
ratings of 500 and 600 A, the MVSxxxx-V06 dimensions apply.
NOTE
In addition to the dimensions of the soft starter power assembly, an enclosure must allow space for the following
required components:
MVS soft starters must always be installed with a main contactor and bypass contactor.
Models with current ratings 500 A and above require forced air ventilation when installed in an enclosure.
3.2
Low Voltage Section
1
Access for LV wiring
2
Control voltage terminal block
3
Gate firing fibre optic connectors
4
Access hole for CT wiring
5
Fibre connections to controller
6
Fibre optic indication LEDs
7
Non-conduction readback fibre optic connectors
8
Ground current CT
Page 8
b
c
B
C
Side view
A
B
C
mm
mm
mm
(inch)
(inch)
(inch)
772
669
667
(30.4)
(26.3)
(26.3)
832
875
817
(32.8)
(34.5)
(32.2)
MVS User Manual
d
Phase arm extended
a
b
c
mm
mm
mm
(inch)
(inch)
(inch)
750
658
650
(29.5)
(25.9)
(25.6)
810
864
800
(31.9)
(34.0)
(31.5)
e
d
e
Weight
mm
mm
kg (lb)
(inch)
(inch)
1302
531
165
(51.3)
(20.9)
(363.8)
1559
551
217
(61.4)
(21.7)
(478.4)
710-13019-00A
