Thermometer Mode

With the analyzer running, press the Func Key to access the thermometer
function. In this mode the 709 functions like a K-Type thermocouple ther-
mometer. The pump will stop running when in this function.
The thermometer func-
tion allows you to per-
form temperature tests.

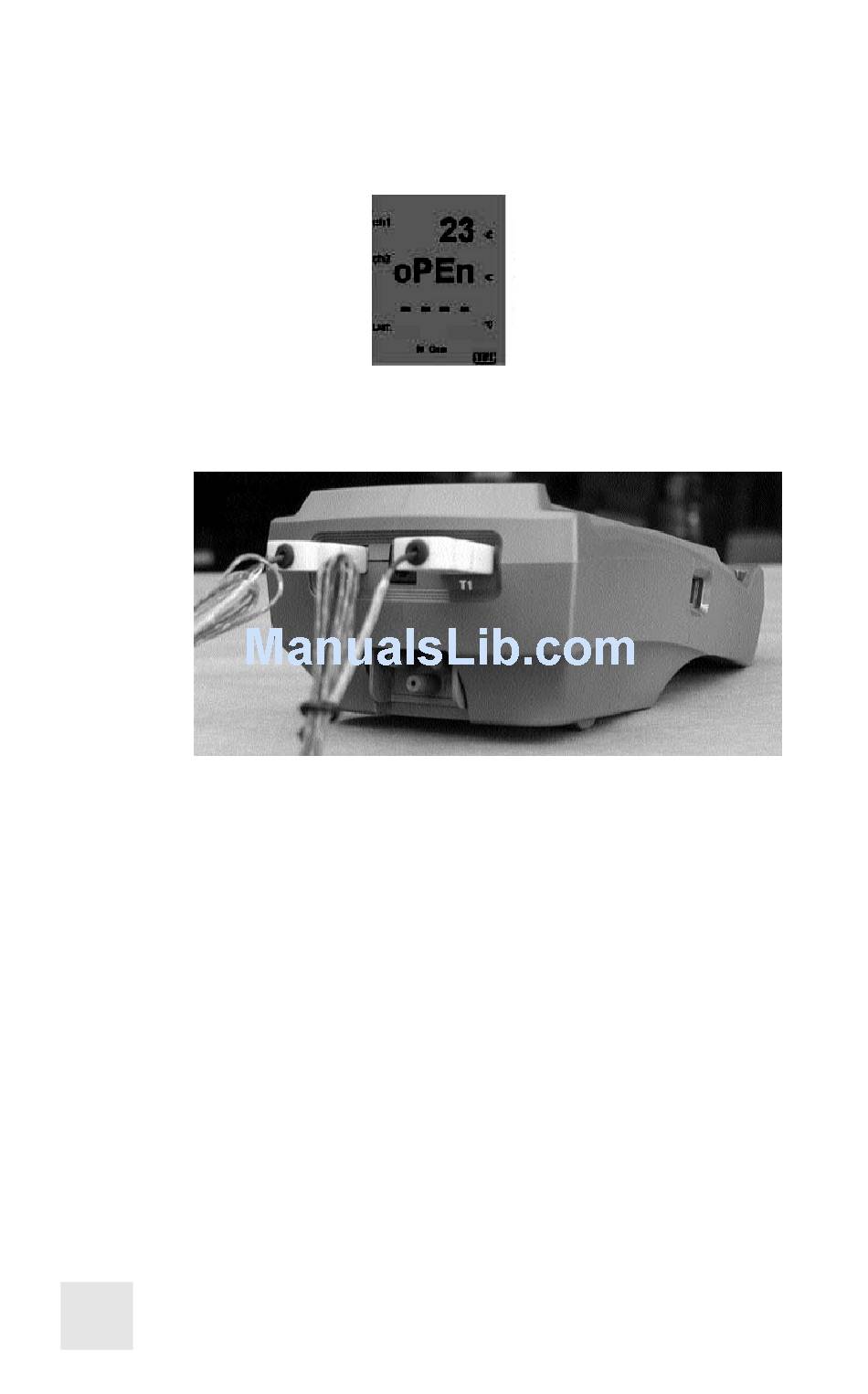

1. Ensure you have a 'K' type probe connected to one or both of the thermo-
couple sockets T1 or T2 (refer to figure below)
WARNING: - There is ONLY one correct way to connect the 'K' type thermo-
couple plug into the socket (see page 7). Forcing the plug into the socket the
wrong way may result in damage to the instrument.
2. Touch the temperature probe to the item under test and read the displayed
temperature.
Other Features:
• Pressing the Up Arrow Key will toggle between ºC and ºF
• Pressing the Scroll/Enter Key will toggle the Differential Temperature ON
and OFF
• Single Log Mode (S-Lg) can be activated to log temperatures. See section
10.
• 'oPEn' will be displayed if no 'K' type probe is connected to the thermocou-
ple socket
20
Function Display 1 (Temperature)
T1 Temperature
T2 Temperature
Differential Temperature
