Novatel Verizon MiFi 7730L Instruction Manual

Meet your

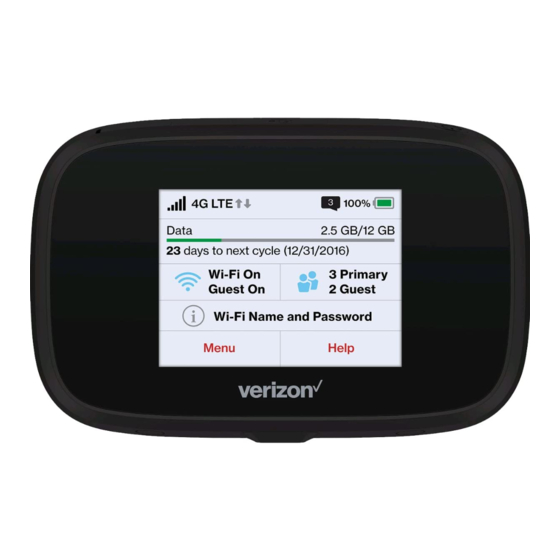

About your Jetpack

Jetpack.
SIM card slot (4FF)
Color touchscreen
MiFi 7730L
NOTE: Appearance of device may vary.
Universal Charging port
(Type A USB)
Power button Power button
• Power on/off
(long press & hold)
• Screen on/off
(short press & release)
Test port
Test port
• QuickCharge port
• Internet over USB-C
• MiFi Share
Universal charging port
(Type A USB)
WARNING! Please use only an approved charger
to charge your Jetpack. Improper handling
of the charging port, as well as the use of an
incompatible charger, may cause damage to
your device and void the warranty.
Device display
Test port
Home screen
Connection status
Network Signal Strength
Indicator
Data is being transferred
between the mobile
network and your Jetpack.
Roaming Indicator
You have unread messages.
Your Jetpack Wi-Fi
network is turned ON.
Shows the number of
Wi-Fi devices connected
SIM card slot
Test port
to your Jetpack.
• QuickCharge port
• Internet over USB-C
• MiFi Share
Battery and SIM status
Indicator Status
The battery is fully charged.
Green
Red There is no battery installed.
The battery is low and needs to be recharged for the
Red
Jetpack to continue operation.
The battery is critically low and the Jetpack will shut
Red
down unless the battery is connected to the charger.
The Jetpack is connected to an AC charger and
Black
charging.
The Jetpack is connected via USB and charging.
Grey
There is no SIM installed in the Jetpack.
Red
Red There is a SIM error. Check for proper installation.
Red The SIM card is locked.
Other icons

Settings

Universal Charging

MiFi Share: USB Mass
storage device in use

Software Update

About Jetpack

Help

© 2016 Verizon Wireless. All Rights Reserved
PN 90026858 R1 DRAFT H
