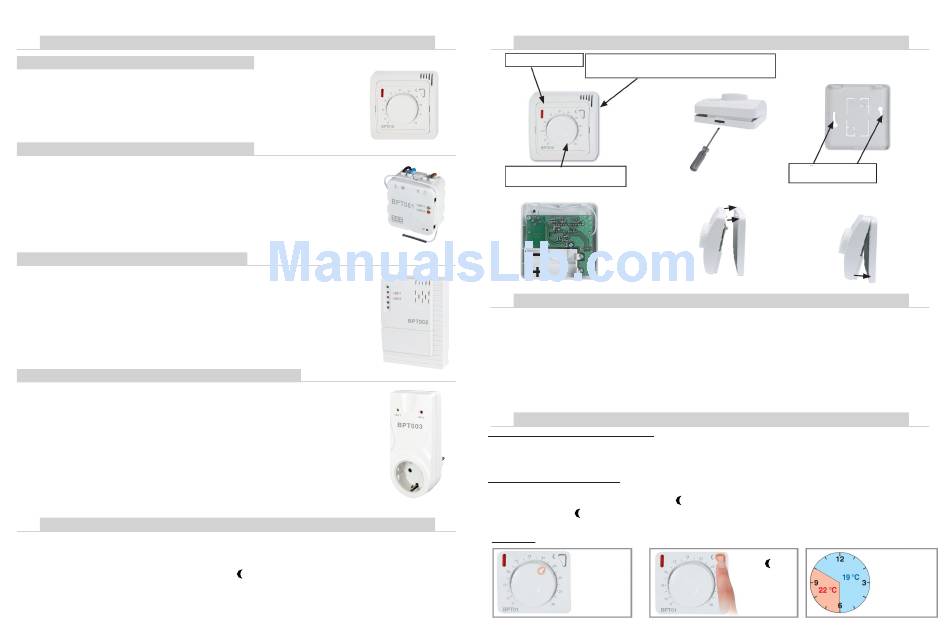

DESCRIPTION AND CHARACTERISTICS OF ELEMENTS
BPT010 wireless thermostat (transmitter)
- simple element for temperature setting - turning the knob
- indication of switching the receiver and errors by LED diodes
- night temperature reduction (by pressing the button there will occur an
automtic reduction by 3 °C for 8 °C each day)
BPT001 wireless receiver – under switch
- receiver with switched phase (suitable for, e.g., direct heaters and panels)
- switches the heating device by request and sends back confi rmation
- simple installation into a wiring box
- receiver statuses indicated by LED diodes on the front panel
- automatic activation in the system after a short-term power loss (E-EPROM)
BPT002 wireless receiver - wall
- receiver with potential-free contact (suitable for boilers, etc.)
- switches the heating device by request and sends back confi rmation
- simple installation into a wiring box
- receiver statuses indicated by LED diodes on the front panel
- automatic activation in the system after a short-term power loss (E-EPROM)
BPT003 wireless receiver – in the socket
- receiver with switched phase (suitable for. e.g., direct heaters and panels
- switches the heating device by request and sends back confi rmation
- simple installation into an electric socket directly
- device simply connected by inserting into the socket (suitable for heaters
with plug outlet) receiver statuses indicated by LED diodes on the front panel
- automatic activation in the system after a short-term power loss (E-EPROM).
CODE LEARNING
- Press the „FUNCTION BUTTON" on the receiver (for about 1.5 s), thus you introduce the receiver into the
learning state (see the pertinent receiver manual – BPT001, BPT002 or BPT003). The LED1 and LED2
diodes are flashing alternately on the receiver.
- On the BPT010 transimtter press (for about 3s) the
red LED (sending the code + testing the receiver)
- Code acceptance by receiver is confirmed on the receiver by simultaneously flashing diodes
button. On the transmitter BPT010 flash the 4x teh
TRANSMITTER DESCRIPTION
LED INDICATION short press (1,5 s) - night temperature reduction
long press (3 s) - TEST (sending the code)
Knob for setting the
temperature
Fig. 5
- Lift off the front cover of the transmitter acc. to Fig. 3
- Fasten the back cover to the wall (or on the wiring box directly); see Fig. 4
- remove the protection paper form batteries (batteries are included in the packing);
- Fasten the front cover on the back one; see Fig. 6, 7.
- Necessity of battery exchange is indicated by red-LED (flash 3x in 8s)
- Always use the 2 x 1.5 V alkaline batteries, type AA! (Do not use rechargeable batteries.)
Note: Dispose of old batteries according to regulations for hazardous waste treatment!
Setting and change of temperature
- The required temperature you can set only throug turning of the knob (range from 11°C, +/-1°C)
- The switched-on receiver is indicated by red LED (flash 1x in 8s)
Night temperature reduction
This mode reduce the temperature for 3°C each day for 8 hours.
- In desired time press the (for about 1s) the
- When you press button during countdown of reduction mode, the new 8 hour cycle will set up.
- When you turn with the knob (change the temperature), this (reduction) mode will be cancelled.
Example:
We set the desired
temperature on e.g.
22°C
Fig. 3
Holes for screws
Fig. 6
INSTALLATION
OPERATING
button, red LED flash 4x and the mode is activ.
At 10 p.m. we
press the button
for about 1s.
Fig. 4
Fig. 7
The desired
temperature will
be automatic each
day from 10p.m.
to 6 a.m. reduced.
for 3°C
