Service
Manual
Outdoor Gas Grills
(E-Series)

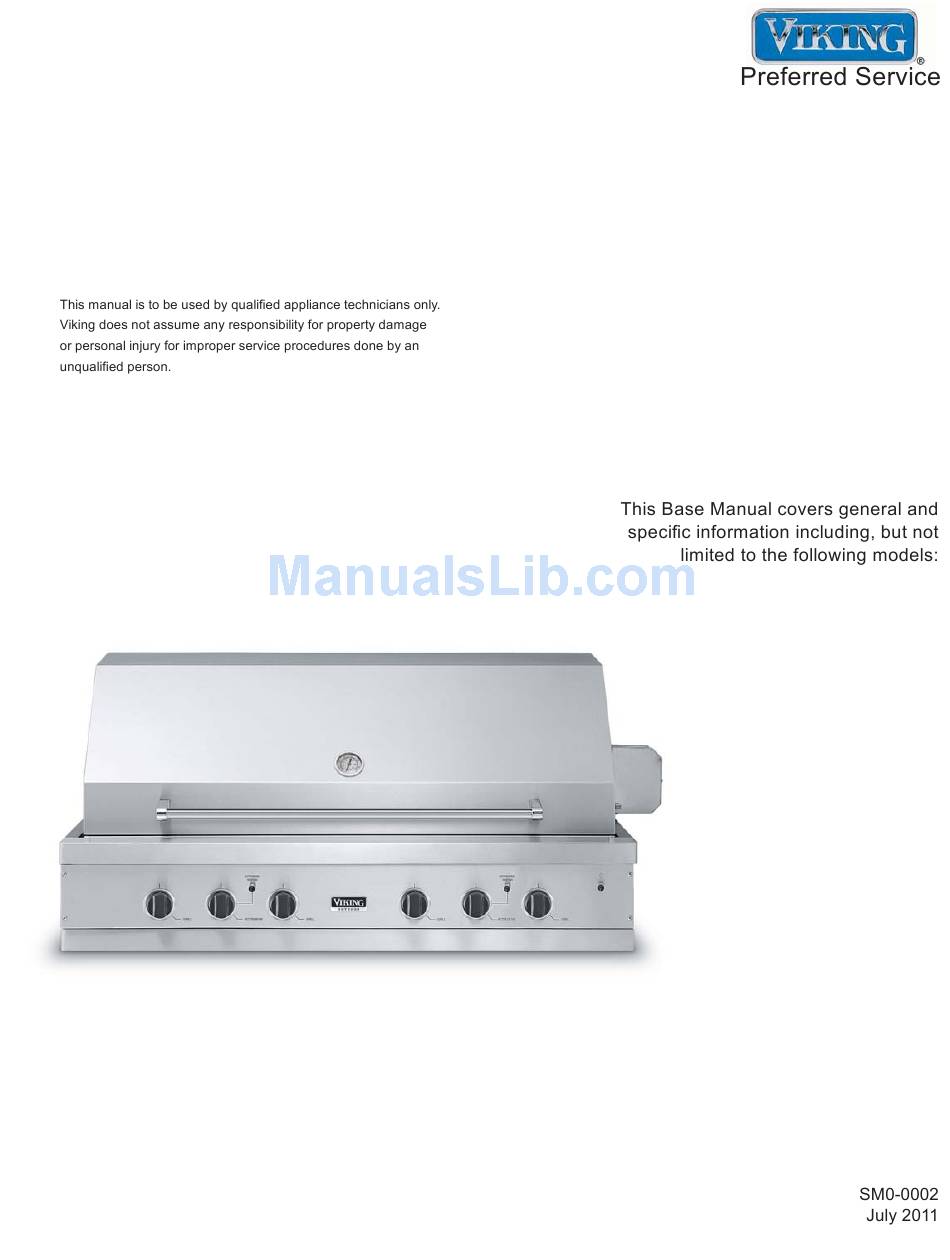

(VGBQ530-4RE2 model shown)
VGBQ300-2RE2
VGBQ410-3RE2
VGBQ412-2RE2
VGIQ410-3RE2
VGIQ412-2RE2
VGBQ530-4RE2
VGBQ532-3RE2
VGIQ530-4RE2
VGIQ532-3RE2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VGBQ300-2RE2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Viking VGBQ300-2RE2

  • Page 1 Service Manual Outdoor Gas Grills VGBQ300-2RE2 (E-Series) VGBQ410-3RE2 VGBQ412-2RE2 VGIQ410-3RE2 VGIQ412-2RE2 VGBQ530-4RE2 VGBQ532-3RE2 VGIQ530-4RE2 VGIQ532-3RE2 (VGBQ530-4RE2 model shown)
  • Page 2: Table Of Contents

    Parts Location–Burners ..........28 Side Burner ..............30 Grill Burner ..............31 Infrared Rotisserie Burner ..........32 Rotisserie Motor ............. 33 Interior Lights ..............34 Grill Canopy ..............34 Component Testing ............36 Troubleshooting Guide ........... 36 © 2011 Viking Preferred Service...
  • Page 3: Safety Information

    “DANGER”, “WARNING” or “CAUTION”. These words mean: CAUTION DANGER VIKING will not be responsible for any injury Immediate hazards which WILL result in severe or property damage from improper service personal injury or death. procedures. If performing service on your...
  • Page 4: Warranty Information

    (12) months from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.
  • Page 5: Warranty Service

    The return of the Owner Registration Card is not a condition of warranty coverage. You should, however, return the Owner Registration Card so that Viking Range Corporation can contact you should any question of safety arise which could affect you.
  • Page 6: General Information

    . 2 c . 9 c / 1 6 ( 8 3 ( 1 0 4 ” 4 . 6 ” - 3 / . 2 c ( 8 3 © 2011 Viking Preferred Service © 2011 Viking Preferred Service...
  • Page 7 . 9 c ( 4 2 8 ” . 4 c - 3 / ( 1 3 ” 5 . 1 4 ” - 3 / . 2 c ( 8 3 © 2011 Viking Preferred Service © 2011 Viking Preferred Service...
  • Page 8: Warnings

    If obstructions can be seen, installed in or on recreational vehicles and/or use a metal wire coat hanger that has been straightened out. Shake out any debris through boats. the air shutter. © 2011 Viking Preferred Service © 2011 Viking Preferred Service...
  • Page 9 flammable vapors and liquids in the vicinity of this or any other appliance. 2. Any LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance. © 2011 Viking Preferred Service © 2011 Viking Preferred Service...
  • Page 10: Model - Serial Number Matrix

    M A D E I N T H E U S A PRESSION TUBULARE: NAT 4” WCP (1246 PA) PROPANE 10” WCP (2492 Pa) MODEL VGIQ4103RE2LSS NUMBER SERIAL 031611C00009652 NUMBER 120 VAC / 60 HZ MAXIMUM AMPS 2.2 © 2011 Viking Preferred Service © 2011 Viking Preferred Service...
  • Page 11: Operation

    “OFF,” wait 5 minutes, and the outdoor hood may be compromised. try again. If the burner will not light after several attempts, see the Troubleshooting section. © 2011 Viking Preferred Service © 2011 Viking Preferred Service...
  • Page 12: Lighting Trusear™ Infrared Burner (If Applicable)

    4 seconds, release and turn the control knob to “OFF”. Wait 5 minutes for any accumulated gas to dissipate. If the burner does not light after several attempts, then © 2011 Viking Preferred Service © 2011 Viking Preferred Service...
  • Page 13: Canopy Thermometers (If Applicable)

    © 2011 Viking Preferred Service © 2011 Viking Preferred Service...
  • Page 14: Service Diagnostics And Procedures

    Grill Tru Sear Grill Switch Switch Front Infrared Ignition Ignition Ignition Switch Switch Switch VGIQ412-2RE2 VGBQ530-4RE2 Side Rotisserie Grill Grill Grill Grill Grill Rear Side Tru Sear Light Rotisserie Rotisserie Light Front Infrared Switch Switch © 2011 Viking Preferred Service...
  • Page 15 Light Light Side Rotisserie Grill Grill Tru Sear Rotisserie Switch Switch Rear Infrared Side Grill Rotisserie Grill Grill Grill Front Ignition Switch VGIQ532-3RE2 Side Tru Sear Grill Front Infrared Side Rotisserie Grill Light Rear Switch © 2011 Viking Preferred Service...
  • Page 16: Parts Location-Control Panel

    Service Diagnostics and Procedures Parts Location–Control Panel Access panel removed (VGIQ410-3RE2 model shown) Spark Tru Sear Rotisserie Light Igniter Switch Module/ Iginter Lighting Terminal Switch Light Block Grill Grill Infrared Rotisserie Transformer Valve Igniter Burner Valve Valve © 2011 Viking Preferred Service...
  • Page 17 Rotisserie Grill Light Infrared Valve Terminal Valve Burner Valve Lighting Switch Block Grill Spark Light Rear Rotisserie Tru Sear Grill Transformer Iginter Valve Igniter Module Side Burner Igniter Switch Valve © 2011 Viking Preferred Service © 2011 Viking Preferred Service...
  • Page 18: Parts Location-Rear View

    Service Diagnostics and Procedures Parts Location–Rear View Access panel removed (VGIQ412-2RE2 model shown) Rotisserie Rotisserie Burner Igniter © 2011 Viking Preferred Service...
  • Page 19: Control Panel Access

    Light Switch 4. Lower the control panel. 3. Reverse procedure to reassemble. Verify the switch reads open in the extended position and 0 in the pressed position. 5. Reverse to reassemble. Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 20: Led Lighting

    3. Reverse procedure to reassemble. Verify the switch reads open when the valve is off and 0 when the valve is turned to the light position. Scews 4. Reverse procedure to reassemble. Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 21: Spark Module

    4 (orange wire). If voltage is proper and no spark is present at the igniter, check the igniter, spark switch, and wiring. If all check good, replace the module. See wiring diagrams for correct connections. Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 22: Terminal Block

    Verify output to the transformer, spark switches, and lights. 2. Remove screw securing cover and slide out. (from power cord) (to right side) Neutral (to right side) Ground Neutral (from power cord) Neutral (to transformer) Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 23: Grill Igniter

    If the igniter shows 0 , ensure power to the igniter from the module. If power is supplied to the igniter and no spark, replace the igniter. Igniter Wire Test Points Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 24: Infrared Igniter

    1. Remove two screws securing igniter cover, remove igniter cover. Screws Test Points 2. Remove securing screw and igniter from bracket, pull igniter into burner box and disconnect wire from igniter. Screw 3. Reverse procedure to reassemble. Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 25: Rotisserie Igniter

    1. Open lid and remove upper rack. Screw Upper Rack 5. Remove screws and rear access panel. Rear View 2. Locate rotisserie igniter cover(s). Remove two screws securing igniter cover. Screw Igniter Cover Screws Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 26: Light Transformer

    3. Remove the screws securing the transformer to power to the igniter from the module. If power is the cover. supplied to the igniter and no spark, replace the igniter. Screws Cover Test Points Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 27 Output voltage from the transformer should be 2.5 VAC. Note: VGIQ410-3RE2 model shown Screws Cover 5. Reverse procedure to reassemble. Light Transformer Screw N White L1 Red Black/Red (to LED Lights) © 2011 Viking Preferred Service...
  • Page 28: Parts Location-Burners

    Service Diagnostics and Procedures Parts Location–Burners (VGIQ410-3RE2 model shown) Rotisserie Infrared Grill Grill Rotisserie Igniter and Burner Burner Burner Burner Thermocouple © 2011 Viking Preferred Service...
  • Page 29 Service Diagnostics and Procedures Parts Location–Burners (VGIQ412-2RE2 model shown) Rotisserie Side Infrared Grill Grill Rotisserie Igniter and Burner Burner Burner Burner Burner Thermocouple © 2011 Viking Preferred Service...
  • Page 30: Side Burner

    If supply is proper and still no flow verify gas valve and orifice. If orifice or air shutter is not plugged and still no flow, replace the gas valve. Note: VGIQ412-2RE2 model shown © 2011 Viking Preferred Service...
  • Page 31: Grill Burner

    If supply is proper and still no flow, verify gas valve and orifice. If orifice or air shutter is not plugged and still not flowing, replace the gas valve. Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 32: Infrared Rotisserie Burner

    If the voltage is proper, verify the igniter and connections are proper. Replace or repair as needed. To access the Rotisserie Burner: 1. Open lid and remove upper rack. Upper Rack Screws Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 33: Rotisserie Motor

    The switch should read 0 in the on position and open in the off position. Ensure the cord is securely attached. If the switch and cord are proper and the motor still does not turn, replace the motor. © 2011 Viking Preferred Service...
  • Page 34: Interior Lights

    Switch should be open in the off position and read 0 in the on position. If switch is good, verify wiring. If wiring is good and bulb still does not illuminate, replace socket. Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 35 3. With the canopy removed, the spring index, canopy spring, and canopy retainer are accessible. Note the location of the spring in the spring index and canopy top end mount prior to removal. 5. Reverse procedure to reassemble. Note: VGIQ410-3RE2 model shown © 2011 Viking Preferred Service...
  • Page 36: Component Testing

    Infrared screen Verify no black spots on screen. Grill rotisserie fails to Electrical cord Verify secure connection. operate Circuit breaker Verify breaker is not tripped or fuse is blown. Power supply Verify power is available. © 2011 Viking Preferred Service...
  • Page 37 TO GRD CNTR GRILL VALVE SWITCH ROTISSERIE PUSH BUTTON SWITCH RIGHT GRILL VALVE SWITCH REIG 4 REIG 3 REIG 2 REIG 1 SPARK TO GRD CANOPY LIGHT LIGHT SWITCH CANOPY LIGHT LIGHT TRANSFORMER CONTROL PANEL LIGHTS © 2011 Viking Preferred Service...
