Instructions for Using
UNiK A
Professional Power Amplif iers
UNiK A
POWER
OFF
ON
CH-1
CH-2
POWER
CLIP
SIGNAL
CLIP
SIGNAL

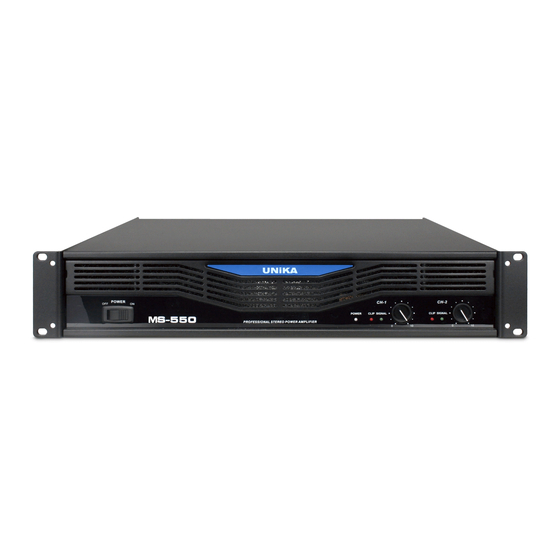

MS-550
PROFESSIONAL STEREO POWER AMPLIFIER
UNiK A
POWER
CH-1
CH-2
OFF
ON
POWER
CLIP
SIGNAL
CLIP
SIGNAL
MS-750
PROFESSIONAL STEREO POWER AMPLIFIER
UNiK A
POWER
CH-1
CH-2
OFF
ON
POWER
CLIP
SIGNAL
CLIP
SIGNAL
MS-1050
PROFESSIONAL STEREO POWER AMPLIFIER
UNiK A
POWER
CH-1
CH-2
OFF
ON
POWER
CLIP
SIGNAL
CLIP
SIGNAL
MS-2050
PROFESSIONAL STEREO POWER AMPLIFIER
UNiK A
POWER
CH-1
CH-2
OFF
ON
POWER
CLIP
SIGNAL
CLIP
SIGNAL
MS-3050
PROFESSIONAL STEREO POWER AMPLIFIER
Index
0
2
Introduction
03 Front Panel
04 Rear Panel
05 Set Up
07 Operating Modes
09 Protection
10 Specifications
User Instructions
This booklet contains important information concerning the proper and safe operation of your new amplifier..
MS-Series
MS550 / MS750 / MS1050 / MS2050 / MS3050
Made in Taiwan
