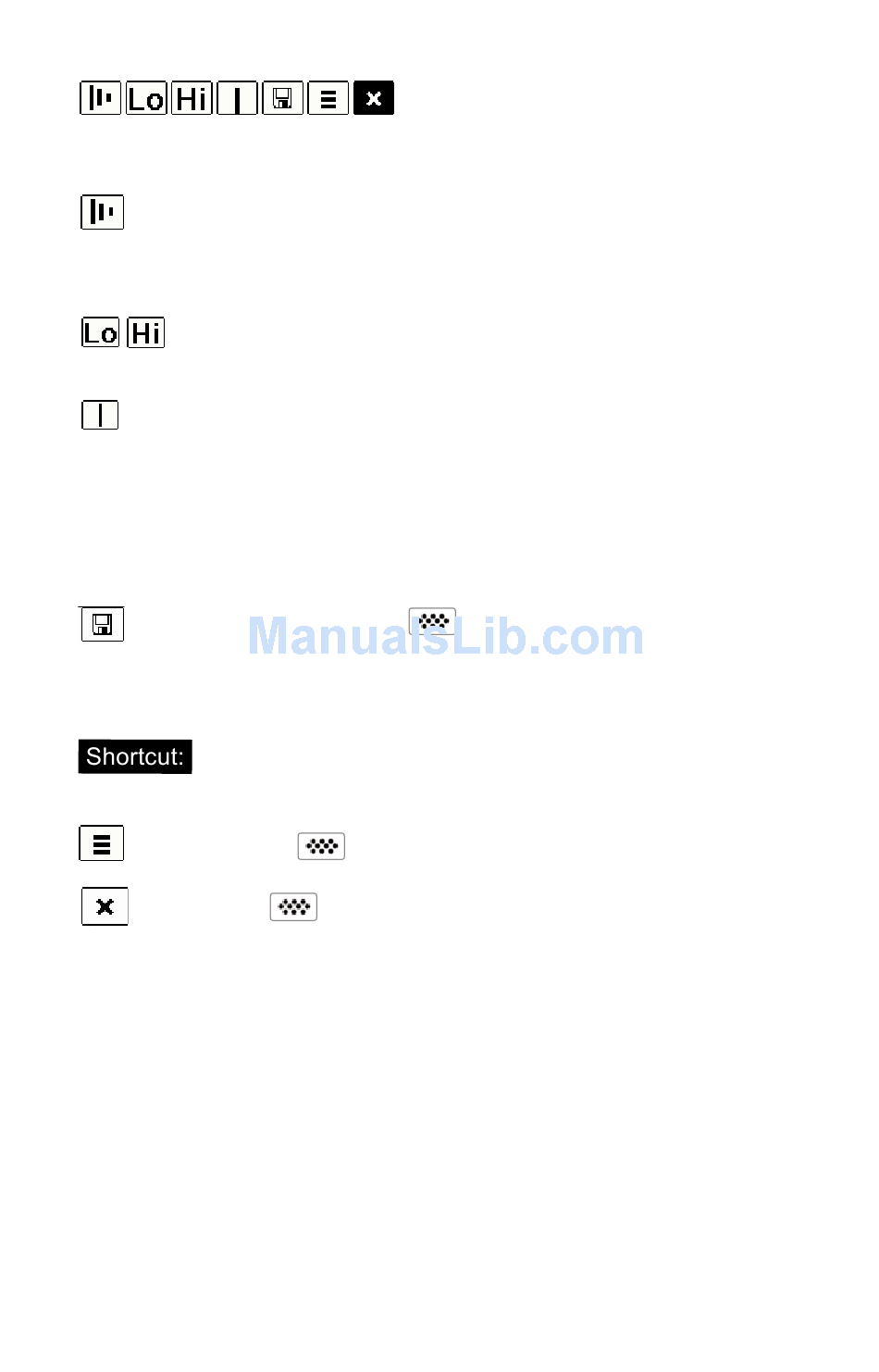

Use the navigation Up (move left) and Down (move right) buttons
to highlight icons on the graphic display.
Zoom - Visually magnifies the waveform of the displayed
peaks for more visibility. Pressing the (+) or (-) button repeatedly
will increase/decrease the zoom.
Gage's Lo or Hi measuring range (See pg. 11
Cursor - The Cursor allows for further analysis of displayed
waveform. Use the (-)(+) buttons to move the green cursor line left
or right over the waveform. The thickness value is displayed at the
top right of the cursor line. This feature is particularly
useful in multi-layer applications where there are more than
3 distinct layers.
Screen Capture - Press
copy of the current display. The last 10 screen captures are stored
in memory and can be accessed when connected to a computer
(See examples pg. 22 and PosiSoft USB Drive pg. 23).
capture any screen.
Menu - Press
Exit - Press
button to return to the Graphics display.
