Layers - DeFelsko PosiTector 200 Instruction Manual

Layers

Advanced models of the PosiTector 200 are capable of
numerically displaying up to three individual layer thicknesses in a
multi-layer system.
Example:
Two Layer Application
Layer 1
Layer 2
Substrate

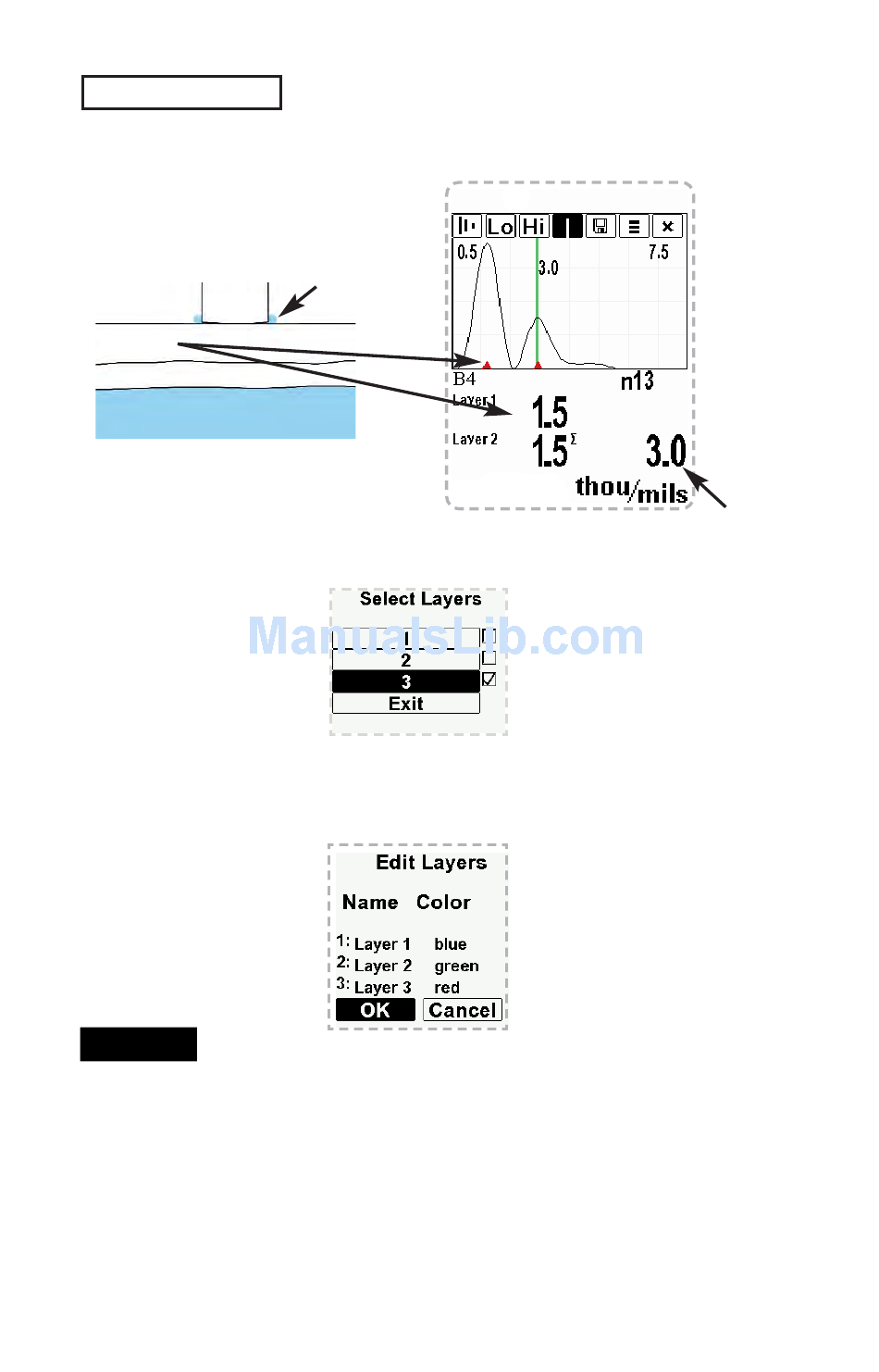

From the Layers menu option...
Select up to three individual layer thickness values:
Edit:
- Edit Layer Names (up to 7 characters)
- Edit Layer Color (blue, green or red) - See Display, pg. 21.
NOTES:
• Before setting up the Gage for multi-layer measurement, it is
recommended that you first take measurements in single
layer mode and interpret the results using the Graphics option
(See pg. 14).
• When a batch is Open, press the Up button to view the Batch
Chart.
