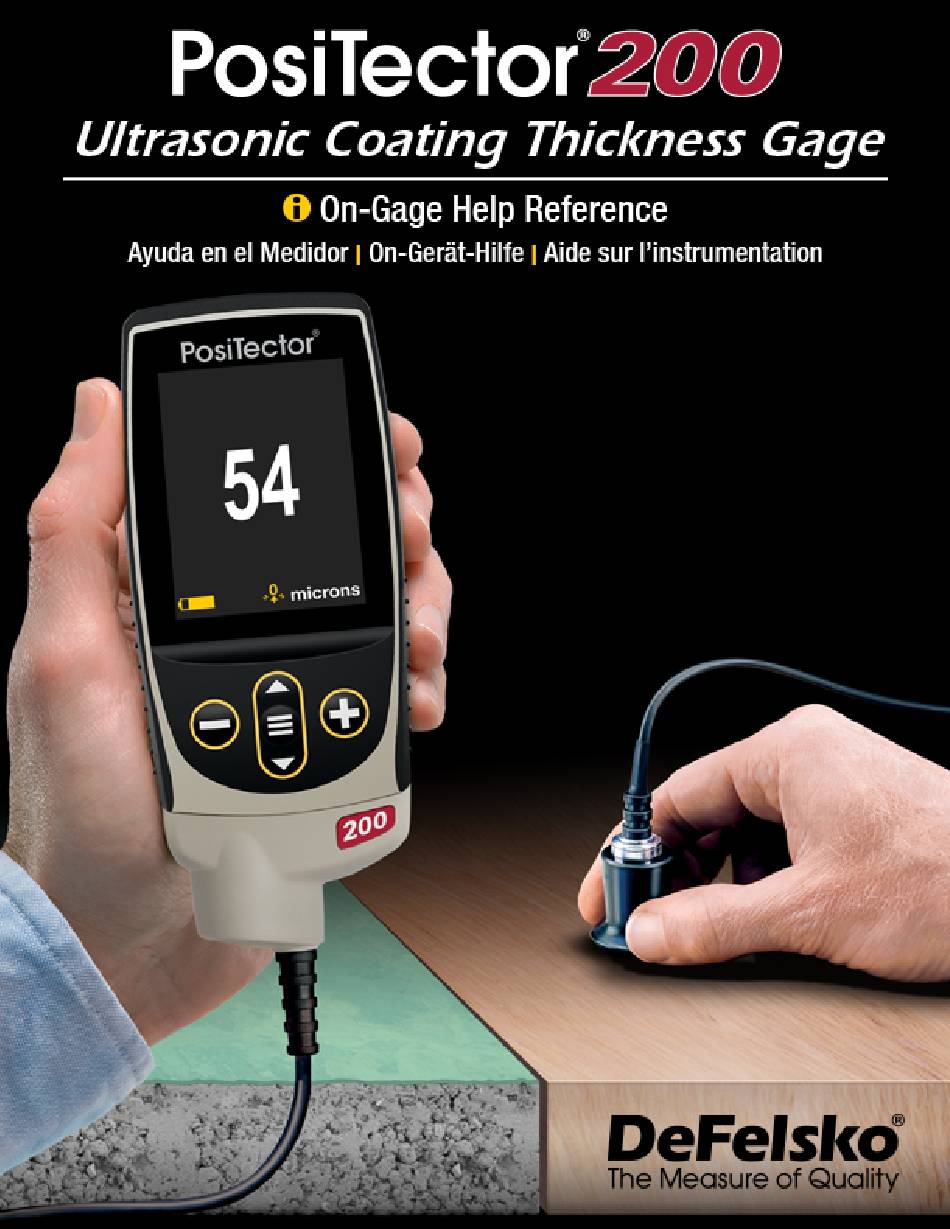

DeFelsko PosiTector 200 Reference

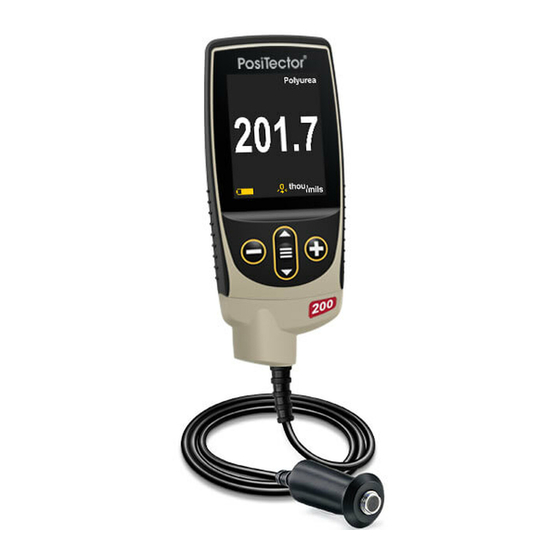

Ultrasonic coating thickness gage
Hide thumbs Also See for PosiTector 200:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for DeFelsko PosiTector 200

Summary of Contents for DeFelsko PosiTector 200

  • Page 2 For an overview of the use and operation of your instrument, refer to its included Instruction Manual or download a digital PDF at www.defelsko.com/manuals. Update your gage to ensure your PosiTector includes these latest help references.

  • Page 3: Table Of Contents

    Contents Memory ........................Open ........................View ........................Display ........................Prompted Batch ..................... Annotate ........................ Print ........................Delete Template ....................New Batch ......................Close ........................Delete ........................Batch Summary ..................... Calibration Settings ...................... Zero ........................Cal Reset ....................... Cal Lock ......................... Polyurea .........................
  • Page 4 Sync.net Now ....................USB Drive ......................JSON Files ....................HTML Report ..................... Stream ......................Auto Sync .net ....................USB Keyboard ....................WiFi ........................Setup Options ....................AP Channel ....................Gage Name ....................Server Enable .................... IP Settings ....................AP Passphrase ..................WiFi Reset ....................

  • Page 5: Memory

    Prompted Batch Create pre-defined batches in PosiSoft Desktop with onscreen text and image prompts for each reading, then upload to PosiTector 200 gages. Ideal for ensuring a consistent measurement pattern for repetitive jobs or when specific measurement locations are Page 3...

  • Page 6: Annotate

    required. Create and store multiple templates for different jobs. See the PosiSoft Desktop help file for full instructions. NOTE: Deleting a Template from the PosiTector does not remove it from PosiSoft Desktop. Annotate Create meaningful batch names and enter notes directly on the Gage using a familiar onscreen QWERTY keyboard.

  • Page 7: Close

    On screen statistics are immediately updated with each measurement. New batches are date and time stamped when they are created. Shortcut: When a batch is open, press (+) to create a new batch NOTE: Remove the last reading from the current open batch by pressing (-). Close Stops the recording process, closes the current batch, and removes batch information from the display.

  • Page 8: Calibration Settings

    NOTE: The PosiTector 200 measures most polymer coatings accurately out-of-box with no adjustment required. Zero The probe must be periodically zeroed to compensate for both temperature and probe wear effects.

  • Page 9: Cal Reset

    1. Select Lo or Hi. 2. Use the (-) (+) buttons to decrease/increase the displayed value. IMPORTANT: The PosiTector 200 will ignore any readings outside the selected range. If the coating thickness is outside this range, incorrect or dashed readings may occur. Page 7...

  • Page 10: Thickness

    Thickness The PosiTector 200 measures most polymer coatings accurately out-of-box with no adjustment required. To determine if an adjustment is necessary, select a coating sample of known thickness as close as possible in composition to the intended application. For best results, the thickness of the sample should be equal to or slightly greater than the maximum expected thickness of the coating to be measured.

  • Page 11: Setup

    - M11.1.0 is the end of EDT. ‘M’ specifies that the date will follow a ‘Month.Week.Day’ format. 11.1.0 is the eleventh month, first week, first day (Sunday) Detailed NTP instructions available at: www.defelsko.com/NTP Reset Restores factory settings and returns the Gage to a known condition. The following occurs: All batches, stored datasets, batch names and screen captures are erased.

  • Page 12: Layers

    Date, Time and WiFi are not affected by either Reset. Layers The PosiTector 200 Advanced is capable of numerically displaying up to three individual layer thicknesses in a multi-layer system. Select this option to edit the number of layers (default = 1 layer), their names and chart colors.

  • Page 13: Select Layers

    NOTES: Before setting up the Gage for multi-layer measurement, it is recommended that you first take measurements in single layer mode and interpret the results using the Graphics option. When a batch is open, press the Up button to view the Chart. Select Layers Select the number of layers to display.

  • Page 14: Backlight

    Two materials of very different density and a well-defined interface would result in a high, narrow peak. The PosiTector 200 has the ability to measure the thickness associated with either the highest peak(s) or the deepest peak(s), depending on whether Max Thick Mode is enabled.

  • Page 15: Language

    When Max Thick Mode is selected, the PosiTector 200 reports the echo or peak associated with the deepest interface in the coating system, instead of the loudest. This is often more effective at reporting the total coating thickness above the substrate interface, and eliminates the need to adjust the Lo Range.

  • Page 16: Connect

    SPC data collection software. See www.defelsko.com/update Pairing The instrument and receiving device must be paired before readings can be transmitted. For pairing instructions, see www.defelsko.com/bluetooth Info Lists information about your current Bluetooth connection, including the currently paired device and MAC address.

  • Page 17: Sync.net Now

    NOTE: While connected, power is supplied through the included USB-C cable. The batteries are not used and the body will not automatically power down. Sync.net Now When selected, the Gage immediately synchronizes stored measurement data to PosiSoft.net (USB connection required to a computer running PosiSoft Desktop). Alternatively, select Auto Sync.net from within the USB connect menu to automatically synchronize upon connection to a PC.

  • Page 18: Html Report

    USB keyboard. Each reading is typed, followed by a carriage return (enter). This provides a simple way to capture readings as they are taken without any special software, drivers or complex setup. For more information on USB Keyboard mode visit: www.defelsko.com/connect Page 16...

  • Page 19: Wifi

    WiFi Allows connection to your local wireless network or mobile hot spot. Ideal for using your network’s internet connection for synchronizing stored measurements with PosiSoft.net. See www.defelsko.com/wifi Setup Options Setup WiFi configuration options for the Gage. AP Channel The access point channel corresponding to a frequency range. (Default Channel: 6) For most users the default channel will not have to be altered.

  • Page 20: Ap Passphrase

    Internet of Things device and is ideal for users with an existing WiFi network and a desire to stream live readings to a central application or database. For more information on WiFi Streaming visit: www.defelsko.com/connect Auto Sync .net When enabled, the Gage automatically attempts to synchronize stored measurement data with PosiSoft.net upon power-up (internet connected WiFi network required).

  • Page 21: Enabled

    Securing your Access Point To ensure the PosiTector is only accessible to authorized devices, it is important that you enter a passphrase (password) for the Access Point. The default Passphrase is password. In the Connect > WiFi > Setup menu, select AP Passphrase to modify the default passphrase.

  • Page 22: Bluetooth Smart

    (enter). This provides a simple way to capture readings as they are taken without any special software, drivers or complex setup. For more information on BLE Keyboard mode visit: www.defelsko.com/connect Smart Probes Displays available PosiTector DPM-L and PosiTector CMM-IS Smart Probes within range of the PosiTector gage.

  • Page 23: Enabled

    Determines if a software update is available for your Gage. To perform an update the Gage must be connected to an internet connected computer running PosiSoft Desktop, or a WiFi network. See www.defelsko.com/update WARNING: The Gage will perform a Hard Reset after an update. All stored measurements will be erased from memory.

  • Page 24: Help

    Press (+) or touch the (i) icon to display the help. Update your gage to ensure that you have the latest on-gage help information. A formatted PDF containing all on-gage help items is available at www.defelsko.com/help. Menu Operation To access the Menu, power-up the gage, then press the center navigation button. Either the keypad or touch screen can be used to navigate the menu.

  • Page 25: Power Off

    Power Off To conserve battery life, the gage will automatically go to sleep after 5 minutes of inactivity and enter Sleep Mode. While in Sleep Mode the gage powers up significantly faster— convenient when moving between parts or locations. The gage will completely power off after 4 hours of inactivity.
