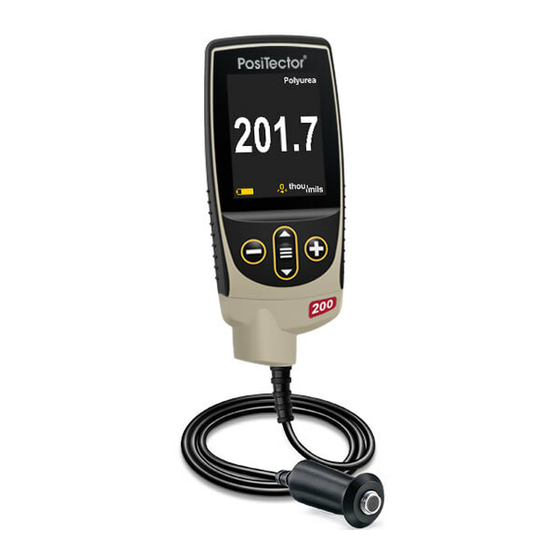

DeFelsko PosiTector 200 Instruction Manual

Ultrasonic coating thickness gage
Hide thumbs Also See for PosiTector 200:
Table of Contents

Advertisement

Quick Links

Download this manual
PosiTector 200
INSTRUCTION MANUAL v. 2.0
Ultrasonic Coating
Thickness Gage
Standard
and
Advanced
Simple. Durable. Accurate.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PosiTector 200 and is the answer not in the manual?

Questions and answers

Related Manuals for DeFelsko PosiTector 200

Summary of Contents for DeFelsko PosiTector 200

  • Page 1 PosiTector 200 INSTRUCTION MANUAL v. 2.0 Ultrasonic Coating Thickness Gage Standard Advanced Simple. Durable. Accurate.

  • Page 2: Power-Up / Power-Down

    Thickness Gage that uses a non-destructive ultrasonic principle to measure coating thickness on a wide variety of substrates. The PosiTector 200 probe emits a high frequency sound pulse that travels into the coating via a coupling gel and reflects from ANY surface that is different in density.

  • Page 3: Operation Overview

    All probes or gages are shipped with a Certificate of Calibration. For organizations with re-certification requirements, gages may be returned at regular intervals for calibration. DeFelsko recommends that customers establish gage calibration intervals based upon their own experience and work environment.

  • Page 4: Menu Operation

    Menu Operation Menu Operation Gage functions are menu controlled. To access the Menu, turn the Gage on, then press the button. Memory Zero Cal Settings Setup Reset Graphics* Graphics on Advanced Gage Info models only Units Set Clock Current selection is displayed Language with darkened background To navigate, press (-) to scroll DOWN, (+) to scroll UP...

  • Page 5: How To Measure

    How to Measure How to Measure 1. Apply couplant to the surface of your part. 2. After power-up, place the probe FLAT on the surface and press down. 3. Lift the probe when you hear a double BEEP or see the green indi- cator light blink.
  • Page 6 Important: When measuring, the Gage finds the most distinct interface within the two Gate settings. If the coating thickness is outside this range, incorrect or dashed readings may occur. The PosiTector 200 interprets the largest “echo” or echoes within the gates as the coating/substrate echo.
  • Page 7 To make adjustments: 1. Measure the coated part. 2. Select the Set Gates menu option. 3. Gate A can be changed first. Adjust the value down (-) or up (+). Press to accept the value and to move to Gate B. 4.
  • Page 8 Adjust Thickness Option Adjust Thickness Option Adj Thickness Select a reference standard of material as close as possible in composition to the intended application. For best results, the thickness of the reference stan- dard should be equal to or slightly greater than the thickness of the coating to be measured.

  • Page 9: Memory Mode Memory

    Memory Mode Memory Mode Memory PosiTector record 10,000 measurements in up to 1000 groups (batches) for on-screen statistical purposes, for printing to an optional IR printer, or for downloading to a personal computer using optional PosiSoft software and USB cable. New Batch -closes any currently opened batch and creates a new batch name using the next higher number.
  • Page 10 Close -stops the recording process, closes the current batch, and removes the statistics from the display. Delete -removes a batch completely from memory. The name is deleted and all measurements are erased. View -lists all readings on the display from the current or most recently used batch.

  • Page 11: Setup Menu Setup

    Setup Menu Setup Menu Setup Reset Reset restores factory settings and returns the Gage to a known, out-of-the-box condition. It is handy when you want to “start all over” The following occurs: - all batches are closed and stored measurements are erased.
  • Page 12 The PosiTector 200 Advanced chooses the highest of peaks when trying to determine coating layer thickness. For example, if the number of layers is set to 3, the 3 highest peaks between the A &...
  • Page 13 PosiSoft using the Gage Utilities -> Set Clock func- tion in PosiSoft. Measuring Multiple Layers Measuring Multiple Layers Layers Advanced models only Advanced models of the PosiTector 200 are capable of numerically displaying up to 3 individual layer thicknesses in a multi-layer system. Couplant Probe Layer 1...

  • Page 14: Available Options

    Options vailable Options A variety of accessories are available to help you get the most from your PosiTector 200 coating thickness gage. Calibration, V erification and Calibration, V erification and Adjustment Adjustment Three steps ensure best accuracy… 1. Calibration - typically done by the manufacturer or a qualified lab 2.

  • Page 15: Application Notes

    The PosiTector 200 is factory calibrated. But in order for it to take accurate thickness measurements of a particular material it might be necessary to adjust the gage for that material. To determine if an adjustment is necessary for your application, measure a sample of known thickness of the coating material to be measured.
  • Page 16 limits of the gage and assumes the largest “echo” is coating/substrate echo (single coating applications only). Adjustable measurement Gates have been provided for the user to force the instrument to ignore echoes from unwanted boundaries within the sample. Several examples below help to illustrate the use of Gates for specific applications.

  • Page 17: Troubleshooting

    roubleshooting roubleshooting Gage does not turn on Make sure the + and - battery terminals are posi- tioned properly and that fresh Alkaline batteries are being used. Gage powers up but fails to stay on Replace batteries with fresh Alkaline batteries. If problem persists return Gage for service.

  • Page 18: Changing The Batteries

    Be sure to also include the gage, probe, your company name, company contact, telephone number and fax number or email address. Website: www.defelsko.com/support echnical Dat echnical Dat Conforms to: ASTM D6132 and ISO 2808 Gage body dimensions: (146 x 64 x 31 mm) 5.75"...

  • Page 19: Warranty

    DeFelsko’s sole option. In no event shall DeFelsko be liable for any indirect, special, incidental or consequential damages. The warranty is voided if the Instrument has been opened.
  • Page 20 DeFelsko Corporation. DeFelsko, PosiTector and PosiSoft are trademarks of DeFelsko Corporation regis- tered in the U.S. and in other countries. Other brand or product names are trade- marks or registered trademarks of their respective holders.
