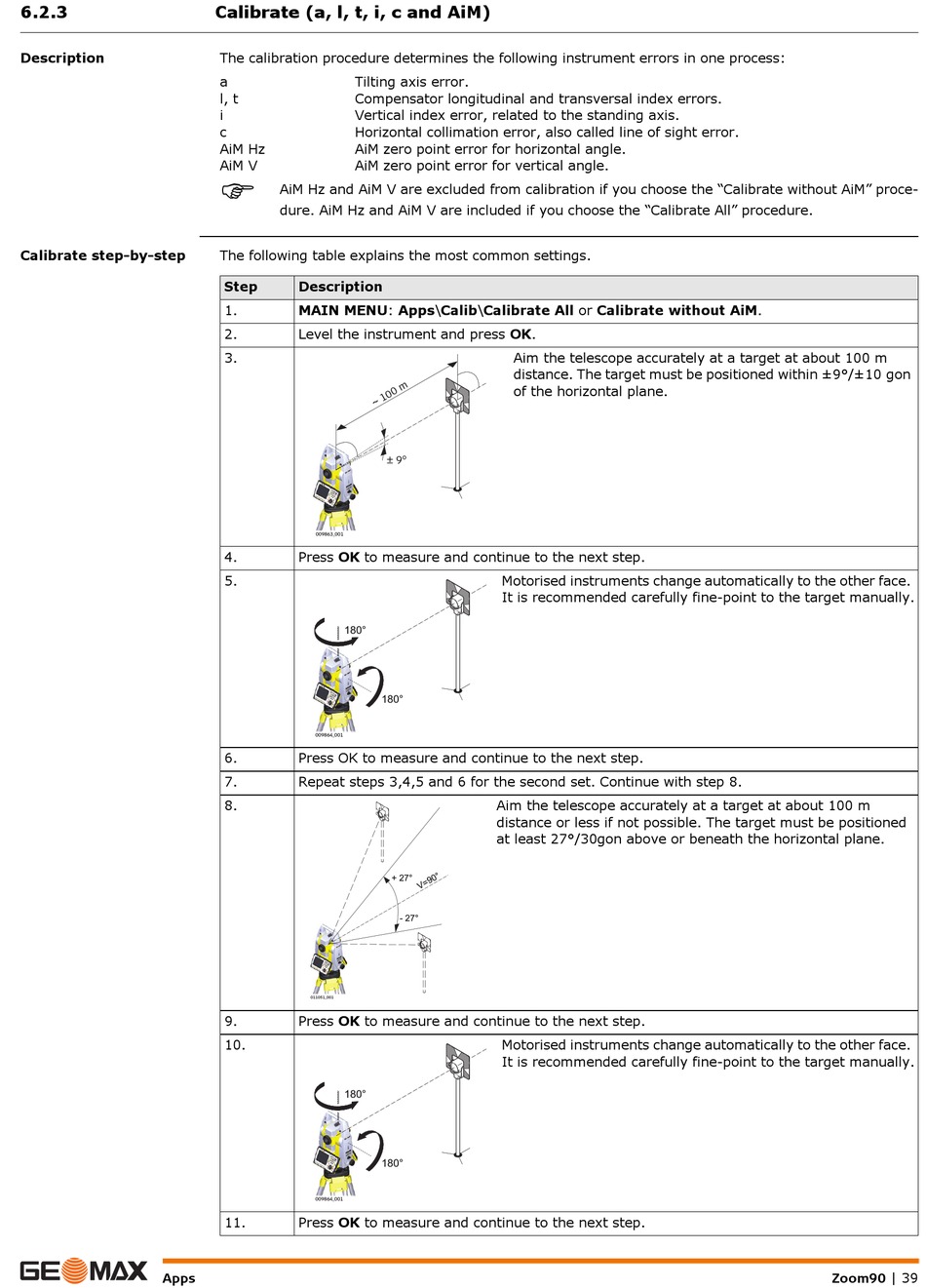

Calibrate (A, L, T, I, C And Aim) - GeoMax Zoom90 User Manual

6.2.3
Description
Calibrate step-by-step
Apps

Calibrate (a, l, t, i, c and AiM)

The calibration procedure determines the following instrument errors in one process:
a Tilting axis error.
l, t Compensator longitudinal and transversal index errors.
i Vertical index error, related to the standing axis.
c Horizontal collimation error, also called line of sight error.
AiM Hz AiM zero point error for horizontal angle.
AiM V AiM zero point error for vertical angle.

AiM Hz and AiM V are excluded from calibration if you choose the "Calibrate without AiM" proce-
dure. AiM Hz and AiM V are included if you choose the "Calibrate All" procedure.
The following table explains the most common settings.
Step Description
1. MAIN MENU: Apps\Calib\Calibrate All or Calibrate without AiM.
2. Level the instrument and press OK.
3.
± 9°
009863_001
4. Press OK to measure and continue to the next step.
5.
180°
180°
009864_001
6. Press OK to measure and continue to the next step.
7. Repeat steps 3,4,5 and 6 for the second set. Continue with step 8.
8.
+ 27°
011051_001
9. Press OK to measure and continue to the next step.
10.
180°
180°
009864_001
11. Press OK to measure and continue to the next step.
Aim the telescope accurately at a target at about 100 m
distance. The target must be positioned within ±9°/±10 gon
of the horizontal plane.
Motorised instruments change automatically to the other face.
It is recommended carefully fine-point to the target manually.
Aim the telescope accurately at a target at about 100 m
distance or less if not possible. The target must be positioned
at least 27°/30gon above or beneath the horizontal plane.
- 27°
Motorised instruments change automatically to the other face.
It is recommended carefully fine-point to the target manually.
Zoom90 | 39
