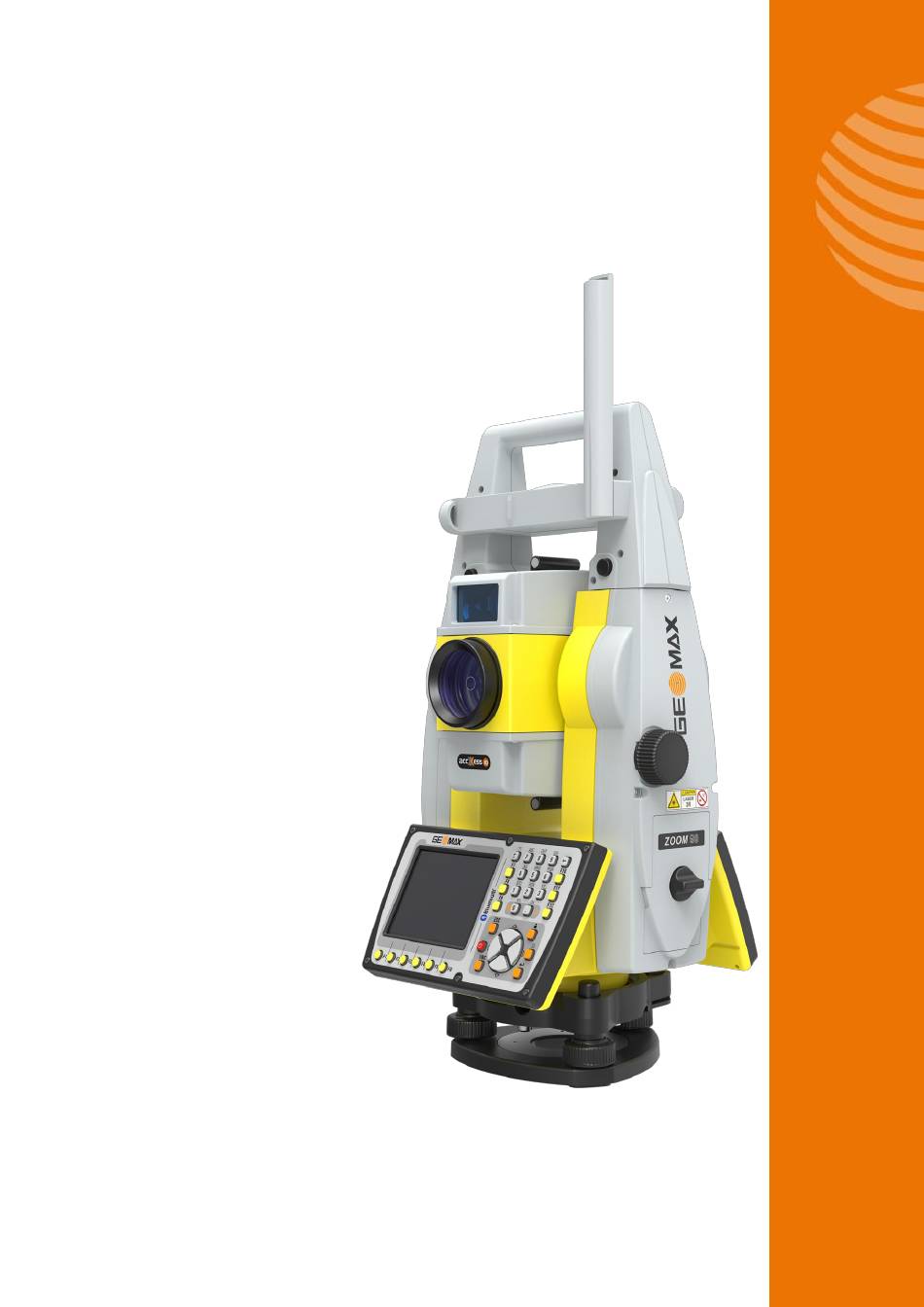

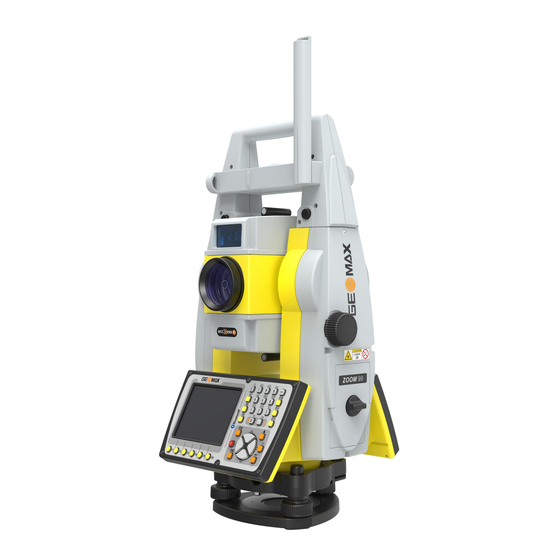

- Page 1 GeoMax TPS Zoom70/90 Series Installation Guide Version 2.0 English - 1 - Zoom70/90 Series Installation Guide © 2018 GeoMax AG, Widnau, Switzerland...
-
Page 2: Table Of Contents
IELD ONTROLLER 4.1 S ETTING UP THE IELD ONTROLLER Connecting to the PC Installation of FieldGenius/ Layout Pro Registration of FieldGenius/ Layout Pro Connection to the instrument - 2 - Zoom70/90 Series Installation Guide © 2018 GeoMax AG, Widnau, Switzerland... -
Page 3: Introduction
The instructions cover all the required installation tasks for the Zoom70/90 instrument, Zenius5 Field Controller and Field Genius/Layout Pro software. The latest versions of GeoMax documents and software referred to in this document are available from... -
Page 4: Preparation Of The Instrument
When receiving a new instrument, it should be checked that the latest firmware version is installed. The installed version can be seen in the “GeoMax Toolkit” application installed. To accessed start “GeoMax Toolkit” and select “SysInfo” (2). Select the second tab-page to see the version information. -
Page 5: Uploading To The Instrument
Insert the SD card into the instrument and power on. To load the files onto the instrument, start GeoMax Toolkit and navigate to MAIN MENU / APPS / UPDATE. If the firmware needs upgrading, then install this first by selecting F1. Firmware. Then install the language file by selecting F2. -
Page 6: Installing Usb Drivers For The Zoom70/90
To install the drivers, do the following: 1) With your Internet browser, navigate to the GeoMax download page. 2) Download the Zoom70/90 USB drivers. 3) Make sure the Zoom70/90 is not connected to the PC 4) Run the SetupZoom70_90_USB_xx.EXE... -
Page 7: Installing 3Rd Party Software Onboard The Instrument
The Windows software on the supplied Getac Handheld is only available in English language. Microsoft restricts the installation of alternative languages with this operating system. - 7 - Zoom70/90 Series Installation Guide © 2018 GeoMax AG, Widnau, Switzerland... -
Page 8: Connecting To The Pc
IELD ENIUS AYOUT Download the latest version of GeoMax Field Genius/Layout Pro from from GeoMax Website at http://www.geomax-positioning.com/Downloads.htm?cid=15613 Here the latest installation version and Release Notes of FieldGenius/Layout Pro is available. Download the Devices Installation and save onto your PC. -
Page 9: Registration Of Fieldgenius/ Layout Pro
Device ID together with the GUID (global unique identity) is used to obtain the key. The GUID can be found on the printed Field Genius/Layout Pro card that was supplied together with your Zoom70/90 equipment. - 9 - Zoom70/90 Series Installation Guide © 2018 GeoMax AG, Widnau, Switzerland... - Page 10 Apply Key. Note: Please make certain that the Device ID is entered correctly the first time, since an activation key cannot be generated again with a different ID. - 10 - Zoom70/90 Series Installation Guide © 2018 GeoMax AG, Widnau, Switzerland...
-
Page 11: Connection To The Instrument
At the Instrument Selection screen, a connection to the instrument can be made. Ensure that the instrument is switched on and select Instrument Type as Total Station. In the - 11 - Zoom70/90 Series Installation Guide © 2018 GeoMax AG, Widnau, Switzerland... - Page 12 Instrument Profile window, tap Add and enter a name for your instrument. Save the name and then tap Edit to configure the profile. At Model & Communication select the Make as GeoMax, Model as Zoom70/90 and Port as Radio. In Radio Settings, make sure to set the Connection Method to Long Range Bluetooth.
