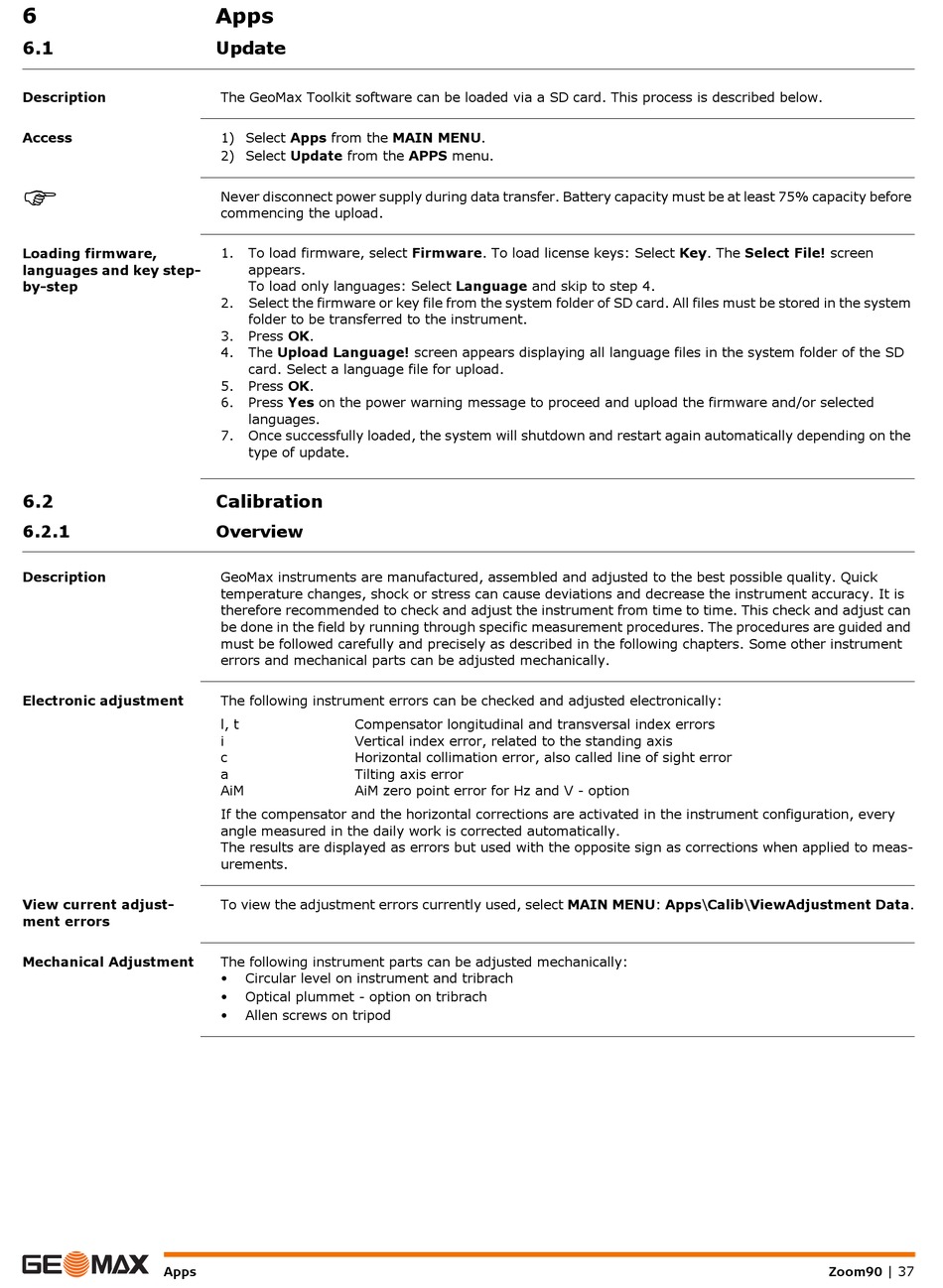

6
6.1
Description
Access

Loading firmware,
languages and key step-
by-step
6.2
6.2.1
Description
Electronic adjustment
View current adjust-
ment errors
Mechanical Adjustment

Apps

Apps

Update

The GeoMax Toolkit software can be loaded via a SD card. This process is described below.
1) Select Apps from the MAIN MENU.
2) Select Update from the APPS menu.
Never disconnect power supply during data transfer. Battery capacity must be at least 75% capacity before
commencing the upload.
1. To load firmware, select Firmware. To load license keys: Select Key. The Select File! screen
appears.
To load only languages: Select Language and skip to step 4.
2. Select the firmware or key file from the system folder of SD card. All files must be stored in the system
folder to be transferred to the instrument.
3. Press OK.
4. The Upload Language! screen appears displaying all language files in the system folder of the SD
card. Select a language file for upload.
5. Press OK.
6. Press Yes on the power warning message to proceed and upload the firmware and/or selected
languages.
7. Once successfully loaded, the system will shutdown and restart again automatically depending on the
type of update.

Calibration

Overview

GeoMax instruments are manufactured, assembled and adjusted to the best possible quality. Quick
temperature changes, shock or stress can cause deviations and decrease the instrument accuracy. It is
therefore recommended to check and adjust the instrument from time to time. This check and adjust can
be done in the field by running through specific measurement procedures. The procedures are guided and
must be followed carefully and precisely as described in the following chapters. Some other instrument
errors and mechanical parts can be adjusted mechanically.
The following instrument errors can be checked and adjusted electronically:
l, t Compensator longitudinal and transversal index errors
i Vertical index error, related to the standing axis
c Horizontal collimation error, also called line of sight error
a Tilting axis error
AiM AiM zero point error for Hz and V - option
If the compensator and the horizontal corrections are activated in the instrument configuration, every
angle measured in the daily work is corrected automatically.
The results are displayed as errors but used with the opposite sign as corrections when applied to meas-
urements.
To view the adjustment errors currently used, select MAIN MENU: Apps\Calib\ViewAdjustment Data.
The following instrument parts can be adjusted mechanically:
• Circular level on instrument and tribrach
• Optical plummet - option on tribrach
• Allen screws on tripod
Zoom90 | 37
