Electrical specifications

M46 Pumps HC EDC

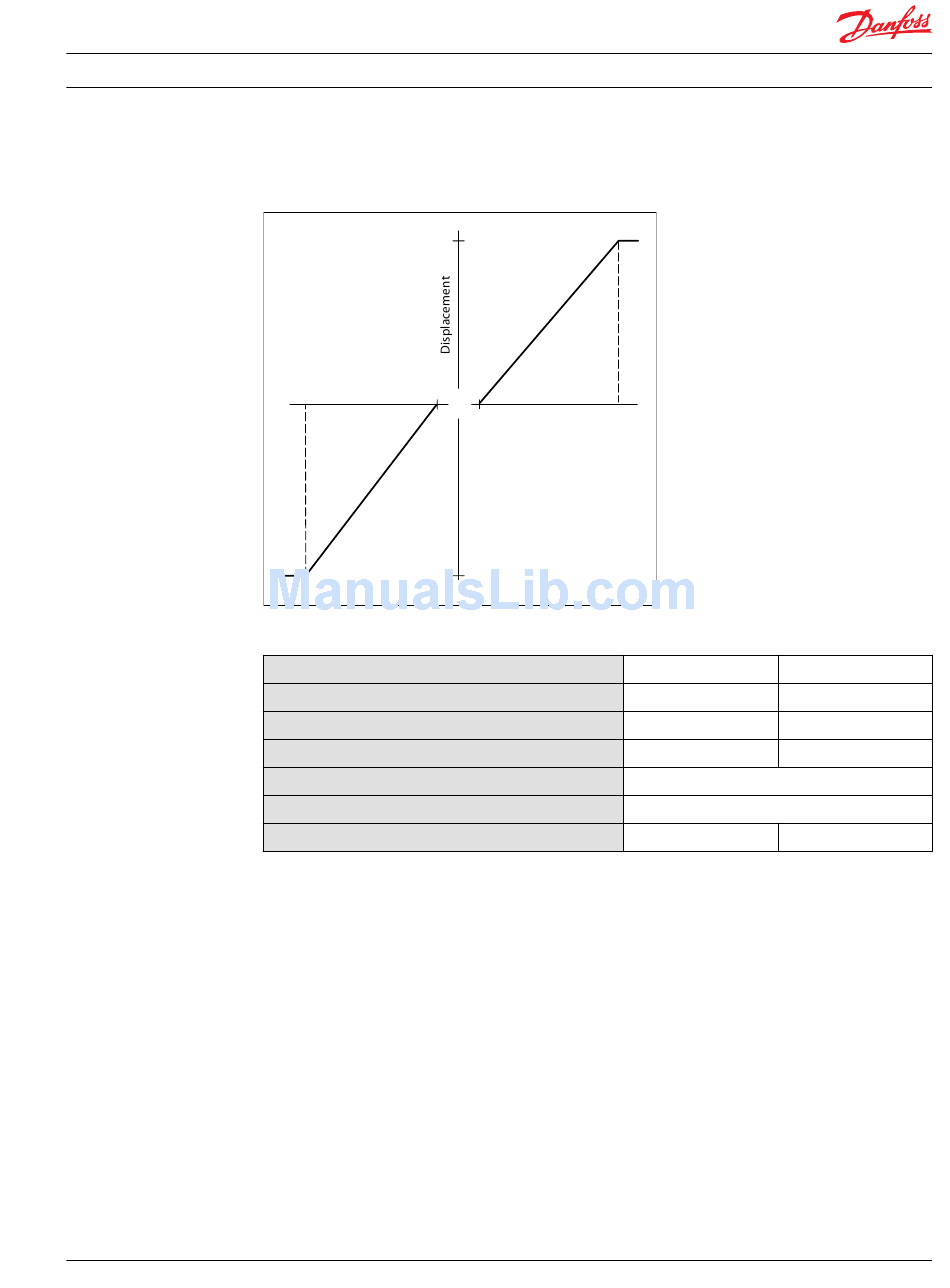

Pump displacement vs. control current
100 %
-b -a
100 %
Solenoid electrical specifications
Voltage
Maximum current
Coil resistance @ 20 °C [70 °F]
Coil resistance @ 80 °C [176 °F]
PWM Range
*
PWM Frequency (preferred) *
Inductance
*
PWM signal required for optimum control performance.
L1427804 • Rev AB • September 2015
Current mA
"0"
a b
P003479E
12V
1800 mA
3.66 Ω
4.52 Ω
70-200 Hz
100 Hz
33 mH
24V
920 mA
14.20 Ω
17.52 Ω
140 mH
