Dwyer Instruments One-Touch 616OT Series Installation And Operating Instructions

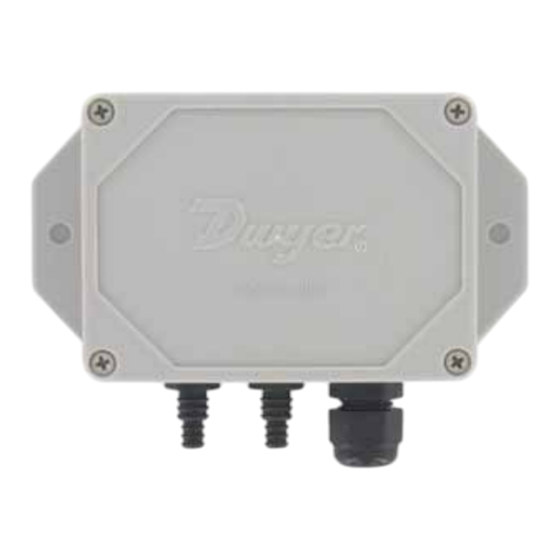

The Series 616OT One-Touch
an extremely versatile transmitter for monitoring pressure. The Series
616OT senses the pressure of air and compatible gases and sends a
standard 4-20 mA output signal. The single button simultaneous calibra-
tion of both zero and span reduces product installation and set up time.
INSTALLATION
Mounting:
The transmitter should be mounted on a vertical surface with the con-
nections directed down to prevent moisture from entering either the
pressure ports or the electrical cable entry.
Electrical Connection:
2-Wire Operation:
CAUTION: DO NOT EXCEED SPECIFIED SUPPLY
VOLTAGE RATINGS. PERMANENT DAMAGE NOT
COVERED BY WARRANTY WILL RESULT. 2-WIRE
UNITS ARE NOT DESIGNED FOR AC VOLTAGE OPER-
ATION.
DWYER INSTRUMENTS, INC.
P.O. Box 373 • Michigan City, IN 46361-0373, U.S.A.

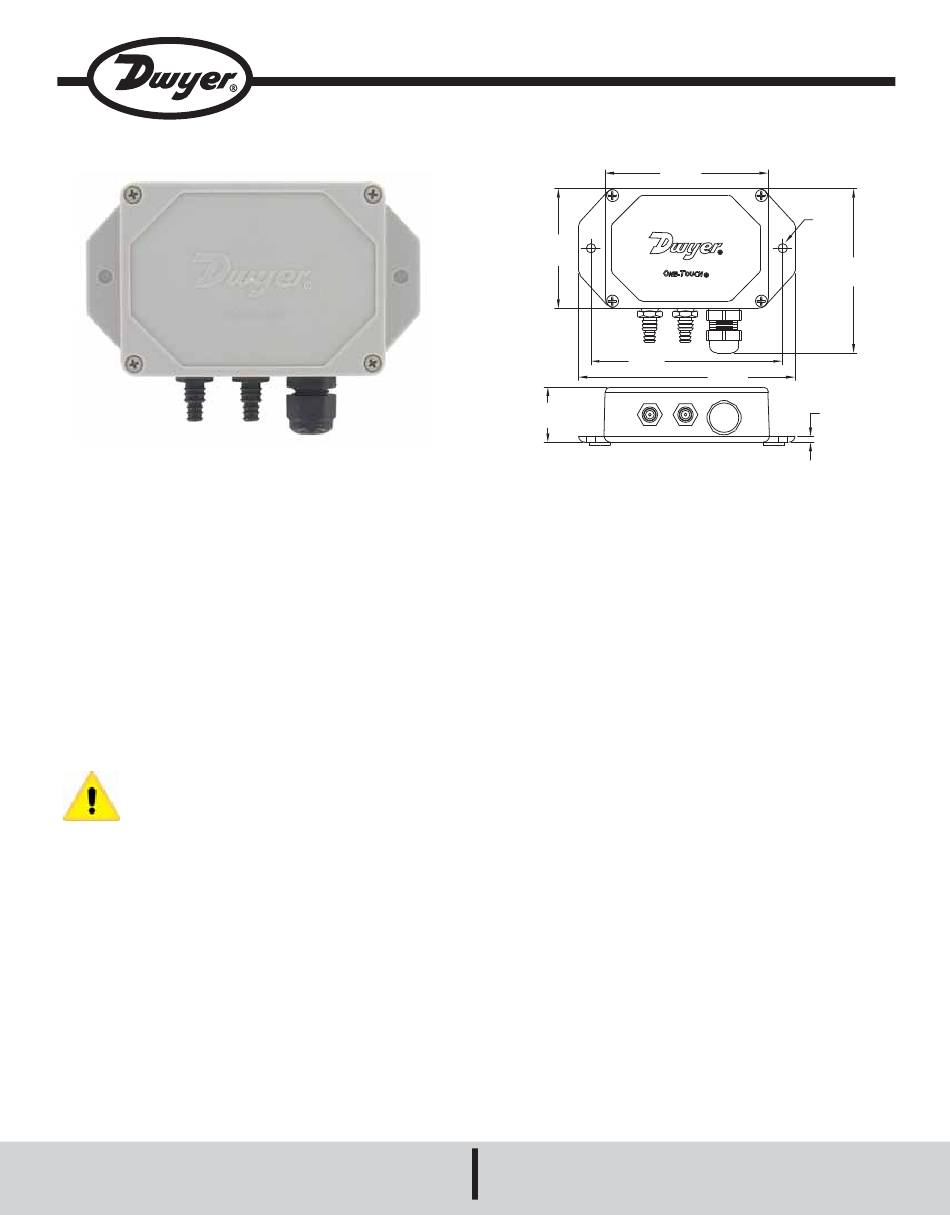

Series 616OT One-Touch
Specifications - Installation and Operating Instructions
® Differential Pressure Transmitter is
® Differential Pressure Transmitter
3-19/64
[83.74]
2-27/64
[61.52]
3-7/8
[98.43]
1-1/8
[28.58]
SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult Factory.
Accuracy: ±1%.
Thermal Effect: ±0.05%/°F (±0.03%/°C).
Stability: ±1% F.S. / year.
Temperature Limits: 0 to 140°F (-18 to 60°C).
Pressure Limits: 1 psi maximum, operation; 10 psi, burst.
Power Requirements: 2-wire. 10 to 35 VDC; 3-wire, 15 to 36 VDC.
Output Signal: 2-wire, 4 to 20 mA; 3-wire; 0 to 10 V.
Response Time: 300 ms.
Zero & Span Adjustments: One digital push button, zero & span cali-
bration.
Loop Resistance: Current output: 1250 Ohm max. Voltage output:
min. load resistance 1000 Ohm.
Current Consumption: 40 mA max.
Electrical Connections: Removable European Style Terminal Block
for 16 to 26 AWG.
Electrical Entry: Cable gland for 0.114 to 0.250" (2.9 to 6.4 mm) diam-
eter cable.
Process Connections: Barbed, dual size to fit 1/8" (3 mm) and 3/16"
(5 mm) I.D. rubber or vinyl tubing.
Enclosure Rating: NEMA 4X (IP65).
Weight: 4.0 oz (115 g).
Phone: 219/879-8000
Fax: 219/872-9057
Bulletin E-43-OT
2x ø3/16
[ø4.76]
3-21/64
[84.53]
4-3/8
[111.13]
1/8
[3.175]
www.dwyer-inst.com
e-mail: info@dwyer-inst.com
