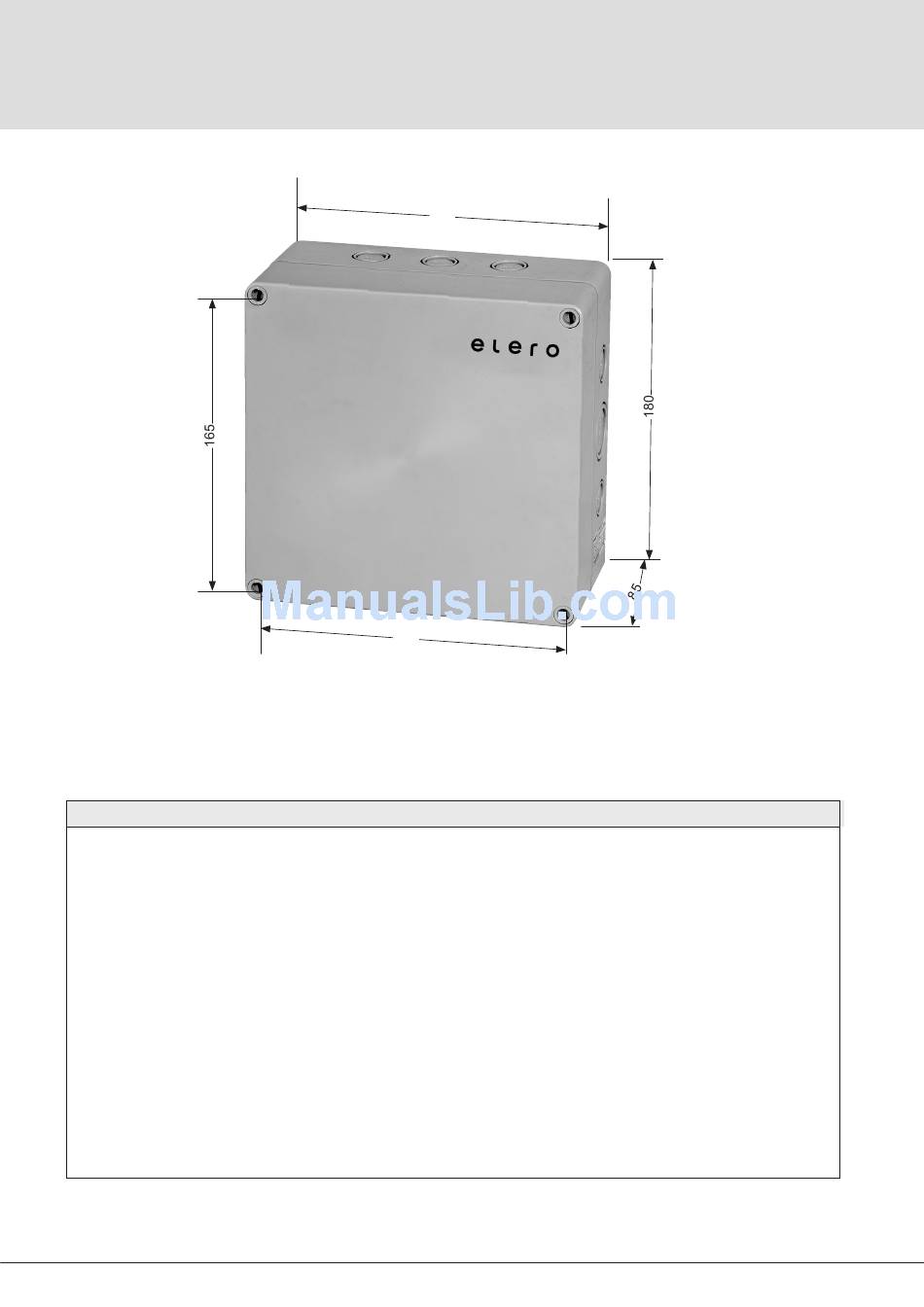

Fastening dimensions
Assembly
Notes for safe installation
1. Check the nominal voltage before making the electrical connections (3 x 400 V; 3 x 230 V or 1 x 230 V)
2. Install compact BoxControl close to the drive. Keep the controller free from dirt.
3. Connect the mains with the power off. Check that there is no power.
4. Connect the operating units.
5. Plug in motor and limit switch cable on the drive.
6. Close the housing cover on the drive.
7. Turn on the main switch.
8. Check direction of rotation with the up button. The drive has to turn in the UP direction.
9. If this is not the case, disconnect the controller from the mains and change over phases L1 and L2.
10. Reconnect the controller with the mains and check the direction of rotation once again.
11. Install the door.
12. Set the limit switch. See „Operating instructions for door drives".
13. Close the covers on the drive and controller properly.
14. Make sure that there is no dirt or damage on the sealing surfaces.
167
Housing fastening
below the cover screws
Hole diameter = 5 mm
182
