- Page 1 Compakt with electronic end switch Linear actuator Operating instructions Please take care of the operating instructions! 04/2016, TN: 2011156...
- Page 2 Translation from the original German version. All other documents in different languages are translations of the original version. Subject to change without notice. All rights reserved in the event of registrati-on of patents, working models or design patents.
-
Page 3: Table Of Contents
List of contents List of contents General ....................3 Information relating to the installation instructions ........... 3 Standards and guidelines ................. 3 Intended use ..................... 3 Foreseeable misuse ..................4 Warranty and liability ..................4 Customer service of the manufacturer ............. 5 Safety .................... - Page 4 List of contents 4.4.1 Teach-in of the limit positions ................. 21 4.4.2 Displays in the event of errors ................ 22 4.4.3 Operation of unit ..................... 23 Dimensions sheet ................... 23 Declaration of incorporation ............24 Waste disposal ................. 25 Scrapping ....................... 25 Disposal of waste electrical and electronic components ........
-
Page 5: General
General General Information relating to the installation instructions The classification of the contents is based on the life stages of the linear drive (here- inafter referred to as the “device”). The manufacturer reserves the right to make changes to the technical specifications stated in these installation instructions. In detail these can differ from the respective version of the device without the factual information being fundamentally changed and without losing their validity. The cur- rent status of the technical specifications can be requested from the manufacturer at any time. -
Page 6: Foreseeable Misuse
General If a direct or indirect hazard to personnel cannot be ruled out, additional meas- ures (e.g. covers, barriers, etc.) must be taken in order to minimise the potential risk accordingly. The operator alone is liable for any damage arising from the non-intended use of the device. -
Page 7: Customer Service Of The Manufacturer
If you have not purchased the device directly from elero, please contact the manufacturer of the machine or the supplier of the device. -
Page 8: Safety
Safety Safety General safety notices and directions These installation instructions contain all the safety notices and directions that must be observed in order to avoid and prevent dangers when working with the device in the individual life cycles. Safe use of the device is guaranteed when all the specified safety notices and directions are complied with. - Page 9 Safety The following table describes the symbols used in these installation instructions for the graphic display of danger situations in connection with the symbol for the danger level. Symbol Meaning Danger due to an electrical voltage, electric shock: This symbol refers to dangers associated with electrical currents.
-
Page 10: Safety Principles
Safety Safety principles The device is built according to state-of-the-art technology and the generally accepted rules of safety and it is safe to operate. The basic safety and health requirements of the applicable laws, standards, directives and guidelines have been applied in the construction of the device. The safety of the device is con- firmed by the Declaration of Incorporation. -
Page 11: General Duties Of The Plant Operator
Safety General duties of the plant operator The plant operator is obligated to use the device only in perfect and opera- ❏ tionally safe condition. He must ensure that, in addition to the safety notices and directions in the installation instructions, the generally accepted safety and accident prevention regulations, the specifications of DIN VDE 0100 and the provisions relating to environmental protection of the respective country of use, are heeded and complied with. -
Page 12: Safety Notices And Directions Relating To The Technical Condition
Safety Safety notices and directions relating to the technical condi- tion The device must be checked before installation for damage and proper ❏ condition. The plant operator is obligated to operate the device only in perfect and ❏ operationally safe condition. The technical condition must comply with the legal requirements at all times. -
Page 13: Safety Instructions Relating To Operation
Safety Safety instructions relating to operation The operator of the device is obligated to ensure the safe and proper state ❏ of the device before the initial start of operation. This is also necessary during operation of the device at regular intervals to ❏... -
Page 14: Product Description

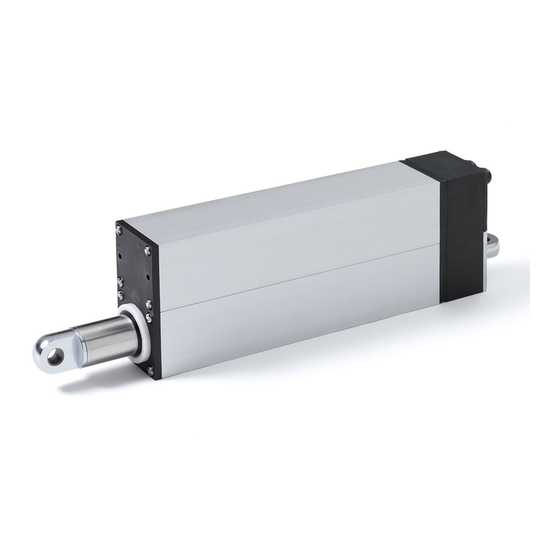

Product description Product description General The device is an electromechanical linear drive. It performs linear movements. Fig. 1 Components of the device Fastening on piston side Cover Programming button for electronic limit switch Housing cover Connections for the connecting cable Housing Fastening on housing side Product variants... -
Page 15: Technical Specifications
Technical specifications All information in this section relates to an ambient temperature of 20°C. 3.3.1 Summary of the technical parameters Technical specifications Compakt Rated voltage 400 V 3 AC, 50 Hz or 24 V DC Control power supply 24 V DC... -
Page 16: Information Relating To The Self-Locking Facility
Product description 3.3.2 Information relating to the self-locking facility WARNING Danger of injury through loss of the self-locking facility. Crushing and fatal injuries are possible. • Use device with a brake. CAUTION Possible damage to the device or customer’s machine through loss of the self- locking facility. -
Page 17: Installation
Installation Installation WARNING Danger of injury due to weathering influences. The skin may suffer frostbite or burns. • Wear personal protective equipment. WARNING Danger of injury due to incorrectly dimensioned mountings. Crushing and fatal injuries are possible. • Use only fastening materials that are suitable for the dimensions of the mountings. -
Page 18: Mechanical Fastening
Installation CAUTION Damage to the device due to the connecting rod jamming. • The linear path of the piston must be freely moveable at all times. • The pivoting range of the device must be kept free. CAUTION Damage to the device due to loss of the support and holding function. •... -
Page 19: Electrical Connection
Installation Electrical connection WARNING Danger of life-threatening injury due to faulty electrical connection. Electric shock possible. • Check the proper connection of the PE conductor prior to initial start of ope- ration. CAUTION Damage to the device due to faulty electrical connection. •... -
Page 20: Optional Attachments
Installation Optional attachments 4.3.1 Optional brake CAUTION Damage to the device due to incorrect connection of the brake. • Operate the device only when the brake is released. • Do not tap the brake voltage parallel to the motor. With the integrated brake you can decelerate the stroke movement of the con- necting rod faster and optimize the static safety. -
Page 21: Optional Analog Output (0 - 10 V)
We recommend therefore that the wear status be checked at regular intervals, e.g. after 8000 m operational performance of the device (Compakt 15 kN pull- push load with observance of all technical parameters) by the manufacturer to prevent hazardous situations. -
Page 22: Setting The Electronic Limit Switches
Installation Setting the electronic limit switches CAUTION Damage to the device due to a voltage failure during the programming proce- dure. • After a voltage failure during programming, check whether the limit positions have been deleted. The electronic limit switch is integrated into the drive. The device has non-adjustable absolute limit positions that have been program- med at the factory. -
Page 23: Teach-In Of The Limit Positions
Installation Permissible adjusting range of the limit switches: The limit switches “Retracted” and “Extended” can be adjusted via the total stro- ke. There is a means of adjusting the end positions from 0 to maximum stroke. In doing so, a minimum stroke of 10 mm has to be maintained. 4.4.1 Teach-in of the limit positions Factory setting:... -
Page 24: Displays In The Event Of Errors
Installation Teach-in of the limit position “Retracted” (green button): Traverse the drive to the desired position. Save the position by briefly pressing the green button. The green button lights up. The limit position “Retracted” is taught in. The green button goes out when the piston is moved away from the limit position. -
Page 25: Operation Of Unit
Installation The green and red buttons are flashing alternately: • An internal error has occurred in the electronic path acquisition. • To reset the error, briefly switch off the control voltage. • When the control voltage is reconnected the error will be reset. • If the alternate flashing occurs again, contact our technical customer service on this subject (see section 1.6 “Customer service of the manufacturer”). 4.4.3 Operation of unit CAUTION... -
Page 26: Declaration Of Incorporation
Declaration of incorporation Declaration of incorporation The complete declaration of incorporation can be downloaded from our website: www.elero-linear.de/downloads. -
Page 27: Waste Disposal
Waste disposal Waste disposal Scrapping When scrapping the device, comply with the internationally, nationally and re- gionally specific laws and regulations valid at that point in time. Ensure that the recycling capability, dismantling capability and separation capa- bility of the materials and subassemblies as well as the environmental and health dangers are all taken into consideration for the recycling and waste dis- posal. - Page 29 GmbH Naßäckerstraße 11 07381 Pößneck Germany +49 3647 46 07-0 +49 3647 46 07-42 info@elero-linear.de www.elero-linear.com...
