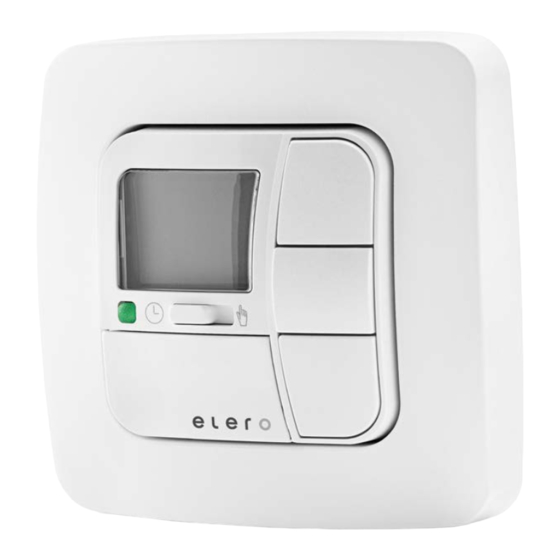

elero AstroTec 28 060.0001 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. elero Manuals
  4. Controller
  5. AstroTec 28 060.0001
  6. Operating instructions manual

elero AstroTec 28 060.0001 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

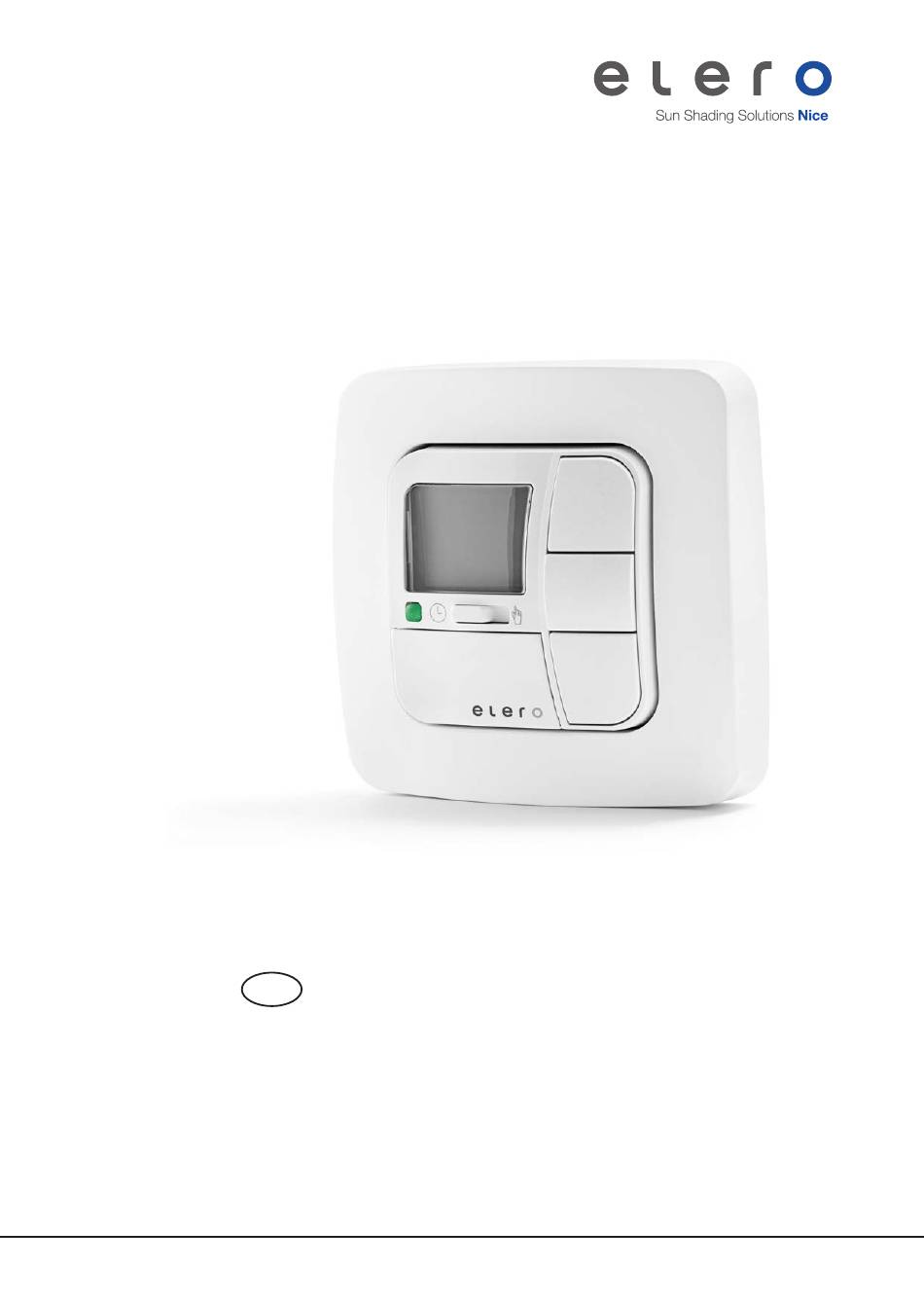

AstroTec
Nr. 28 060.0001
EN
Operating instructions (translation)
Please keep these instructions in a safe place.
Timer is preprogrammed
181003201_EN_0215

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AstroTec 28 060.0001 and is the answer not in the manual?

Questions and answers

Related Manuals for elero AstroTec 28 060.0001

Summary of Contents for elero AstroTec 28 060.0001

  • Page 1 AstroTec Nr. 28 060.0001 Operating instructions (translation) Please keep these instructions in a safe place. Timer is preprogrammed 181003201_EN_0215...

  • Page 2: Table Of Contents

    Contents Safety instructions ......... . 3 Explanation of displays and buttons .
  • Page 3 Contents Programming menu Overview of menu ........19 Date and time settings .

  • Page 4: Safety Instructions

    VDE 100 must be observed for system instal- lation. • For use in dry rooms only. • Use unmodified elero original parts only. • Keep persons away from the systems guide track. • Keep children away from controls. • Always comply with national stipulations.

  • Page 5: Explanation Of Displays And Buttons

    Explanation of displays and buttons Explanation of displays and buttons Buttons under the cover Display symbols EN | 5...

  • Page 6: General Information

    General / Designated use General The AstroTec, delivered from the factory with current date and time settings (GMT), automatically controls the drive at the astro times (sunrise and sundown). The AstroTec can be operated manually at any time. The easy-to-install light sensor allows the AstroTec to be extended to include a convenient sunshade function (shading plants and furniture).

  • Page 7: Installation/Connection

    Installation / connection Installation Connection as a drive controller For details on suitable control systems, please refer to the con- trol product catalogue. Risk of injury by electric shock! • Terminal connections must be carried out by an autho- rised electrician! Warning! •...

  • Page 8: Connection As A Group Controller

    Connection Connection as a group controller You can find the structure of a controller on elero.com in the download area under „Installation instructions and circuit dia- grams“. Risk of injury by electric shock! Warning! • Terminal connections must be carried out by an authorised electrician! 1.

  • Page 9: Initial Operation

    Initial operation / Factory settings Initial operation To activate the AstroTec timer, touch any button on the device. To select the language required use the +/- buttons and confirm your selection with the OK button. The AstroTec is now in automatic operating mode.

  • Page 10: Light Sensors

    Light sensors/Explanation of functions Light sensors Note: If you wish to connect a light sensor to the AstroTec, the instructions provided with the light sensor must be followed. Explanation of functions MAN/AUTO sliding switch In the “MAN ” sliding switch setting, only manual command controls and alarm signals are executed.

  • Page 11: Explanation Of Functions

    Explanation of functions +/- buttons The following operations are possible using the + and - buttons: • Menu  change value • Auto mode  request information • + button  next automatic switching time ▲ • – button  next automatic switching time ▲ + button and OK button ...

  • Page 12: Programme

    Explanation of functions Programme PROGRAMME The PROGRAMME menu allows you to set various switching times: 1. PROG1 • Astro , astro evening, individual o Week (1-7) o Block 1/2 (1-5 and 6,7) o Individual (1, 2, 3, 4, 5, 6, 7) 2.

  • Page 13: Astro, Astro Evening, Individual

    Explanation of functions ASTRO The AstroTec automatically controls your roller shutters or blinds at the pre-set sunrise and sunset times. These times are used as guidelines. ASTRO EVENING Shutters are raised according to the set switching time. Shutters are lowered according to the astro function. INDIVIDUAL Triggers the up and down control commands according to the switching times you have set.
  • Page 14 Explanation of functions WEEK Using the WEEK menu, you can set the same switching times from Monday – Sunday (1-7). BLOCK Using the BLOCK menu, you can set two blocks. Block 1: sets the switching times for Monday – Friday (1-5). Block 2: sets the switching times for Saturday and Sunday (6,7).
  • Page 15 Explanation of functions SWITCHING TIME Automatic switching times for roller shutters and blinds to be raised and lowered. OFFSET An additional switching time ▲ can be programmed using the OFFSET menu. This depends on the PROG 1 switching time ▲ (max.

  • Page 16: Holiday Function, End Limit

    Explanation of functions SETTING The SETTING menu gives you the following options: • HOLIDAY • SUN (when sensor is connected) • TWILIGHT SETTING (when sensor is connected) • INTERMEDIATE POSITION • VENTILATION/REVERSE • PROG 1 (END LIMIT, INTERMEDIATE POSITION, VENTILATION/REVERSE) •...

  • Page 17: Intermediate Position, Ventilation/Reverse

    Explanation of functions INTERMEDIATE POSITION The intermediate position is a position of the roller shutter/blind between the upper and lower limits that can be freely selected. This position can also be reached from the upper position after programming. Press the DOWN button twice in rapid succession to move to the intermediate position.

  • Page 18: Language Selection, Astro Shift, City Selection, Automatic Summer/Winter Time Changeover

    Explanation of functions Language (ENGLISH GB) You can select your national language.. ASTRO SHIFT With the astro shift setting, the astro time ▲ and astro time ▲ can be shifted independently of one another (max. +/- 120 mins.). City (LONDON when the language is set to ENGLISH GB) This allows you to precisely adapt the astro function to your location.

  • Page 19: • Drive Controller/Group Controller

    Explanation of functions FUNCTION This mode is only intended for qualified electricians! (Will only appear when the operating device is disconnected) The FUNCTION menu gives you the option of setting the following functions: • ROLLER SHUTTER/BLIND (select either shutter or blind) •...

  • Page 20: Overview Of Menu

    Programming Main menu (Overview of the menu) 1. Press the MENU button until TIME/DATE appears. 2. To select further menus, press the +/- buttons. 3. Press the MENU button to switch to operating mode. TIME/DATE (to set the time and date) 1.

  • Page 21: Period

    Programming PROGRAMME PROG 1/ASTRO WEEK (Astro function for week + idle period ▲▼) PROG 1/ASTRO BLOCK (Astro function for block1/2 + idle period ▲▼) PROG 1/ASTRO INDIVIDUAL (Astro function for individual + idle period ▲▼) 1. Press the MENU button. 2.

  • Page 22: Switching Time ▲ And Idle Period

    Programming WEEK Press +/- for the WEEK menu level (1-7). All further entries now refer to every day of the week. Confirm by pressing OK. 8. 8. Now set the IDLE PERIOD ▲ and IDLE PERIOD ▲ using the +/- buttons.
  • Page 23 Programming 4. Confirm by pressing OK. ASTRO EVENING appears. 5. Confirm by pressing OK. 6. Now select the PROG1 ASTRO function you require using +/- : WEEK Press OK for the WEEK menu level (1-7). All further entries now refer to every day of the week. Confirm by pressing OK.

  • Page 24: Week/Block/Individual

    Programming PROGRAMME PROG 1/INDIVIDUELL WEEK (Individual switching time ▲▼ for week) PROG 1/INDIVIDUELL BLOCK (Individual switching time ▲▼ for block1/2) PROG 1/INDIVIDUELL INDIVIDUAL (Individual switching time ▲▼ for individual day) 1. Press the MENU button. 2. To select the PROGAMME menu, press the + button until PROGAMME appears 3.

  • Page 25: Week/Block/Individual

    Programming INDIVIDUAL Press +/- for the INDIVIDUAL menu level (1,2,3,4,5,6,7). All further entries now refer to every individual day of the week. Confirm by pressing OK. 8. Now set the SWITCHING TIME ▲ and the SWITCHING TIME ▲ using the +/- buttons. Confirm your entry by pressing OK.
  • Page 26 Programming 7. Now select the PROG2 INDIVIDUAL function you require using the +/- buttons: BLOCK Press +/- for the BLOCK menu level (BLOCK 1 (1-5), BLOCK 2 (6,7)). All further entries now refer to BLOCK 1 (1-5) and BLOCK 2 (6,7). Confirm by pressing OK.

  • Page 27: Ventilation Position

    Programming PROGRAMME PROG 2/OFFSET (e.g. shutters are lowered to ventilation position in the evening) 1. Press the MENU button. 2. To select the PROGAMME menu, press the + button until PROGAMME appears. 3. Confirm by pressing OK. 4. Press the + button until PROG2 appears. 5.

  • Page 28: Holiday Function, Sun /Twilight Function

    Programming SETTING HOLIDAY, LIGHT SENSOR (Holiday OFF/ON, sun/twilight setting) 1. Press the MENU button. 2. To select the SETTING menu, press the + button until SETTING appears. 3. Confirm by pressing OK. HOLIDAY ON/OFF will appear. 4. You can set the holiday function to ON or OFF by pressing the +/- button.

  • Page 29: Reverse/End Limit Position)

    Programming SETTING INTERMEDIATE POSITION, VENTILATION/REVERSE, PROG 1 END LIMIT (Time/ position programming) You have confirmed the HOLIDAY/ LIGHT SENSOR menu levels. INTERMEDIATE POSITION will appear. 1. You can set the switching time to move to the INTERMEDIATE POSITION using the +/- button. The switching time is indica- ted in a few seconds or you can move to the INTERMEDIATE POSITION from the upper end limit using the UP/DOWN button.

  • Page 30: End Limit Position)

    Programming SETTING PROG 2 END LIMIT (Time/position programming) Note: This dialog window will only be displayed if a time is set in PROG2. You have confirmed the PROG1 END LIMIT menu level. PROG2 END LIMIT will appear. 1. You can select PROG 2 END LIMIT, PROG 2 INTERMEDIATE POSITION and PROG 2 VENTILATION/REVERSE using the +/- button 2.

  • Page 31: Language Selection, Astro Shift

    Programming SETTING ENGLISH GB/ASTRO SHIFT ▲▼ (Language, astro shift) Note: The TEST MODE menu level will only be displayed if a light sensor is connected to the device. You have confirmed the PROG2 END LIMIT menu level. TEST MODE ON/OFF will appear. 1.

  • Page 32: Time Zone)

    Programming 7. You can set the required astro shift ▼ (max. +/- 120 mins.) using the +/- button. 8. Confirm by pressing OK. The function ASTRO SHIFT ▼ has now been set. Please read on for further programming options using the SETTING menu SETTING (City, EXPERT MODE (LONGITUDE, LATITUDE, TIME ZONE))

  • Page 33: Automatic Summer/Winter Time Changeover

    Programming Note: These dialog windows (LONGITUDE, LATITUDE, TIME ZONE) are only displayed when the EXPERT MODE in the function menu is ON. 3. You can set the degrees LONGITUDE using the +/- button. 4. Confirm by pressing OK. LATITUDE will appear. 5.

  • Page 34: Function (For Qualified Staff Only!)

    Programming FUNCTION (only when the operating device is disconnected, only for qualified electricians) ROLLER SHUTTER/BLIND, DRIVE CONTROLLER/GROUP CONTROLLER, RUNNING TIME (Selection of shutter/blind, selection of the drive controller/ group controller, running time of the roller shutter/blind) 1. Press the MENU button. 2.

  • Page 35: Alarm Signals

    Programming FUNCTION (only when the operating device is disconnected, only for qualified electricians) EXTERNAL ON/OFF/SWITCH, ALARM SIGNAL ON/OFF (Processing external signals, processing alarm signals) You have confirmed the RUNNING TIME function. EXTERNAL ON will appear. (EXTERNAL ON/ OFF/ SWITCH describes the external control signals.
  • Page 36 Programming FUNCTION (only when the operating device is disconnected, only for qualified electricians) INITIAL OPERATION, RELAY, TOTAL RUNNING TIME (Date of initial operation, relay switching rate, total running time) You have confirmed the ALARM SIGNAL ON/OFF. EXPERT MODE OFF/ON will appear. 1.

  • Page 37: Technical Data

    Technical data / Battery replacement/ Cleaning Technical data Nominal voltage 230-240 V AC / 50-60 Hz Switched current 5 A /250 V AC for cos j =1 Battery type CR 2032 System of protection IP 20 Protection class The protection class II is guaranteed only after a correct installation.

  • Page 38: Troubleshooting

    Troubleshooting Troubleshooting Problem Cause Remedy Drive is not Faulty connection. Check the connection. functioning. ▲ Drive moves is wrong Faulty connection. Exchange and ▼ direction. wires in the power supply unit. Astro programme 1. Date is incorrect. 1. Set correct date. doesn’t function 2.
  • Page 39 General declaration of conformity elero hereby declares that the AstroTec is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following Internet address: www.elero.com/downloads-service EN | 39...
  • Page 40 GmbH Antriebstechnik Maybachstr. 30 73278 Schlierbach info@elero.de www.elero.com 309022...
